Omron H3YN-21 AC200-230, H3YN Series DIN Rail, Panel Mount Timer Relay, 200 → 230V ac, 2-Contact, 0.1 min → 10h, DPDT

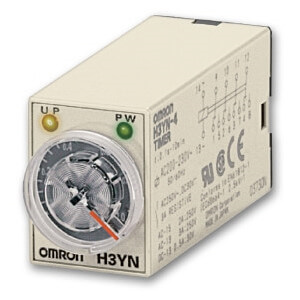

Name: Omron H3YN-21 AC200-230, H3YN Series DIN Rail, Panel Mount Timer Relay, 200 → 230V ac, 2-Contact, 0.1 min → 10h, DPDT
Brand: OMRON
SKU: H3YN-21 AC200-230
Availability: OutOfStock

Part Number : H3YN-21 AC200-230

Timer, plug-in, 8-pin, multifunction, 0.1min to 10h long time range model, DPDT, 200-230 VAC supply voltage

Availability: Sold out

Detailed Description
Specifications
Features

Omron H3YN Series Timer Relay, DPDT Contact Configuration, 200 to 230V AC Supply Voltage - H3YN-21 AC200-230

This timer relay is designed for efficiency in various automation tasks. Its compact dimensions of 63mm depth and 28mm length make it suitable for DIN rail and panel mounting. With a supply voltage range of 200 to 230V AC, it provides versatility across different electrical configurations. Key features include a DPDT contact configuration and multiple operating modes.

Features & Benefits

• Multiple operational modes enhance application flexibility
• User-selectable time ranges from 0.1s to 10min or 1min to 10hr
• External power supply ensures stable performance
• Plug-in design simplifies installation and maintenance
• Operating temperature range of -10 to +50°C for consistent performance
• Conforms to EN 61812-1 for safety and quality assurance

Applications

• Utilised in industrial automation systems
• Ideal for controlling machinery and equipment timing
• Employed in process control to manage intervals
• Suitable for electrical panel with space constraints
• Used in production lines requiring precise timing adjustments

Can it operate under extreme temperatures?

Yes, it functions well from -10°C to +50°C.

Will it support various contact types?

Yes, it features a DPDT contact configuration.

Is it easy to install and maintain?

The plug-in design facilitates quick installation and maintenance.

Can the user adjust the timer settings?

Yes, it offers user-selectable time ranges through DIP switches.

Brand	Omron
Supply Voltage	200 → 230V ac
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Time Range	0.1 min → 10h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Hours, Minutes
Maximum Current	5A
Maximum Voltage	250V ac
Switch Configuration	DPDT
Terminal Type	Plug In
Power Supply	External
Width	21.5mm
Series	H3YN
Depth	63mm
Maximum Operating Temperature	+50°C
Length	28mm
Minimum Operating Temperature	-10°C

Timer, plug-in, 8-pin, multifunction, 0.1min to 10h long time range model, DPDT, 200-230 VAC supply voltage
