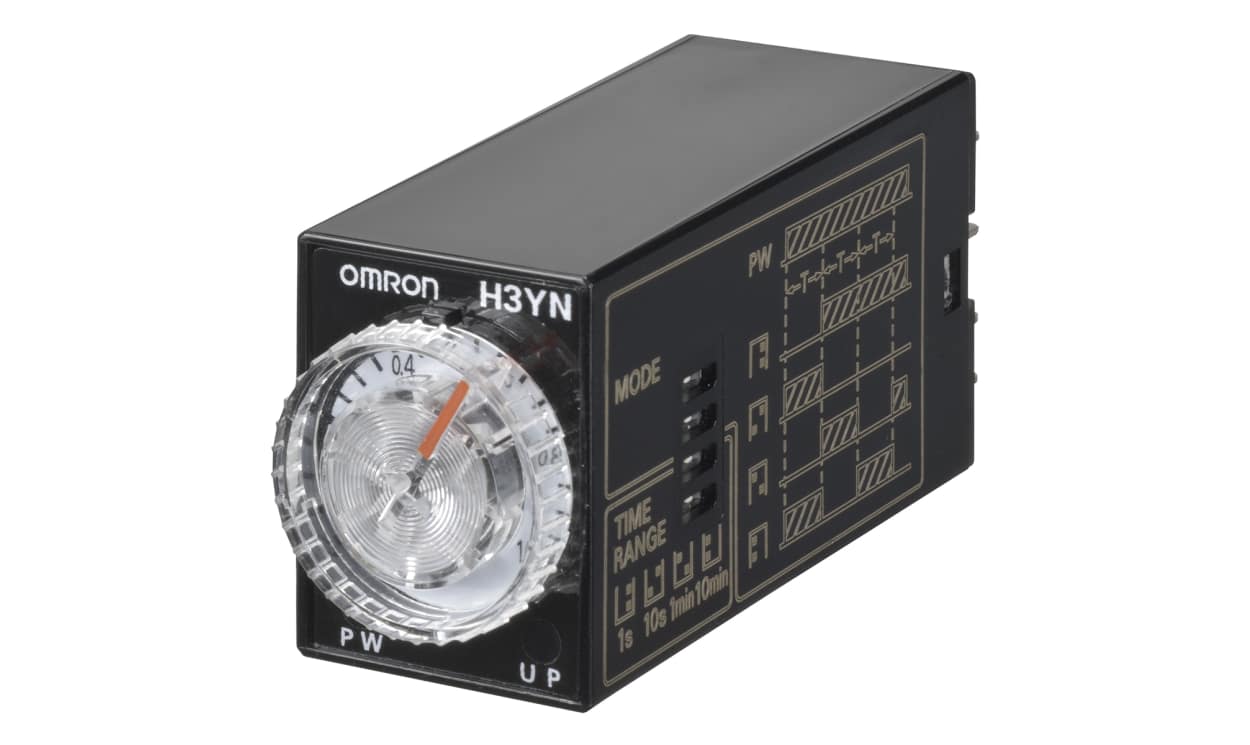

Omron H3YN-21-B 100-120VAC, H3YN Series Panel Mount Timer Relay, 100 → 120V ac, 4-Contact, 0.1 min → 10h, DPDT

Name: Omron H3YN-21-B 100-120VAC, H3YN Series Panel Mount Timer Relay, 100 → 120V ac, 4-Contact, 0.1 min → 10h, DPDT
Brand: OMRON
SKU: H3YN-21-B 100-120VAC
Availability: OutOfStock

Part Number : H3YN-21-B 100-120VAC

Availability: Sold out

Detailed Description
Specifications

Miniature Multi function Solid State Timer- H3YN Series

Miniature timers with multiple time ranges and operating modes.

• 8 or 14-pin models available
• Multiple operating modes
• Black design
• Power supply terminals on top and contact output terminals on bottom
• Pin configuration compatible with MY power relay
• Wide supply voltage range
• Plug-in terminal

Brand	Omron
Supply Voltage	100 → 120V ac
Mounting Type	Panel Mount
Mode of Operation	Delay ON, Flicker OFF Start, Flicker ON Start
Time Range	0.1 min → 10h
Number of Contacts	4
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Hours, Minutes
Maximum Current	5A
Maximum Voltage	250V ac
Terminal Type	Push In
Switch Configuration	DPDT
Width	56.6mm
Power Supply	External
Maximum Operating Temperature	+55°C
Series	H3YN
Length	21.5mm
Depth	28mm
Minimum Operating Temperature	-10°C
