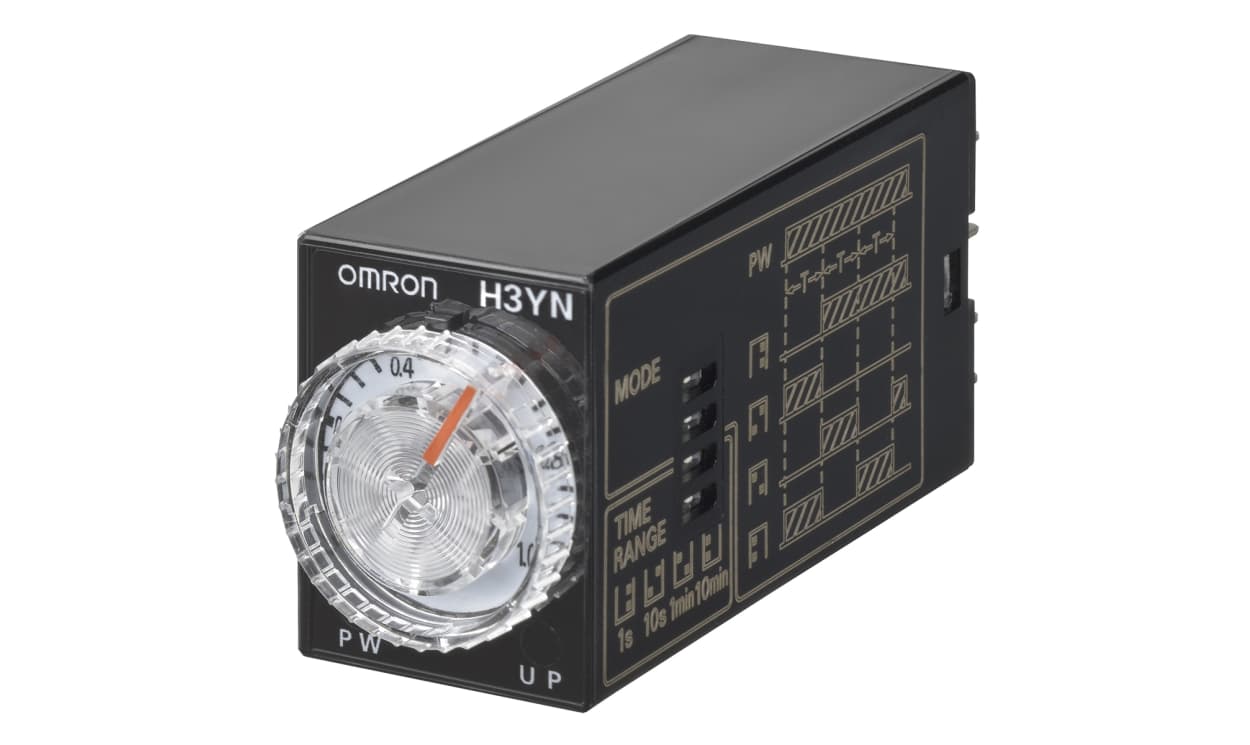

OMRON H3YN-4-B DC12 | Panel Mount Multifunction Timer Relay | 12 V DC, 0.1 s–10 min, 4PDT
Part Number : H3YN-4-B DC12
Covering a 0.1 s to 10 min time range, the OMRON H3YN-4-B DC12 H3YN series panel mount multifunction timer relay runs on a 12 V DC supply. The H3YN-4-B DC12 provides 4PDT output and a 3 A maximum current rating.
- Timing modes: Delay ON, Flicker OFF Start, Flicker ON Start
- Push-in terminals
- Contact material: Gold Plated
- Dimensions: 56.6 mm wide, 21.5 mm long and 28 mm deep (as listed)
- Maximum operating temperature +55 °C
For pricing, please contact our experts.
