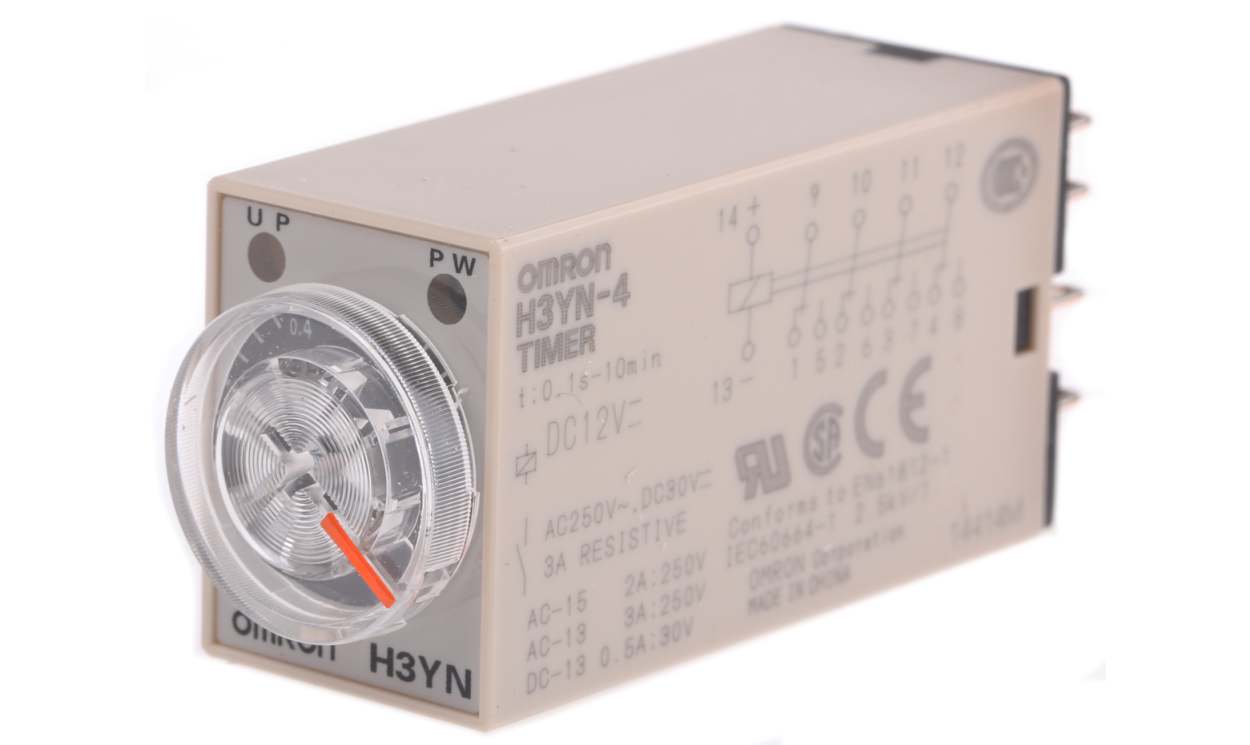

Omron H3YN-4 DC12, H3YN Series DIN Rail, Panel Mount Timer Relay, 12V dc, 4-Contact, 0.1 s → 10min

Name: Omron H3YN-4 DC12, H3YN Series DIN Rail, Panel Mount Timer Relay, 12V dc, 4-Contact, 0.1 s → 10min
Brand: OMRON
SKU: H3YN-4 DC12
Availability: OutOfStock

Part Number : H3YN-4 DC12

Availability: Sold out

Detailed Description
Specifications

Omron H3YN Series Timer Relay, 12V DC, 4PDT - H3YN-4 DC12

This timer relay is designed for versatile automation applications, offering dynamic functionality in a compact form. It operates on a 12V DC power supply and features a DIN rail or panel mounting option. With a width of 21.5mm and a depth of 63mm, it provides a space-efficient solution for timing control.

Features & Benefits

• Supports flexible timing modes including ON delay and flicker start
• Adjustable time range from 0.1s to 10min
• Conforms to EMC standards for reliable operation
• Clear time setting knob aids in precise adjustments
• Multi-function capabilities effectively reduce inventory needs

Applications

• Ideal for timing functions in industrial automation systems
• Utilised for sequential control in conveyor systems
• Suitable for flicker in lighting circuits
• Can be used in HVAC systems for operational timing

What are the various modes of operation available with this timer relay?

The timer relay offers multiple modes including ON delay, flicker OFF start, flicker ON start, and interval, allowing customisation based on application needs.

How is the timer relay mounted in different setups?

It is designed for versatile mounting options, allowing for both DIN rail and panel mounting to suit various installation environments.

Can the timer handle different voltage ranges?

This specific model operates at a precise supply voltage of 12V DC, making it suitable for low-voltage applications in automation settings.

What is the maximum electrical load that can be managed through this device?

It can handle a maximum current of 3A at a voltage of up to 250V AC, ensuring compatibility with most electrical applications.

Brand	Omron
Supply Voltage	12V dc
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Time Range	0.1 s → 10min
Number of Contacts	4
Number of Timer Functions	Multi Function
Time Increment	Minutes, Seconds
Maximum Current	3A
Maximum Voltage	250V ac
Terminal Type	Socket
Switch Configuration	4PDT
Width	21.5mm
Power Supply	External
Length	28mm
Series	H3YN
Depth	63mm
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-10°C
Time Delay	0.1s
