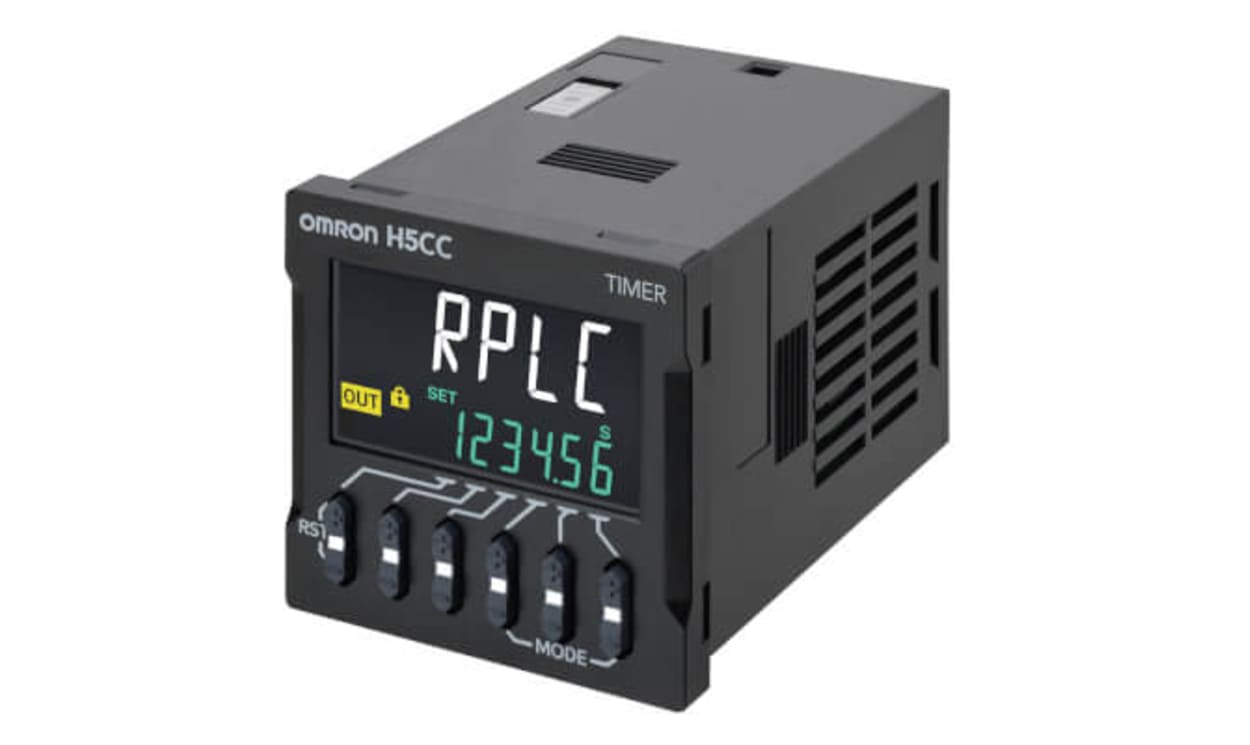

OMRON H5CC-L8E | Flush Mount Timer Relay | 100–240 V, 2 x SPDT

Name: OMRON H5CC-L8E | Flush Mount Timer Relay | 100–240 V, 2 x SPDT
Brand: OMRON
SKU: H5CC-L8E
Availability: InStock

Part Number : H5CC-L8E

The OMRON H5CC-L8E is an H5CC series flush mount timer relay for a 100 to 240 V supply. On the H5CC-L8E you get 2 x SPDT output.

Operating mode: Time Limit Operation
Two timer functions

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron H5CC Digital Timer equipped with New and improved design for easier use, programming, maintenance and user feedback. The improved user interface is intuitive and offers better overall visibility. Replacement time notification function notifies the user of potential preventive maintenance. The white color display offers better visual clarity and visibility and the color universal design is used. Up and Down Keys are provided for all six digits, which reduces the number of button operations during setup and other processes.

Easy operation is realized by the operation guide on which each key lights up
Replacement time is notified in advance by predicting the service life
Body depth of all models with screw terminals has been reduced to 59 mm
Equipped with the Output ON OFF inversion function

Brand	Omron
Supply Voltage	100 → 240V
Mounting Type	Flush Mount
Mode of Operation	Time Limit Operation
Time Range	0.001s → 999999hh
Number of Timer Functions	2
Contact Configuration	2 x SPDT
Series	H5CC

OMRON H5CC-L8E | Flush Mount Timer Relay | 100–240 V, 2 x SPDT

DOWNLOAD CATALOG
