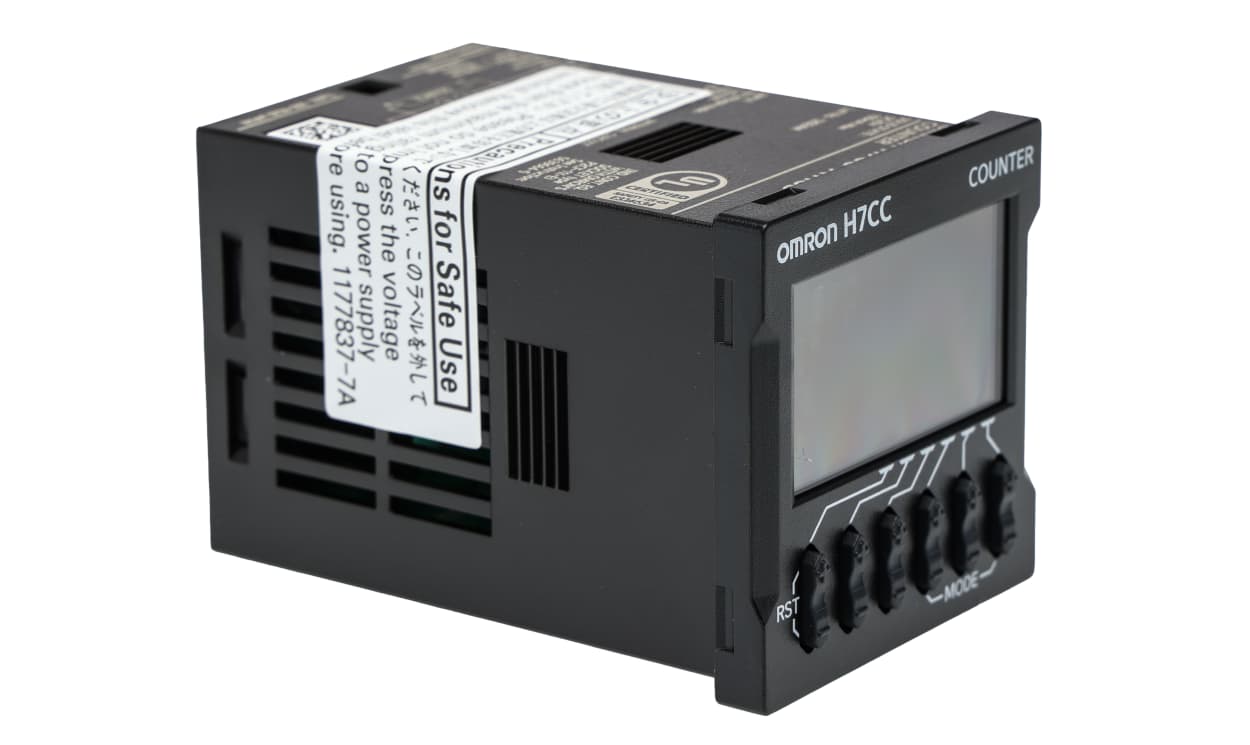

OMRON H7CC-A11SD | H7CC Counter | 6-Digit Backlit LCD, 12 to 48 V DC / 24 V AC, Plug-In

Name: OMRON H7CC-A11SD | H7CC Counter | 6-Digit Backlit LCD, 12 to 48 V DC / 24 V AC, Plug-In
Brand: OMRON
SKU: H7CC-A11SD
Availability: InStock

Part Number : H7CC-A11SD

The OMRON H7CC-A11SD is an H7CC series counter with a backlit six-digit LCD, supplied from 12 to 48 V DC or 24 V AC. It has a plug-in connection, takes no-voltage inputs and is 63.7 mm deep. Full ratings and dimensions are given in the OMRON datasheet.

12 to 48 V DC or 24 V AC supply
Backlit 6-digit LCD
No-voltage input
Plug-in connection
63.7 mm depth

Availability: low stock

Detailed Description
Specifications
Downloads

Omron H7CC Series Digital Counter, 12 to 48 V DC Supply Voltage, 6 Digit Display Type - H7CC-A11SD

This digital counter is designed for precision and ease of use in industrial applications. Its compact dimensions of 48mm x 48mm x 63.7mm make it suitable for various mounting options. With a high-resolution LCD display, it efficiently displays counts ranging from -99999 to +999999, keeping track of critical measurements in your automation processes.

Features & Benefits

• Features a backlit display for visibility in low-light conditions
• Accommodates DC and AC voltage inputs for versatility
• Plug-in connection type simplifies installation and maintenance
• Operates effectively in temperatures between -10°C and +55°C
• Supports a six-digit format for precise data tracking

Applications

• Utilised in automated production lines for monitoring counts
• Ideal for electrical panels where space is at a premium
• Effective in machinery to track operational cycles
• Used in control systems for real-time measurement feedback

What voltage types can be accommodated?

It supports both DC voltage ranges from 12 to 48 V and 24V AC, providing flexible integration into existing systems.

How does the backlighting feature enhance usability?

The backlighting ensures clear readability of the display, even in dimly lit environments, making it reliable for continuous use in various settings.

What considerations are there for installation?

The plug-in connection ensures straightforward setup, allowing quick replacement or maintenance without complex wiring, which saves time.

Can the display frequency be adjusted for different applications?

This model has a maximum count frequency of 30Hz, which is optimal for tracking fast-paced operations without lag or data loss.

Brand	Omron
Supply Voltage	12 → 48 V dc, 24 V ac
Display Type	LCD
Function	Counter
Input Type	No Voltage
Connection Type	Plug-In
Number of Digits	6
Backlighting	Yes
Maximum Count Frequency	50 → 60Hz
Depth	63.7mm
Series	H7CC
