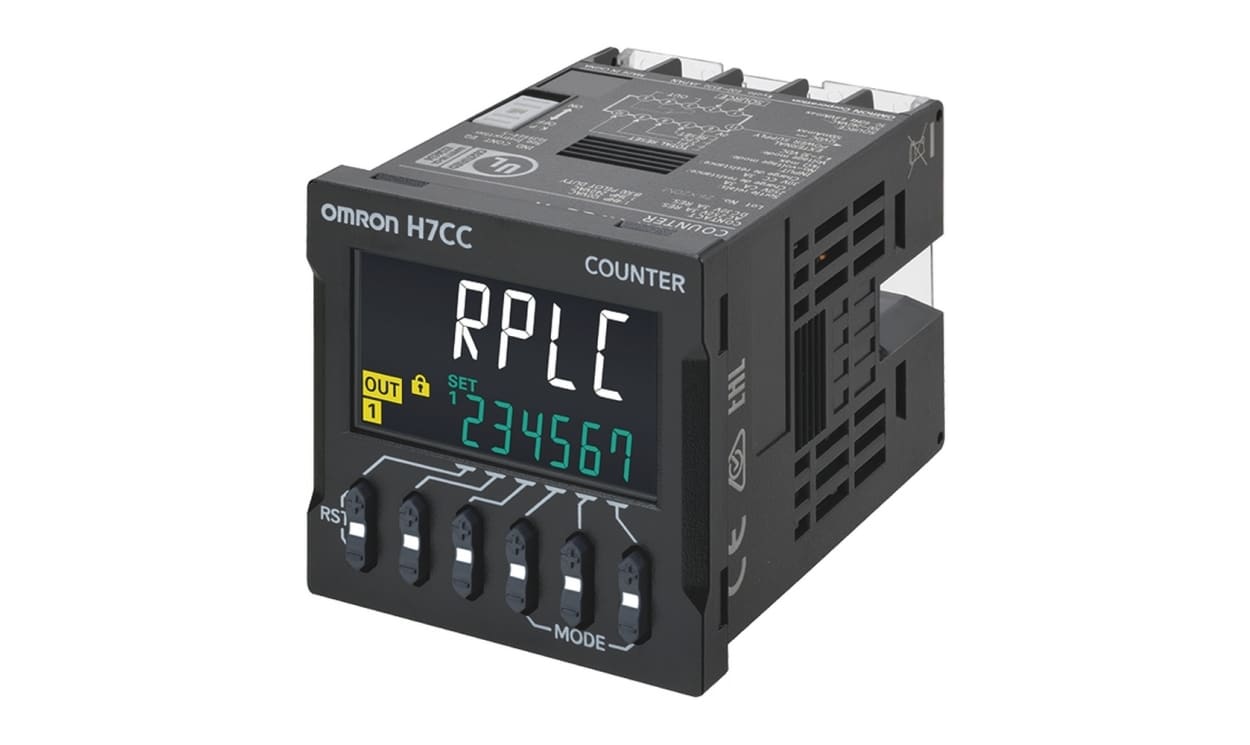

OMRON H7CC-A8 | H7CC Counter | 6-Digit LCD, Relay Output, 100 to 240 V AC

Name: OMRON H7CC-A8 | H7CC Counter | 6-Digit LCD, Relay Output, 100 to 240 V AC
Brand: OMRON
SKU: H7CC-A8
Availability: InStock

Part Number : H7CC-A8

OMRON's H7CC-A8 is an H7CC series counter with a backlit six-digit LCD and relay output, running on 100 to 240 V AC. It fits a 48 x 48 mm cutout, lists ±0.1% meter accuracy and carries CE and UL approvals.

100 to 240 V AC supply
Relay output, no-voltage input, plug-in
Backlit LCD, 10 mm digits, -99999 to 999999
48 x 48 mm cutout
±0.1% meter accuracy
CE, UL; -10 to +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron H7CC Series Digital Counter, 100-240V AC Supply Voltage, 6 Digits - H7CC-A8

This digital counter is a versatile device designed for precise counting applications in various industrial settings. Featuring a six-digit display with an LCD format, this surface mount counter operates efficiently within a supply voltage range of 100 to 240 V AC. With backlighting included, it ensures clear visibility in different lighting environments.

Features & Benefits

• High accuracy with a tolerance of ±0.1% ensures reliable readings
• Maximum count frequency of 50 to 60 Hz meets diverse operational needs
• Dual temperature resilience, with operational limits from -10°C to +55°C
• Easy plug-in connection simplifies installation and maintenance
• Integrated relay output allows seamless integration with other systems

Applications

• Utilised in production line counting and monitoring
• Suitable for inventory management in warehouses
• Applied in automation systems to track cycles or events
• Used for metering tasks in mechanical and electrical industries

What input types does this counter support, and how does that affect its usage?

It operates on a no voltage input type, allowing it to be used in various environments without the concern of wiring complications, making installation straightforward and flexible across different applications.

How does the display technology enhance user experience?

An LCD display ensures that readings are clear and easy to interpret, even in varying lighting conditions, enabling users to quickly assess data without strain.

What installation considerations should be taken into account when using this counter?

The device is designed for surface mounting with a standard cutout of 48mm, which simplifies integration into existing panels and equipment while maximising space efficiency.

Brand	Omron
Supply Voltage	100 → 240 V ac
Display Type	LCD
Input Type	No Voltage
Function	Counter
Connection Type	Plug-In
Number of Digits	6
Mounting Type	Surface Mount
Output / Interface	Relay
Digit Height	10 mm
Backlighting	Yes
Maximum Count Frequency	50 → 60Hz
Display Range	-99999 → 999999
Cutout Size	48 x 48 mm
Series	H7CC
Meter Accuracy	± 0.1%
Cutout Height	48mm
Minimum Operating Temperature	-10°C
Approvals	CE, UL
Maximum Operating Temperature	+55°C

OMRON H7CC-A8 | H7CC Counter | 6-Digit LCD, Relay Output, 100 to 240 V AC

DOWNLOAD CATALOG

H7CC-A8 Brochure - Improved Design for Better Visibility and Clarity A700000013470507
