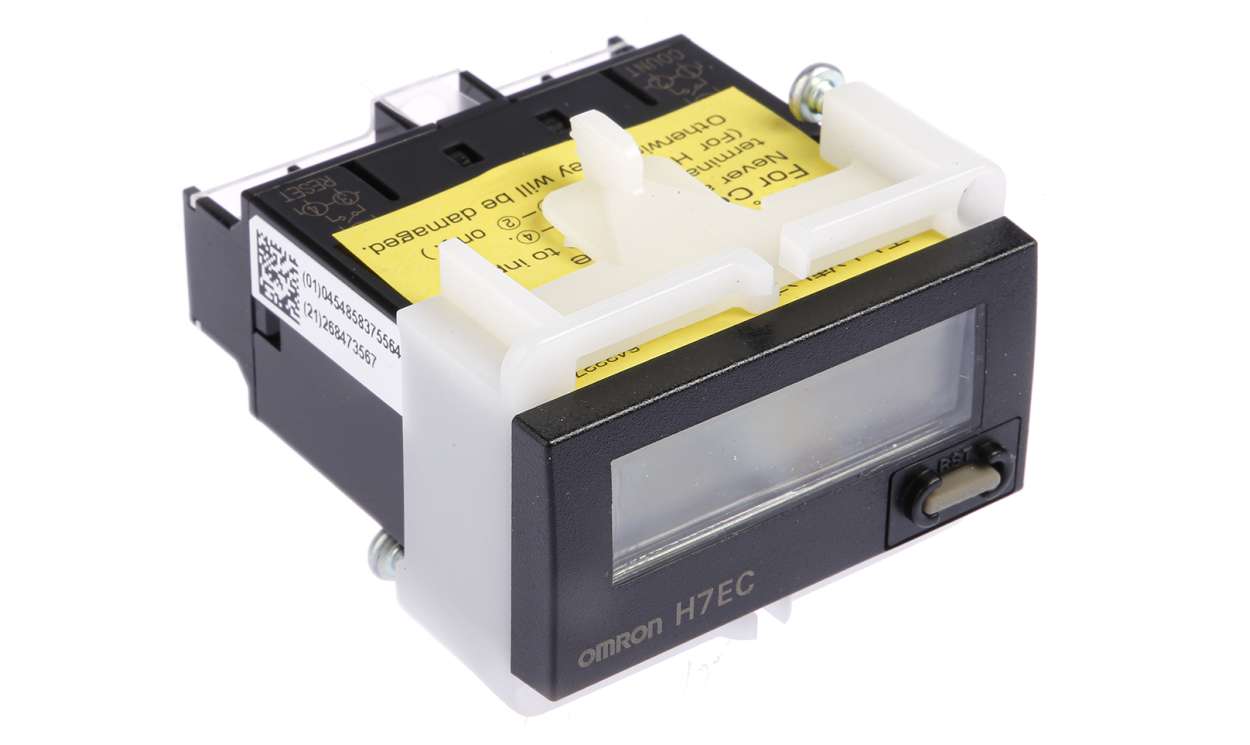

OMRON H7EC-N-B | H7EC Counter | 8-Digit LCD, No-Voltage Input, 1 kHz, Panel Mount

Name: OMRON H7EC-N-B | H7EC Counter | 8-Digit LCD, No-Voltage Input, 1 kHz, Panel Mount
Brand: OMRON
SKU: H7EC-N-B
Availability: InStock

Part Number : H7EC-N-B

OMRON's H7EC-N-B is an H7EC panel-mount counter with an eight-digit LCD of 8.6 mm digit height. It takes no-voltage input, counts at up to 1 kHz and uses screw connections with manual reset.

8-digit LCD, 8.6 mm digits, no backlight
No-voltage input
1 kHz maximum count frequency
Panel mount, screw connection, manual reset
48.5 mm depth, 60 g
Operating temperature -10 to +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron H7EC Series Counter, Screw Connection, Panel Mount - H7EC-NFV-B

This counter is an essential device for monitoring and measuring electrical parameters in various environments. Its user-friendly design makes it a solid choice for professionals in automation, electronics, and electrical sectors. The LCD display provides clear visibility for precise readings ranging from 0 to 99999999, which is vital in settings where accuracy is important.

Features & Benefits

• Manual reset function allows for versatile counting control
• Screw connection type offers secure installation
• User-friendly LCD screen facilitates easy reading in diverse conditions
• High maximum count frequency of 20Hz enhances monitoring efficiency
• CE approved, ensuring compliance with safety standards

Applications

• Monitoring electrical consumption in industrial environments
• Ideal for panel mounting in control systems and dashboards
• Suited for part counting on mechanical assembly lines
• Useful for voltage measurement in electrical testing scenarios

How easy is it to install in a panel?

Installation is straightforward thanks to its screw connection design, ensuring stability.

What is the reset method for the count?

The counter uses a manual reset method, allowing users to restart counting as required.

Can it display readings in dim lighting?

Yes, the backlit LCD improves visibility even in low-light conditions.

What voltage range can it operate on?

It functions within a voltage range of 24 to 240V AC/DC, making it adaptable for various applications.

Is it suitable for high-frequency applications?

Yes, it accommodates a maximum counting frequency of 20Hz, suitable for most high-frequency counting tasks.

Omron Panel Mounting 24 x 48

All units are resettable. Panel cut out is 22 x 45 with the front fascia sealed to IP65 and has an operating temperature range of -10 to +55°C

Brand	Omron
Count Mode	Counter
Display Type	LCD
Function	Counter
Input Type	No Voltage
Connection Type	Screw
Reset Method	Manual
Number of Digits	8
Mounting Type	Panel Mount
Output / Interface	Voltage
Digit Height	8.6 mm
Backlighting	No
Maximum Count Frequency	1kHz
Depth	48.5mm
Weight	60g
Maximum Operating Temperature	+55°C
Series	H7EC
Meter Type	Counter/Preset Counter
Minimum Operating Temperature	-10°C
Maximum Temperature	+55°C
