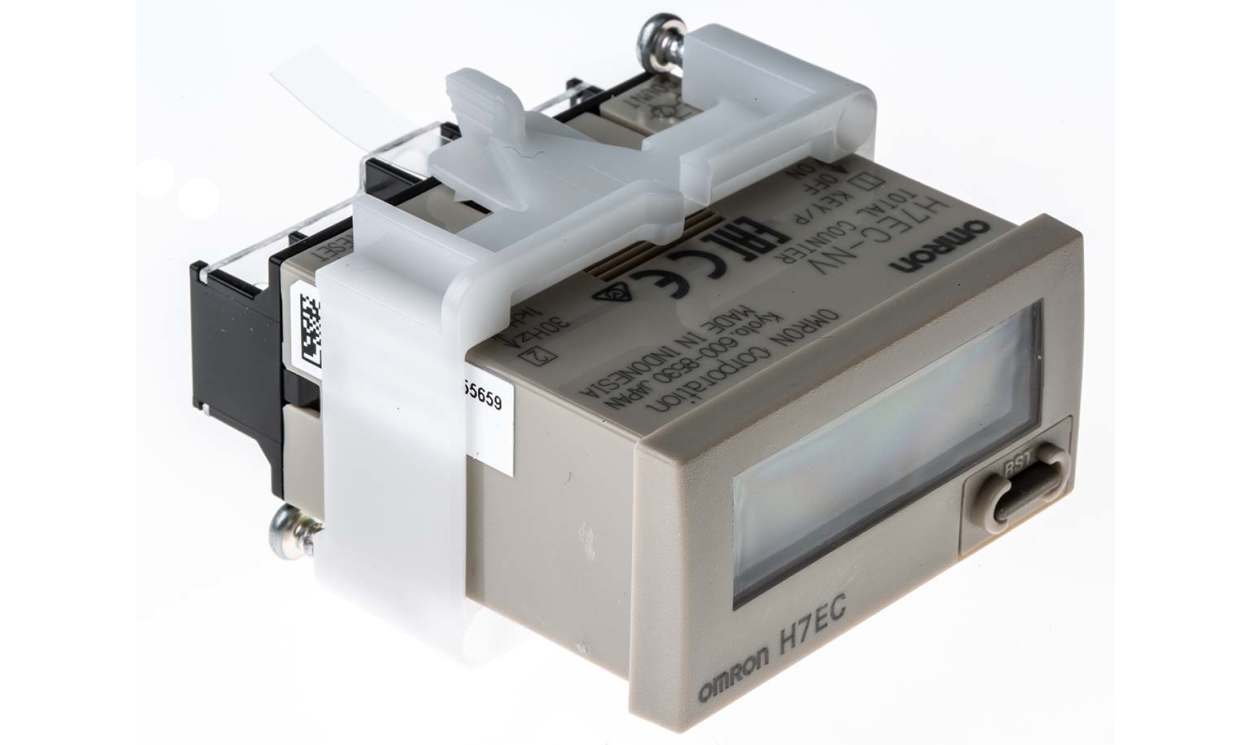

OMRON H7EC-NV | H7EC Total Counter | 8-Digit LCD, Self-Powered, DC Voltage Input

Name: OMRON H7EC-NV | H7EC Total Counter | 8-Digit LCD, Self-Powered, DC Voltage Input
Brand: OMRON
SKU: H7EC-NV
Availability: InStock

Part Number : H7EC-NV

The OMRON H7EC-NV is a self-powered H7EC total counter for DC voltage input, housed in a grey 1/32 DIN (48 x 24 mm) case. It counts up to 0 to 99999999 on an eight-digit LCD, at 30 cps or 1 kcps.

Self-powered, DC voltage input
8-digit LCD, 8.6 mm digits, 0 to 99999999
30 cps / 1 kcps counting speed
1/32 DIN (48 x 24 mm), grey case
Panel mount, screw connection, manual reset
48.5 mm depth, 60 g, -10 to +55 °C

Availability: low stock

Detailed Description
Specifications
Features
Downloads

Omron H7EC Series Counter, 8 Digits Display, 24V Supply Voltage - H7EC-NV-H

This counter is a versatile device designed for industrial counting solutions, featuring an 8-digit LCD display. With a robust panel mount design, it operates efficiently at a supply voltage of 24V. The device is specifically engineered for high-frequency counting tasks, reaching a maximum count frequency of 1 kHz, making it ideal for demanding environments.

Features & Benefits

• LCD digital display provides clear visual readouts
• Supports manual reset for precise counting control
• High-frequency counting capability enhances performance
• Operates in a wide temperature range from -10°C to +55°C
• Screw connection type ensures secure installation

Applications

• Used for monitoring cumulative production counts in manufacturing
• Ideal for tracking inventory levels in warehouses
• Utilised in automation systems for precise data input
• Suitable for electrical and mechanical industries requiring digital counts

What capabilities does this device have in extreme conditions?

It functions effectively from -10°C to +55°C, ensuring reliability in various environments, from cold storage to high-temperature industrial areas.

How does the manual reset feature improve usability?

The manual reset option allows users to easily clear the count, facilitating quick adjustments during operations and ensuring accuracy in counting tasks.

What kind of installation method is recommended for this device?

The panel mount design is recommended, offering easy integration into existing control panels and providing stable operation even in busy settings.

Brand	Omron
Display Type	LCD
Input Type	Voltage
Function	Counter
Connection Type	Screw
Reset Method	Manual
Number of Digits	8
Mounting Type	Panel Mount
Count Direction	Up
Digit Height	8.6 mm
Backlighting	No
Maximum Count Frequency	1kHz
Display Range	0 → 99999999
Maximum Operating Temperature	+55°C
Depth	48.5mm
Series	H7EC
Weight	60g
Minimum Operating Temperature	-10°C
Measurement Range	0 → 99999999

Total counter, 1/32DIN (48 x 24 mm), self-powered, LCD, 8-digit, 30cps/1kcps, VDC input, grey case

OMRON H7EC-NV | H7EC Total Counter | 8-Digit LCD, Self-Powered, DC Voltage Input

DOWNLOAD CATALOG

H7EC-NV CSA LR22310-398 0900766b8008637d
