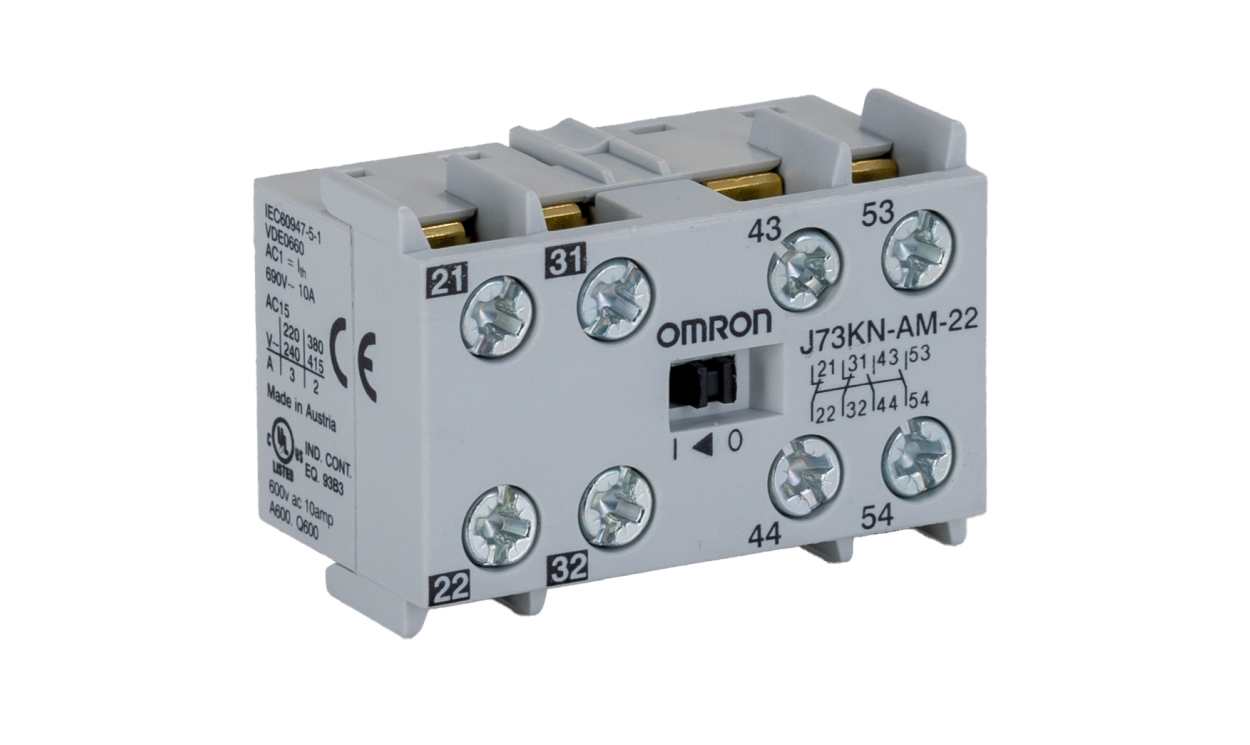

OMRON J73KN-AM-22 | J73KN Auxiliary Contact Block | 2NC + 2NO, 10 A, 24 V

Name: OMRON J73KN-AM-22 | J73KN Auxiliary Contact Block | 2NC + 2NO, 10 A, 24 V
Brand: OMRON
SKU: J73KN-AM-22
Availability: InStock

Part Number : J73KN-AM-22

OMRON's J73KN-AM-22 auxiliary contact block (J73KN series) provides a 2NC + 2NO contact set rated at 10 A, 24 V. The J73KN-AM-22 is listed with screw terminals and an operating temperature range of -40 to +60 °C. Before ordering the J73KN-AM-22, verify the target contactor, mounting position and any rating conditions that apply in the OMRON documentation for this series.

Series: J73KN
Contact configuration: 2NC + 2NO
Number of contacts: 4
Contact current rating: 10 A
Contact voltage rating: 24 V
Terminal type: screw

Availability: low stock

Detailed Description
Specifications
Downloads

Omron J73KN Series Auxiliary Contact Block, 4 Contacts, Screw Terminal - J73KN-AM-22

This auxiliary contact block enhances the functionality of industrial electrical systems. It offers a solution for various control applications, ensuring efficient operation in automation and mechanical industries. Its technical specifications make it a key component for professionals seeking dependable performance in their electrical setups.

Features & Benefits

• Contact current rating of 10A for robust use
• Equipped with screw terminals for secure connections
• Operates with a contact voltage rating of 24V
• Functions across a temperature range of -40°C to +60°C

Applications

• Suitable for use in automation systems
• Effective for controlling motors and machine functions
• Commonly integrated into PLC control panels
• Utilised in command and signalling circuits with electronic devices

What installation requirements should be considered?

The unit must be securely mounted on a DIN rail with appropriate wiring connections to ensure efficient operation.

What type of wiring is recommended for this contact block?

Screw terminals accommodate solid or stranded wires, ensuring reliable connections for electrical performance.

Is this product compatible with digital and electronic circuits?

Yes, it meets DIN 19240 standards, making it appropriate for electronic control applications.

How do I ensure secure connection with the screw terminals?

Tightening the screws adequately is essential to create a stable connection without overtightening, which could damage the terminal.

Brand	Omron
Number of Contacts	4
Normal State Configuration	2NC + 2NO
Series	J73KN
Contact Current Rating	10 A
Terminal Type	Screw
Contact Voltage Rating	24 V
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+60 °C, +90 °C
Operating Temperature Range	-40 → +60 °C
