OMRON J7KCR-12-10 24VAC | 1-Pole Reversing Contactor | 24 V ac Coil, 12 A, 1NO

Name: OMRON J7KCR-12-10 24VAC | 1-Pole Reversing Contactor | 24 V ac Coil, 12 A, 1NO
Brand: OMRON
SKU: J7KCR-12-10 24VAC
Availability: InStock

Part Number : J7KCR-12-10 24VAC

For reversing duty, the OMRON J7KCR-12-10 24VAC offers one pole with a normally open (1NO) contact rated at 12 A, switched by a 24 V ac coil.

Coil voltage: 24 V ac
Number of poles: 1
Contact current rating: 12 A
Contact configuration: 1NO
Function: reversing

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron J7KC series reversing magnetic contactor with push in plus wiring technology which saves wiring and maintenance time. It has coil voltage of 24 V ac and has motor control power up to 5.5 kW. It has operate time of 17 to 26 ms. It has dimension of H67.5 x W 90.5 x D46 mm.

Operating temperature -10 to +55°C
Degree of protection IP20
High contact reliability

Brand	Omron
Coil Voltage	24 V ac
Number of Poles	1
Contact Current Rating	12 A
Function	Reversing
Normal State Configuration	1NO

OMRON J7KCR-12-10 24VAC | 1-Pole Reversing Contactor | 24 V ac Coil, 12 A, 1NO

DOWNLOAD CATALOG

OMRON J7KCR-12-10 24VAC | 1-Pole Reversing Contactor | 24 V ac Coil, 12 A, 1NO

OMRON J7KNU-05-01 90 | 3-Pole Contactor | 90 V AC Coil, 5 A, 2.2 kW, 1NC

OMRON J7KNU-05-01R 90 | Reversing Contactor | 90 V AC Coil, 5 A, 2.2 kW, 3NO + 1NC

OMRON J7KNU-05-01 48D | J7KNU 3-Pole Contactor | 60 V Coil, 40 A, 2.2 kW, 1NC

OMRON J7KNU-05-01R 60D | Reversing Contactor | 60 V DC Coil, 5 A, 2.2 kW, 1NC

OMRON J7KN-62 24 | 3-Pole Contactor | 24 V ac Coil, 62 A, 30 kW

OMRON J7KNU-AR-40 48 | 4-Pole Contactor Relay | 48 V AC Coil, 5 A, 4NC

OMRON J7KNU-05-01R 110D | J7KNU 3-Pole Contactor | 110 V AC Coil, 12 A, 2.2 kW, 1NO

OMRON J7KN-40 110 | 3-Pole Contactor | 110 V ac Coil, 40 A, 11 kW

Meet Us F2F

Snap-on QJXM13A | 15° Offset 12-Point Box End Torque Wrench Head | 13 mm, J shank, 60 ft-lb

Snap-on QJXM11A | 15° Offset 12-Point Box End Torque Wrench Head | 11 mm, J shank, 59 ft-lb

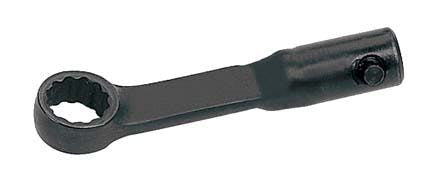

Snap-on QJXM10A | 15° Offset 12-Point Box End Torque Wrench Head | 10 mm, J shank, 53 ft-lb

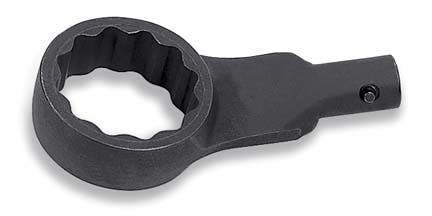

Snap-on QJXBM19A | 10° Offset 12-Point Box End Torque Wrench Head | 19 mm, J shank, 60 ft-lb
