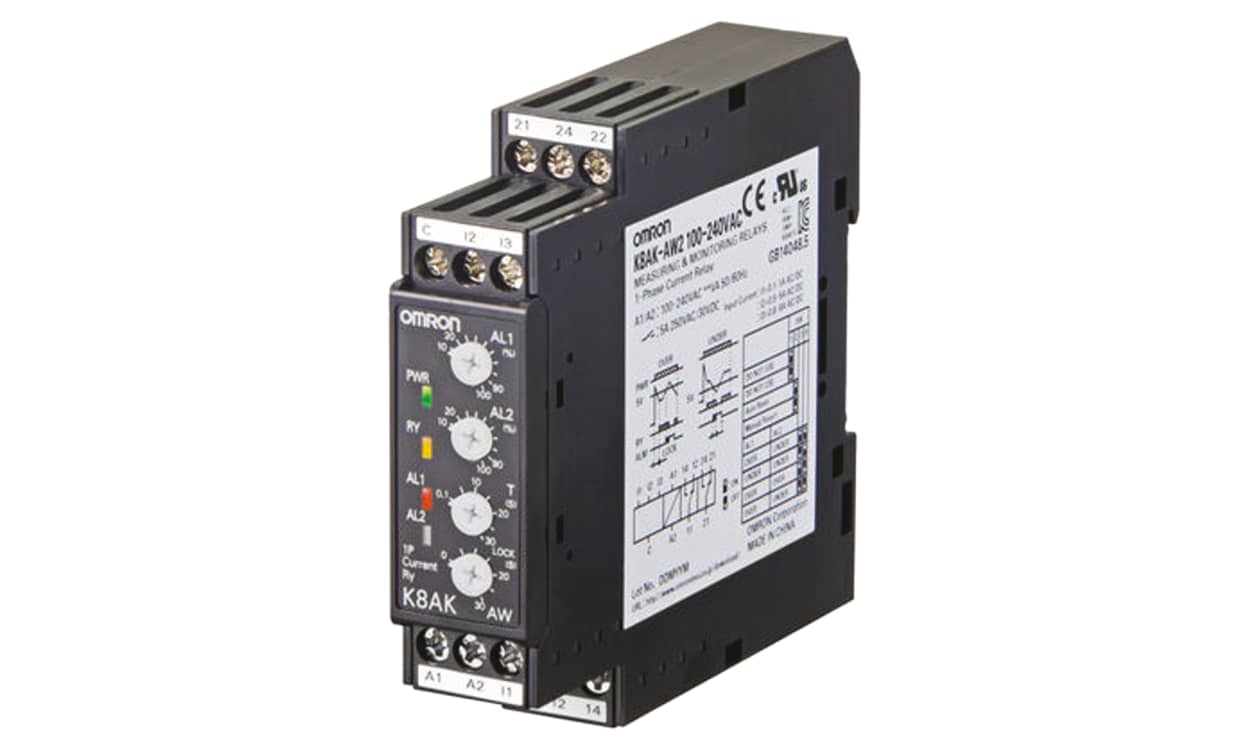

OMRON K8AK-AW1 100-240VAC | Current Monitoring Relay | 2 to 500 mA, 1 Phase, SPDT

Name: OMRON K8AK-AW1 100-240VAC | Current Monitoring Relay | 2 to 500 mA, 1 Phase, SPDT
Brand: OMRON
SKU: K8AK-AW1 100-240VAC
Availability: InStock

Part Number : K8AK-AW1 100-240VAC

The OMRON K8AK-AW1 100-240VAC is a single-phase current monitoring relay with current ranges of 2 to 20 mA, 10 to 100 mA and 50 to 500 mA, plus overcurrent and undercurrent detection. It switches SPDT contacts and mounts on DIN rail in a 22.5 mm wide housing. Per the product description, the K8AK-AW1 100-240VAC handles AC or DC input. The description lists 100-240 VAC for the K8AK-AW1 100-240VAC.

Current ranges: 2 to 20 mA, 10 to 100 mA, 50 to 500 mA
Detection: Overcurrent, undercurrent
Contacts: SPDT
Terminals: Screw
Dimensions: 100 x 22.5 x 90 mm
Operating temperature: -20 to +60 °C

Availability: low stock

Detailed Description
Specifications
Features
Downloads

Omron K8AK-AS/AW Monitoring Relays

The Omron K8AK series monitoring relays are expertly designed for accurate and reliable monitoring for industrial facilities and equipment. The K8AK-AW/AS relays are suitable for undercurrent and overcurrent monitoring, which the K8AK-AW can do simultaneously.
Manual resetting and automatically resetting can be maintained by one relay.
Startup lock and operating time can be set individually.

K8AK-AW Series.

• Monitors over and under currents
• Use available current transformers (CT)
• One relay supports manual and automatic resetting
• Start-up lock and operating time can be set separately
• Two SPDT output contacts. 5 A at 250 V ac resistive load
• Output relay can switch between normally open and closed
• LED indicator can be used to monitor output status
• Inputs are isolated from the power supply

K8AK-AW Models Available.

• K8AS-AW1 24 VAC/DC – Stock number 8193226

• K8AK-AW1 100-240 VAC - Stock number 8193223

• K8AK-AW2 24 VAC/DC - Stock number 8193239 (if using other current transformers do not exceed the overload capacity)

• K8AK-AW2 100-240 VAC - Stock number 8193220 (if using other current transformers do not exceed the overload capacity)

• K8AK-AW3 100-240 VAC - Stock number 8193232

• K8AK-AW3 – designed to be used with Omron K8AC-CT200L Current Transformer as direct input is not possible. Stock number 6118602

Added Features and Benefits.

• Power Supply – 200 to 240 V ac (24 V ac/dc

• Reset method – Manual / automatic (switchable), Manual reset turn OFF the power supply for 1 s plus.

• Operating time setting range 0.1 s to 30 s

• Start-up lock time range (LOCK) – 0 to 30 s – lock timer starts when the input reaches 30% plus of the set value. (enabled only for overcurrent operation)

• Power indicator – Green

• Relay output indicator – Yellow

• Alarm outputs – Red

• Output relays – 2 SPDT relay outputs NC (normally closed)

• Case is PC and ABS, UL 94 V-0. Colour N1.5

• Weight 150 g

• DIN rail mounted

What is a Monitoring / Measuring Relay?

A monitoring / measuring relay is a protective control device, various types are available suiting what you wish to monitor. The relays receive input signals then monitor them and then output an alarm signal when a set value is reached (alarm relays). The relays protect your equipment against over voltage and over current faults. Monitoring relays monitor AC power supplies, voltage and current, analogue signals detecting unusual activity in equipment against set alarm thresholds.

Types of Monitoring Relays Available?

• Motor protection relays

• Temperature monitoring relays

• Water level control relays

Applications.

• Industrial facilities

• Industrial equipment

Standards

EN 60947-5-1 pollution level 2 installation category III, UL 508.
Terminal protection IP20.

Brand	Omron
Monitoring Application	Current
Electrical Phase	1
Contact Configuration	SPDT
Mounting Type	DIN Rail
Minimum Current Sensed	2mA
Maximum Current Sensed	500mA
Current Sensitivity	Overcurrent, Undercurrent
Series	K8AK-AW
Current Range	10 → 100 mA, 2 → 20 mA, 50 → 500mA
Dimensions	100 x 22.5 x 90mm
Maximum Operating Temperature	+60°C
Width	22.5mm
Minimum Operating Temperature	-20°C
Terminal Type	Screw
Operating Temperature Range	+60°C
Height	90mm
Length	100mm
