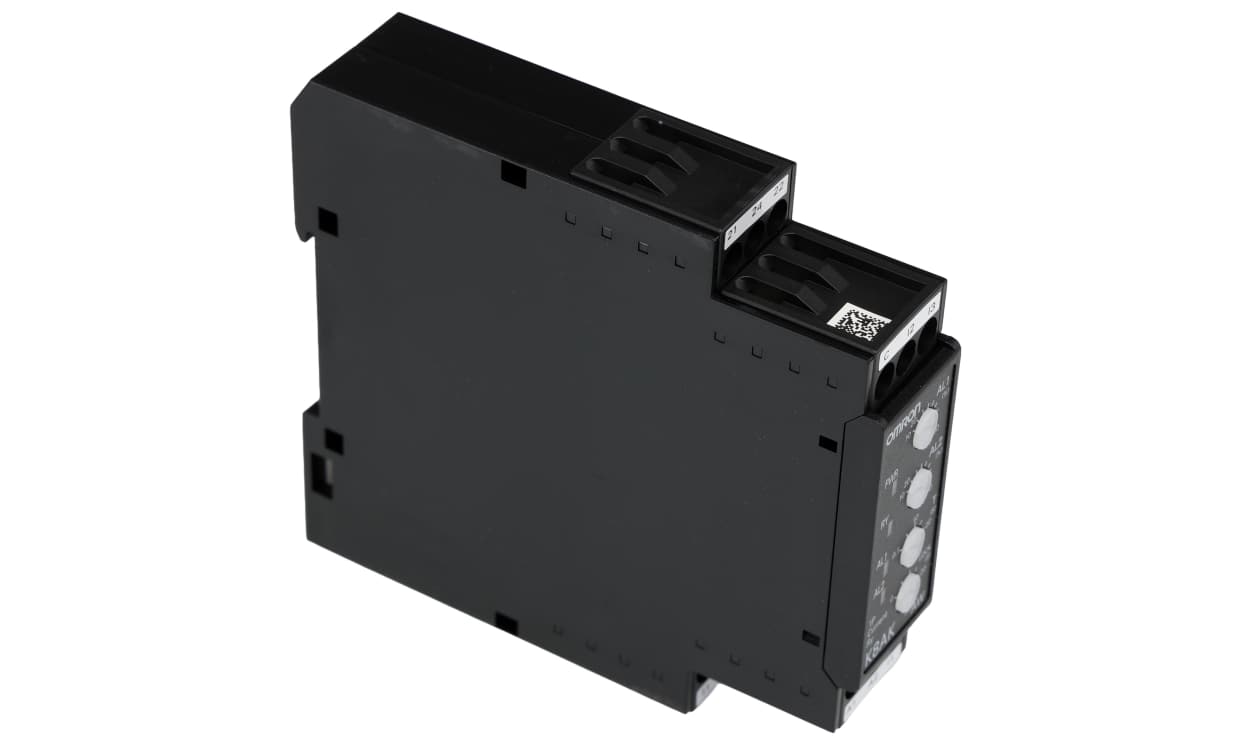

OMRON K8AK-AW1 24VAC/DC | Current Monitoring Relay | 2 to 500 mA, 1 Phase, SPDT

Name: OMRON K8AK-AW1 24VAC/DC | Current Monitoring Relay | 2 to 500 mA, 1 Phase, SPDT
Brand: OMRON
SKU: K8AK-AW1 24VAC/DC
Availability: InStock

Part Number : K8AK-AW1 24VAC/DC

Offering current ranges of 2 to 20 mA, 10 to 100 mA and 50 to 500 mA, plus overcurrent and undercurrent detection, the OMRON K8AK-AW1 24VAC/DC is a single-phase current monitoring relay. The K8AK-AW1 24VAC/DC switches an SPDT output and mounts on DIN rail in a 22.5 mm wide housing.

Current ranges: 2 to 20 mA, 10 to 100 mA, 50 to 500 mA
Detection: Overcurrent, undercurrent
Contacts: SPDT
Terminals: Screw
Dimensions: 100 x 22.5 x 90 mm
Operating temperature: -20 to +60 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron K8AK-AW Series Monitoring Relay, 24V Voltage Sensing Range, Current Sensing Application - K8AK-AW1 24VAC/DC

This monitoring relay is designed for current application needs and is ideal for use in various industrial environments. The product features a single electrical phase with a voltage sensing range of 24V, making it compatible with a range of setups. Measuring 100 x 22.5 x 90 mm, this DIN rail relay offers efficient monitoring capabilities, ensuring reliable performance across operating temperatures of -20 to +60 °C.

Features & Benefits

• Offers overcurrent and undercurrent sensitivity for optimal monitoring
• Designed for easy installation on DIN rail for quick setup
• Screw terminal type ensures secure and stable connections
• Meets UK standards for safety and reliability in industrial environments

Applications

• Used for monitoring electrical current in machinery
• Suitable for circuit protection in automatic systems
• Ideal in power supply for real-time feedback
• Effective in HVAC systems for current monitoring
• Utilised in automation systems to ensure safe operation

What current ranges can be effectively monitored?

This product effectively monitors currents ranging from 2mA to 500mA, accommodating various operational needs.

How does this relay ensure both overcurrent and undercurrent protection?

It is designed with sensitivity for both overcurrent and undercurrent conditions, allowing it to detect and respond to fluctuations in electrical current for enhanced safety.

What are the temperature limits for safe operation?

The device operates safely within a temperature range of -20 to +60°C, making it suitable for diverse environments and conditions.

Can the relay detect frequency variations, and what is the effective frequency range?

Yes, it can sense frequencies between 45 to 65 Hz, providing reliable monitoring in applications where frequency stability is crucial.

Standards

EN 60947-5-1 pollution level 2 installation category III, UL 508.
Terminal protection IP20.

Brand	Omron
Monitoring Application	Current
Electrical Phase	1
Contact Configuration	SPDT
Mounting Type	DIN Rail
Minimum Current Sensed	2mA
Maximum Current Sensed	500mA
Current Sensitivity	Overcurrent, Undercurrent
Series	K8AK-AW
Current Range	10 → 100 mA, 2 → 20 mA, 50 → 500mA
Dimensions	100 x 22.5 x 90mm
Terminal Type	Screw
Length	100mm
Height	90mm
Operating Temperature Range	+60°C
Width	22.5mm
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+60°C

OMRON K8AK-AW1 24VAC/DC | Current Monitoring Relay | 2 to 500 mA, 1 Phase, SPDT

DOWNLOAD CATALOG

K8AK-AW1 24VAC DC Guide - K8AK Series A700000014360576
