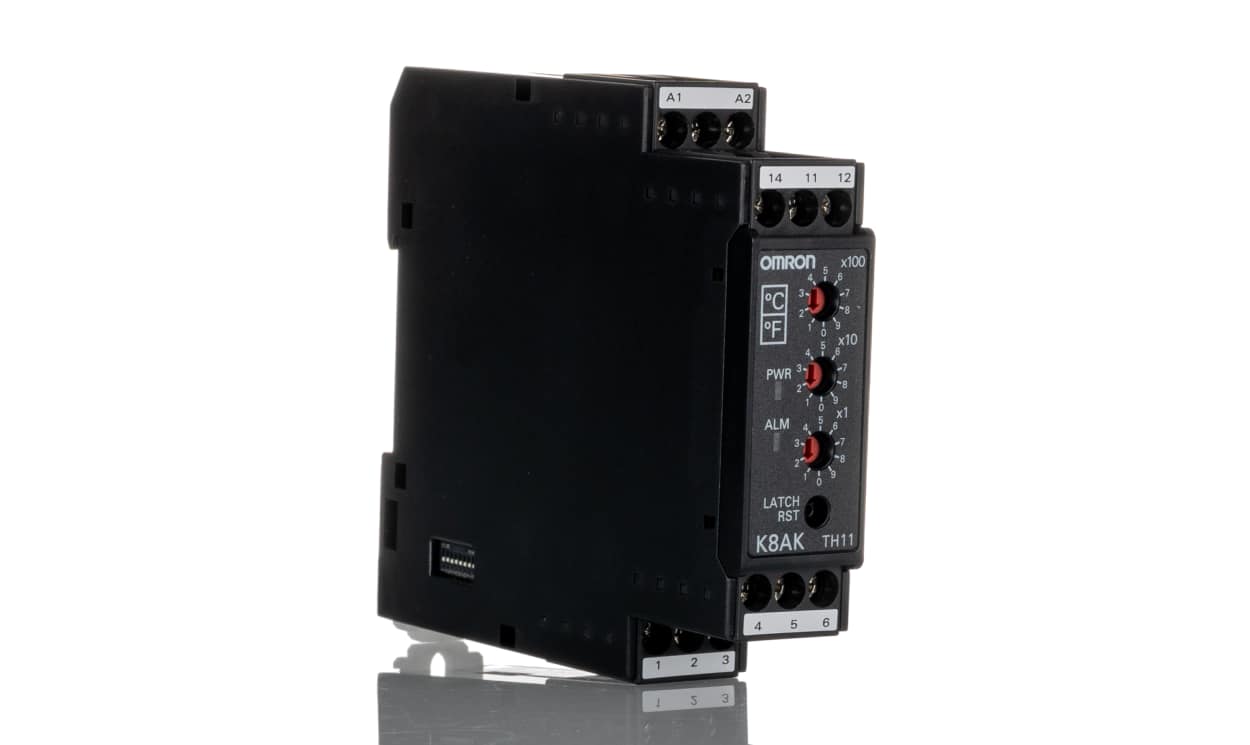

Omron K8AK-TH11S 100-240VAC, Temperature Monitoring Relay, SPDT, DIN Rail

Name: Omron K8AK-TH11S 100-240VAC, Temperature Monitoring Relay, SPDT, DIN Rail
Brand: OMRON
SKU: K8AK-TH11S 100-240VAC
Availability: OutOfStock

Part Number : K8AK-TH11S 100-240VAC

Monitoring relay 22.5 mm wide, over or under temperature, 0-999 °C/F Thermocouple and PT100 input types, One SPDT

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron Monitoring Relay, SPDT Relay Output, 100 to 240V AC Supply Voltage - K8AK-TH11S 100-240VAC

This Temperature Monitoring Relay features universal input for various sensors, including thermocouples and platinum resistance thermometers. It operates on a 100 to 240V AC power supply and has a compact width of 22.5mm, ideal for space-limited installations. Configuration is simplified with adjustable rotary switches.

Features & Benefits

• Compact design for space-saving installation
• Adjustable rotary switches for easy temperature setting
• Universal input supports thermocouples and resistance thermometers
• Flexible output configuration (normally open or closed)
• LED indicator for alarm status
• Retains alarm status when powered off

Applications

• Industrial automation systems
• Temperature alarm and monitoring setups
• HVAC systems
• Manufacturing processes requiring temperature control
• Safety systems to prevent overheating

Can it monitor different types of temperature sensors?

Yes, it supports thermocouples and platinum resistance thermometers.

Will it retain settings if the power supply is turned off?

Yes, it maintains alarm status without power.

Is it suitable for use in harsh industrial environments?

Yes, it operates within -20°C to +55°C.

Can it be mounted easily on existing systems?

Yes, it mounts conveniently on DIN rails.

Standards

UL 61010-1, EN 61326-1, IP 20

Brand	Omron
Monitoring Application	Temperature
Contact Configuration	SPDT
Mounting Type	DIN Rail
Time Delay	100ms
Temperature Sensitivity	Overtemperature
Temperature Sensing Range	0 → 999°C
Series	K8AK-TH
Maximum Temperature Sensed	+999°C
Width	22.5mm
Maximum Operating Temperature	+55°C
Terminal Type	Screw
Standards Met	CE, CSA
Dimensions	100 x 22.5 x 90mm
Minimum Operating Temperature	-20°C
Height	90mm
Length	100mm
Operating Temperature Range	+55°C
Minimum Temperature Sensed	0°C
