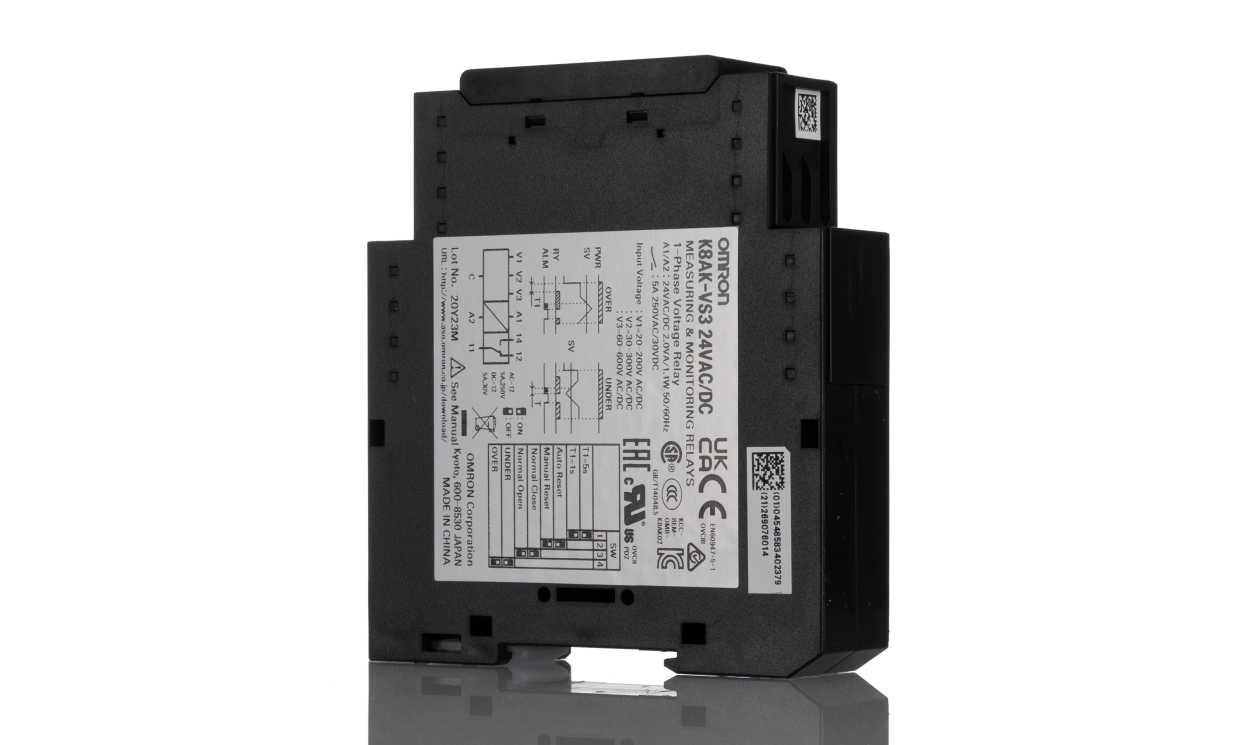

Omron K8AK-VS3 24VAC/DC, Voltage Monitoring Relay, 1 Phase, SPDT, 20 → 200V ac/dc

Name: Omron K8AK-VS3 24VAC/DC, Voltage Monitoring Relay, 1 Phase, SPDT, 20 → 200V ac/dc
Brand: OMRON
SKU: K8AK-VS3 24VAC/DC
Availability: InStock

Part Number : K8AK-VS3 24VAC/DC

Availability: low stock

Detailed Description
Specifications
Downloads

Omron K8AK-VS Series Monitoring Relay, 22.5 x 100 x 95 mm, 0.1 to 30s Time Delay - K8AK-VS3 24VAC/DC

This single-phase Omron voltage monitoring relay is ideal for industrial facilities and equipment. Designed to monitor for overvoltages and undervoltages, this relay provides the necessary protection for sensitive equipment. With a voltage sensing range of 20 to 200 V AC/DC, 30 to 300 V AC/DC, and 60 to 600 V AC/DC, it ensures precise monitoring and protection.

Features & Benefits

• SPDT contact configuration for versatile relay output options
• Manual and automatic resetting capabilities for flexibility in operation
• Voltage sensitivity for both overvoltage and undervoltage protection
• LED indicator for easy monitoring of output status
• Wide operating temperature range of -20 to 60°C for reliability in various environments
• DIN track mounting for convenient installation

Applications

• Voltage monitoring in industrial facilities
• Protection of sensitive equipment from power fluctuations

Can it protect equipment from overvoltages and undervoltages?

Yes, it can monitor and protect against both overvoltages and undervoltages.

Will it work in a wide range of operating temperatures?

Yes, with an operating temperature range of -20 to 60°C, this relay is suitable for various environments.

Is the relay output configurable between normally open and normally closed?

Yes, the output relay can be switched between normally open and normally closed configurations.

Standards

UL 60947-5-1, UL 508, IP 20

Brand	Omron
Monitoring Application	Voltage
Electrical Phase	1
Contact Configuration	SPDT
Voltage Sensing Range	20 → 200 V ac/dc, 30 → 300 V ac/dc, 60 → 600V ac/dc
Voltage Sensitivity	Overvoltage, Undervoltage
Time Delay	0.1 → 30s
Series	K8AK-VS
Minimum Voltage Sensed	20 V ac/dc, 30 V ac/dc, 60V ac/dc
Dimensions	22.5 x 100 x 95mm
Length	22.5mm
Minimum Operating Temperature	-20°C
Standards Met	CE
Maximum Operating Temperature	+60°C
Operating Temperature Range	+60°C
Maximum Voltage Sensed	200 V ac/dc, 300 V ac/dc, 600V ac/dc
Width	100mm
Height	95mm

Omron K8AK-VS3 24VAC/DC, Voltage Monitoring Relay, 1 Phase, SPDT, 20 → 200V ac/dc

DOWNLOAD CATALOG

K8AK-VS3 24VAC DC Brochure - K8 Series A700000011071565
