OMRON K8DT-AS1TA | Current Monitoring Relay | 2 to 500 mA, 1 Phase, SPST

Name: OMRON K8DT-AS1TA | Current Monitoring Relay | 2 to 500 mA, 1 Phase, SPST
Brand: OMRON
SKU: K8DT-AS1TA
Availability: InStock

Part Number : K8DT-AS1TA

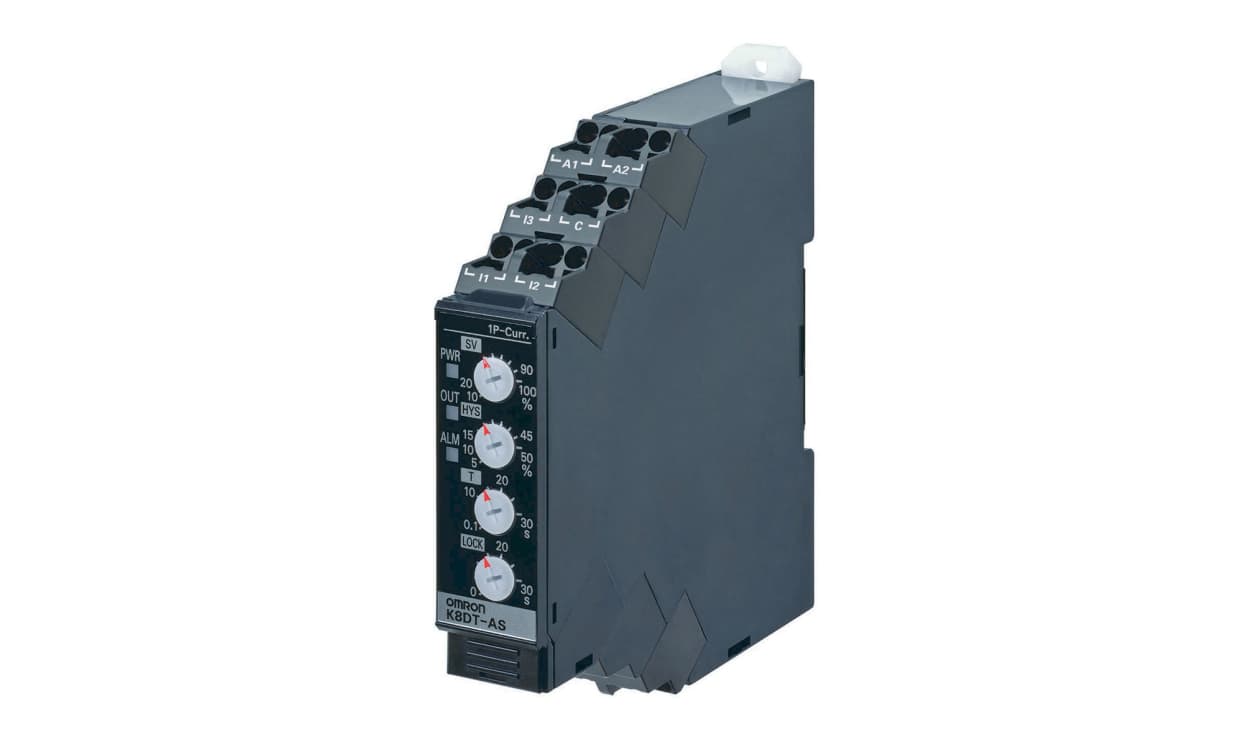

OMRON K8DT-AS1TA single-phase current monitoring relay: current ranges of 2 to 20 mA, 10 to 100 mA and 50 to 500 mA, plus overcurrent and undercurrent detection. This unit switches an SPST output and mounts on DIN rail in a 17.5 mm wide housing.

Current ranges: 2 to 20 mA, 10 to 100 mA, 50 to 500 mA
Detection: Overcurrent, undercurrent
Contacts: SPST
Time delay: 250 ms
Terminals: Push In
Operating temperature: -20 to +60 °C

Availability: low stock

Detailed Description
Specifications
Downloads

K8DT-AS/AW Single Phase Current Relay

Omron K8DT-AS/AW single phase current relays detect errors in motors and other equipment through current changes.

Monitor AC or DC currents with one Relay.
Use with commercially available current transformers
Width of 17.5 mm to reduce space required in panels.
Push-In Plus Terminal that reduce wiring work.
Double-insertion holes for crossover wiring (all terminals).

Note

K8DT-AS allow use in either overcurrent or undercurrent mode.
K8DT-AW allow overcurrent and undercurrent monitoring simultaneously

K8DT-AS Monitoring Motor Protection Relay.

• Downsize control panels.
• Reduced wiring.
• Detects errors in Motors and other equipment via current changes.
• Use in either over current or under current mode.
• Function as an alarm.
• Set threshold values.
• Alarm output can be set as a relay or transistor output.
• Input signal – Voltage, current, water level electrode and temperature (thermocouple or platinum resistance thermometer) can be input.
• Lower power consumption.
• Long term contact reliability.
• Reliable in poor noise environments.
• Slim profile 17.5 mm

K8DT-AS1TA 100 to 240 VAC Model.

• Current Monitoring Relay.
• Single phase.
• Transistor Output.
• Power supply 100 to 240 V ac.
• Setting range 2 to 20 mA ac/dc, 10 to 100 mA ac/dc, 50 to 500 mA ac/dc.
• Direct input.
• If using other current transformers Do Not exceed the overload capacity.

Features and Benefits.

• Power supply 100 to 240 V ac, 50/60 Hz, 24 V dc
• Manual/ Automatic reset (switchable)
• Manual reset – Turn OFF the power supply for minimum of 1 sec.
• Start-up lock time 0 to 30 s.
• Green LED Power (PWR)
• Yellow LED output (OUT)
• Red LED Relay output (ALM)
• One SPDT contact relay, switchable normally closed (NC) and normally open (NO) using DIP switch.
• DIN Rail Mounted
• Weight 100 g
• Case material PC, UL 94 V-0.
• Colour N1.5
• Protection IP20 (terminals)

What is a Monitoring / Measuring Relay?

A monitoring / measuring relay is a protective control device, various types are available suiting what you wish to monitor. The relays receive input signals then monitor them and then output an alarm signal when a set value is reached (alarm relays). The relays protect your equipment against over voltage and over current faults. Monitoring relays monitor AC power supplies, voltage and current, analogue signals detecting unusual activity in equipment against set alarm thresholds.

Types of Monitoring Relays Available?

• Motor protection relays
• Temperature monitoring relays
• Water level control relays
• Voltage
• Current

Standards

EN 60947-5-1, UL 60947-5-1, IP 20 Terminals

Omron K8DT Series Control Relays

Omron K8DT measuring and monitoring relays are part of the Value Design for Panel concept that takes control panel design and manufacturing to a new level. The K8DT series protect important equipment from damage using various measuring and monitoring relays that conform to international safety standards. Low power consumption and low heat generation design offer a long service life.

Space Saving

The K8DT series can help downsize control panels by reducing the width between wiring ducts and void panel space. The slim body allows space to mount more devices in the same size of control panel to increase control panel functionality.

Push-In Plus Terminals

Push-In Plus terminal blocks on all K8DT relays reduce the time and work involved in wiring. The Push-In Plus terminals allow solid and stranded wires with pin terminals or ferrules to be inserted without the need for tools.

Brand	Omron
Monitoring Application	Current
Electrical Phase	1
Contact Configuration	SPST
Mounting Type	DIN Rail
Minimum Current Sensed	2 mA, 10 mA, 20mA
Maximum Current Sensed	20 mA, 100 mA, 500mA
Current Sensitivity	Overcurrent, Undercurrent
Time Delay	250ms
Series	K8DT-AS
Current Range	10 → 100 mA, 2 → 20 mA, 50 → 500mA
Dimensions	90 x 17.5 x 90mm
Maximum Operating Temperature	+60°C
Width	17.5mm
Operating Temperature Range	+60°C
Length	90mm
Minimum Operating Temperature	-20°C
Number of Poles	1
Terminal Type	Push In
Height	90mm
