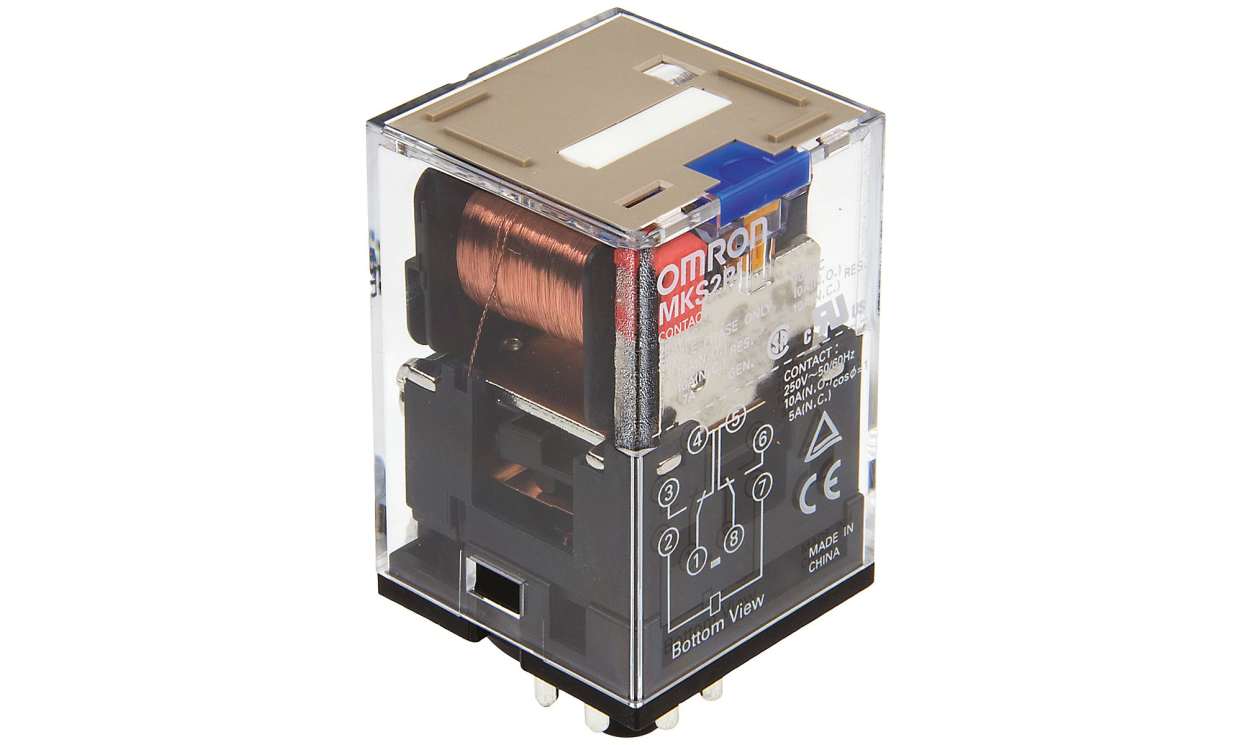

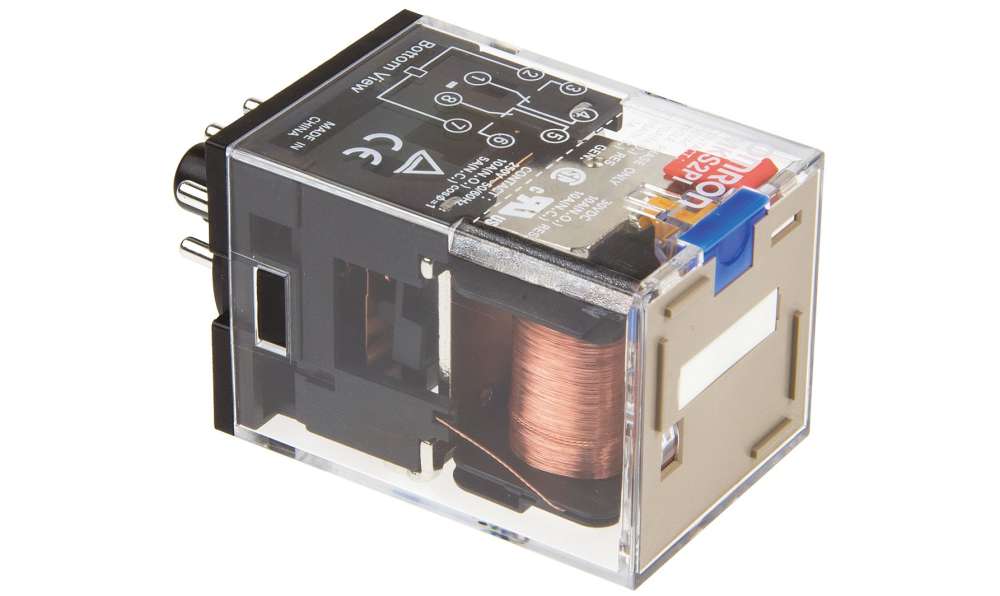

Omron MKS2PI 24VDC, Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT

Name: Omron MKS2PI 24VDC, Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: MKS2PI 24VDC
Availability: OutOfStock

Part Number : MKS2PI 24VDC

Relay, plug-in, 8-pin, DPDT, 10 A, mech indicator, test button

Availability: Sold out

Detailed Description
Specifications
Features

Omron MKS Series Power Relay, DPDT Contact Configuration, 24V DC Coil Voltage - MKS2PI DC24

This power relay is suitable for automation and control systems, providing reliable performance. It features a dual pole, double throw (DPDT) configuration, allowing for adaptable relay operations. The relay can handle a maximum switching voltage of 250V AC and 250V DC, ensuring dependability in diverse applications. Designed for general-purpose use, it is a common choice in electrical and mechanical industries.

Features & Benefits

• Operates with a 24V DC coil voltage for effective performance
• Plug-in design facilitates simple installation and replacement
• Capable of switching 10A for various applications
• Utilises silver alloy contacts for enhanced conductivity
• Functions effectively within a temperature range of -40°C to +60°C

Applications

• Utilised for activating loads in automation systems
• Suitable for control circuits that require consistent switching
• Applicable in computer-controlled machinery and equipment
• Used in industrial control panels for process automation
• Employed in power management systems across different sectors

What type of circuit can this component control?

It can function in both AC and DC circuits without issues.

How can I determine the appropriate voltage for wiring?

Refer to the specified coil voltage rating when wiring.

Can this relay handle inductive loads?

Yes, it is rated to effectively switch both resistive and inductive loads.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Series	MKS
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Length	34.5mm
Coil Resistance	430Ω
Depth	34.5mm
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+60°C
Contact Material	Silver Alloy
Standards Met	CSA, UL
Height	53.3mm
Maximum Switching Power AC	2.5 kVA

Relay, plug-in, 8-pin, DPDT, 10 A, mech indicator, test button
