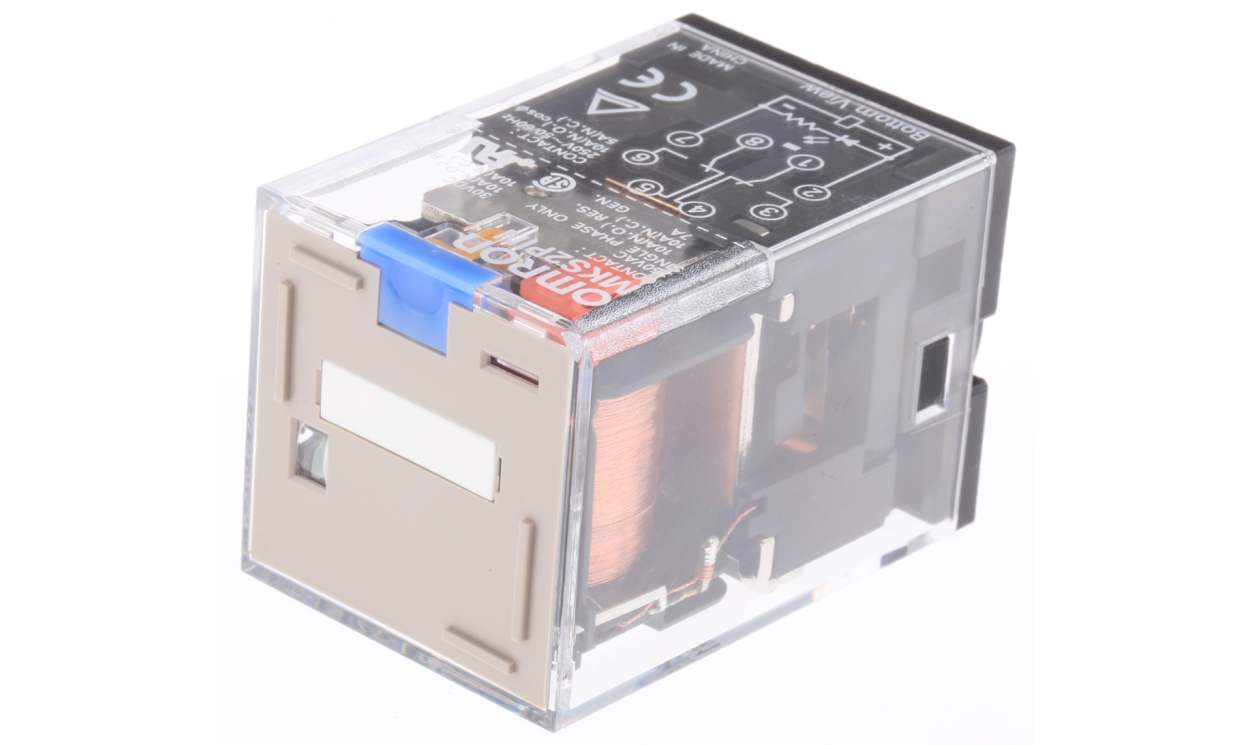

OMRON MKS2PIN 24VDC | Plug-In Power Relay | 24 V DC Coil, DPDT, 10 A

Name: OMRON MKS2PIN 24VDC | Plug-In Power Relay | 24 V DC Coil, DPDT, 10 A
Brand: OMRON
SKU: MKS2PIN 24VDC
Availability: InStock

Part Number : MKS2PIN 24VDC

The OMRON MKS2PIN 24VDC is a DPDT plug-in power relay with a 24 V DC coil and a 10 A switching current rating. Further listed values: plug-in terminals and a coil resistance of 430 Ω.

Maximum switching voltage 250 V AC / 250 V DC
Maximum switching power 2.5 kVA AC / 300 W DC
Silver alloy contacts
Operating temperature -40 °C to +60 °C
Dimensions 34.5 x 53.3 x 34.5 mm (L x H x D)
Non-latching operation

Availability: low stock

Detailed Description
Specifications
Downloads

Omron MKS2 Series Relay, DPDT Contact Configuration, 300W Maximum Switching Power (DC) - MKS2PIN DC24

This relay is a versatile component for various applications in automation and electrical industries. It features a compact design with dimensions of 34.5mm x 34.5mm x 53.3mm. Operating at 24V DC, it utilises a double pole double throw (DPDT) contact configuration, making it suitable for a range of control tasks. The relay performs effectively across temperatures from -40 to +60°C.

Features & Benefits

• Dual contact switching for varied applications
• Plug-in design for easy installation and maintenance
• General-purpose use in automation tasks
• High coil resistance of 430Ω for energy efficiency
• Capable of switching up to 250V AC/DC for versatile operations
• Built-in mechanical indicator for clear operation checks

Applications

• Relay sequence circuits in industrial automation
• Control of motors and lighting systems
• Test apparatus for circuit diagnostics
• Alarm and signalling systems

Can it operate at both high and low temperatures?

Yes, it functions effectively between -40°C and +60°C.

Will it fit existing mounting systems?

Yes, the plug-in design allows compatibility with standard mounts.

Is it suitable for both AC and DC applications?

Yes, it can switch both AC and DC voltages effectively.

How can the operation of this relay be verified?

The built-in mechanical indicator provides clear operation feedback.

Can this relay handle inductive loads?

Yes, it can manage inductive loads with a current rating of up to 10A.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Series	MKS2
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Length	34.5mm
Coil Resistance	430Ω
Depth	34.5mm
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-40°C
Contact Material	Silver Alloy
Height	53.3mm
Maximum Switching Power AC	2.5 kVA
Maximum Switching Power DC	300 W
