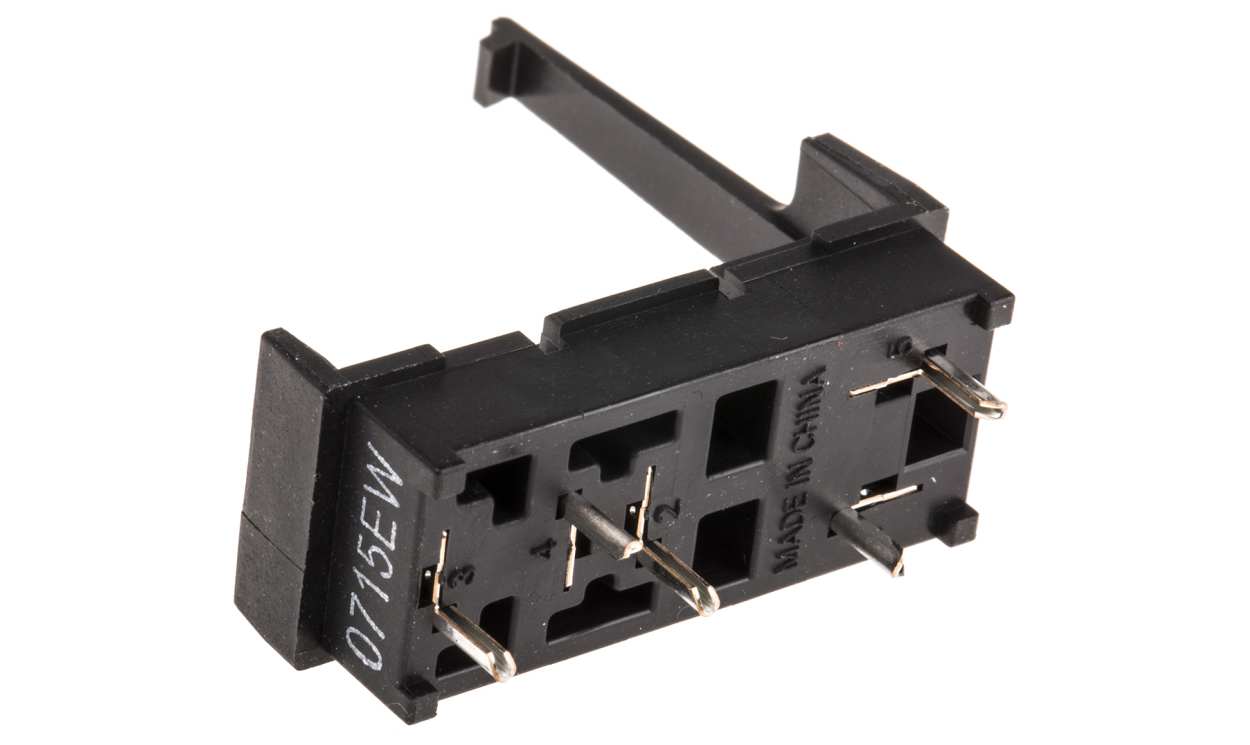

Omron P2R-05P, G2R 5 Pin 250V ac PCB Mount Relay Socket, for use with 1 Pole G2R Series

Name: Omron P2R-05P, G2R 5 Pin 250V ac PCB Mount Relay Socket, for use with 1 Pole G2R Series
Brand: OMRON
SKU: P2R-05P
Availability: OutOfStock

Part Number : P2R-05P

Availability: Sold out

Detailed Description
Specifications
Downloads

G2RS Series Non-Latching Relay

Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits

Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information

Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

Omron P2R Series Relay Socket, 250V AC Voltage, 10A Current Rating - P2R-05P

This relay socket is essential for electrical control systems, serving as a reliable connection point for relay components. Designed specifically for one-pole G2R series relays, it offers dependable performance under various conditions. With a current rating of 10A and an operating voltage of 250VAC, it is a key component for automation and control applications.

Features & Benefits

• PCB mount design enables easy installation in complex circuits
• Compatible with one-pole G2R series relays for broad applications
• Supports a current rating of 10A for high-capacity tasks
• Operates at 250VAC, suitable for multiple electrical systems
• Durable construction provides reliability across different environments
• Simplified wiring with clearly arranged contacts for easy connections

Applications

• Suitable for both building and industrial electrical systems
• Employed in relay-based signal switching
• Ideal for installations needing high-current handling
• Suitable for PCB layouts requiring relay integration

What voltage range does this component support?

It operates effectively at 250V AC, making it compatible with a variety of systems.

How do I install this component on a circuit board?

The PCB mount design allows for straightforward placement and soldering onto circuit boards.

Is it compatible with specific relay series?

Yes, it is designed for use with one-pole G2R series relays.

What are the current handling capabilities of this component?

It can handle up to 10A, making it suitable for high-current applications.

Approvals

UL; CSA; EN 61812-1; CE

Brand	Omron
Voltage	250V ac
For Use With	1 Pole G2R Series
Accessory Type	Terminal Socket
Series	G2R
Mounting Type	PCB Mount
Termination Type	PCB Pin
Number of Contacts	5
Current Rating	10A

Omron P2R-05P, G2R 5 Pin 250V ac PCB Mount Relay Socket, for use with 1 Pole G2R Series
