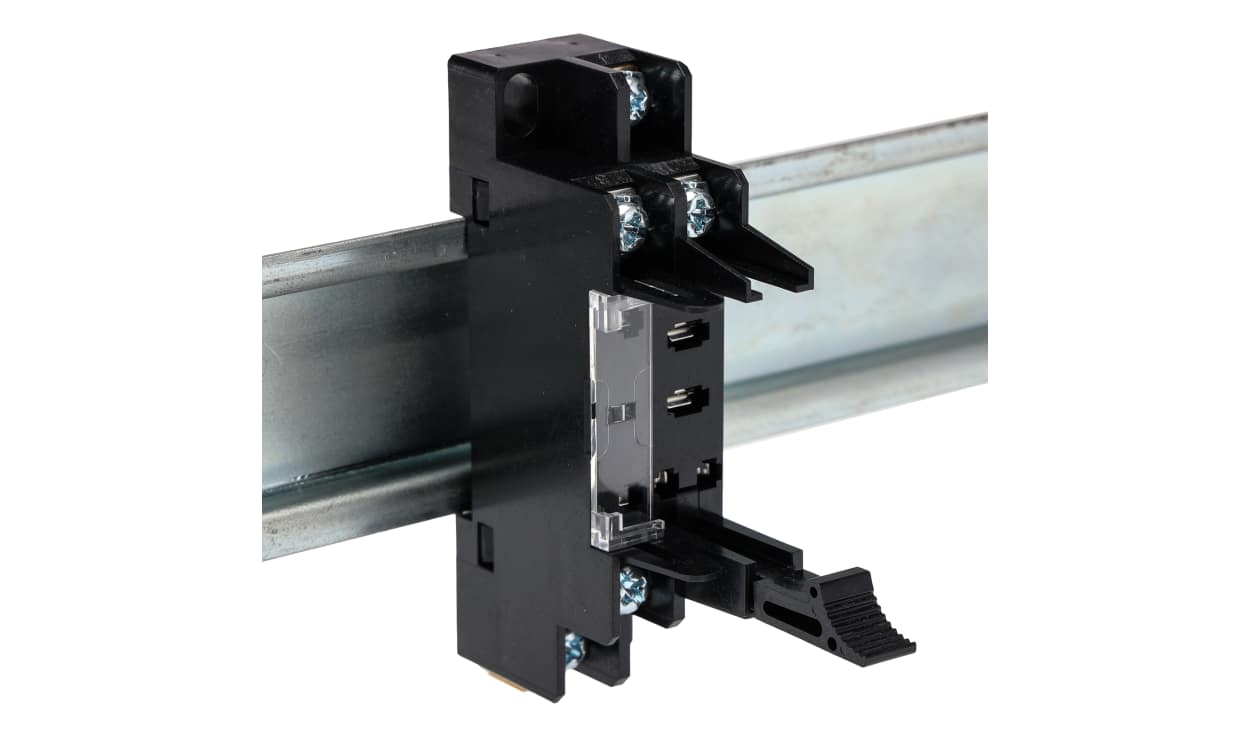

OMRON P7TF-05 | Relay Socket | 24V

Name: OMRON P7TF-05 | Relay Socket | 24V
Brand: OMRON
SKU: P7TF-05
Availability: InStock

Part Number : P7TF-05

This relay socket in the G7T series, OMRON part P7TF-05, comes with a 24V voltage rating. Compatible devices listed for P7TF-05: G3TA, G7T.

Voltage: 24V
Series: G7T
For use with: G3TA, G7T

Availability: low stock

Detailed Description
Specifications
Downloads

Omron P7TF Series Relay Socket, 24V Voltage, DIN Rail Mounting Type - P7TF-05

This relay socket is designed for seamless integration with various relay systems. Suitable for DIN rail mounting, it provides a robust connection for reliable automation applications. The P7TF relay socket is compatible with G3TA and G7T series relays, making it invaluable for users in the electrical and automation fields.

Features & Benefits

• Provides a secure screw terminal connection for easy installation
• Designed for fast and simple mounting on DIN rails
• Compact design optimises space in control panels
• Built-in surge suppressor for enhanced durability and protection

Applications

• Used with G3TA and G7T relays for automation tasks
• Ideal for control panels requiring compact relay solutions
• Utilised in industrial control systems for reliable signal processing
• Suitable for high-quality relay mounting solutions in various setups

How does this relay socket improve installation efficiency?

The design allows for quick mounting on DIN rails, minimising installation time. The screw terminal connection ensures a secure and stable link, simplifying the wiring process for users.

What considerations should be made when using this relay socket?

Ensure that the voltage supply matches the 24V specification to maintain optimal performance and integrity. Regularly check connections for tightness to avoid issues in automation operations.

Can this product be used for both AC and DC applications?

While the socket supports a 24V rating, it is essential to verify compatibility with the specific relay being employed. Refer to the relay specifications for AC or DC functionalities.

Brand	Omron
Voltage	24V
For Use With	G3TA, G7T
Series	G7T
