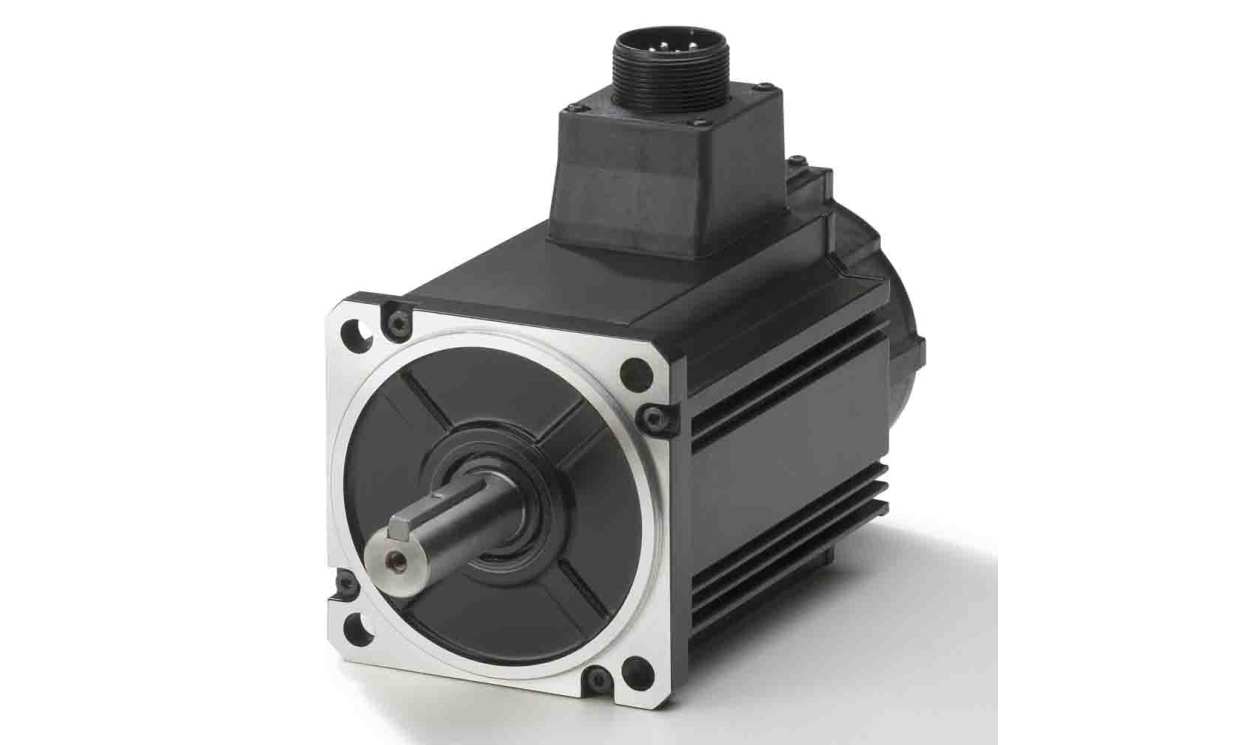

OMRON R88M-KH5K020C-BS1 | Accurax G5 Servo Motor | 5 kW, 3-Phase, 400 V

Name: OMRON R88M-KH5K020C-BS1 | Accurax G5 Servo Motor | 5 kW, 3-Phase, 400 V
Brand: OMRON
SKU: R88M-KH5K020C-BS1
Availability: InStock

Part Number : R88M-KH5K020C-BS1

Rated at 5 kW, the R88M-KH5K020C-BS1 belongs to OMRON's Accurax G5 series of servo motors and is listed for 400 V operation. According to the product data, the R88M-KH5K020C-BS1 is a three-phase unit. Dimensions, torque figures, encoder data and connection details of the R88M-KH5K020C-BS1 are covered in the OMRON datasheet; check them before installation.

Series: Accurax G5
Power rating: 5 kW
Supply voltage: 400 V
Phase: 3 (three-phase)

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron Accurax G5 servomotor include IP67 protection and connectors on the motor body. It use 10 pole motors and 20 bit encoder results in 40% reduction in motor cogging. The servomotors are 25% lighter and 15% smaller due to patented new stator design PAC-Clamp, 40% iron loss reduction and 15% smaller encoder. Accurax G5 series high inertia AC servo motor for accurate motion control has absolute encoder of 17 bit straight shaft with key and tap with brake. It has 23.9 Nm rated torque, 3000 rpm speed and 5 kW power capacity.

Standard and high inertia servo motor models
Peak torque 300% of rated torque during 3 seconds
or more depending on model
High resolution serial encoder provided by 20 bits
encoder
Ultra-light and compact size motor
Low speed ripple and low torque ripple due to low
torque cogging
Various shaft, brake and seal options
