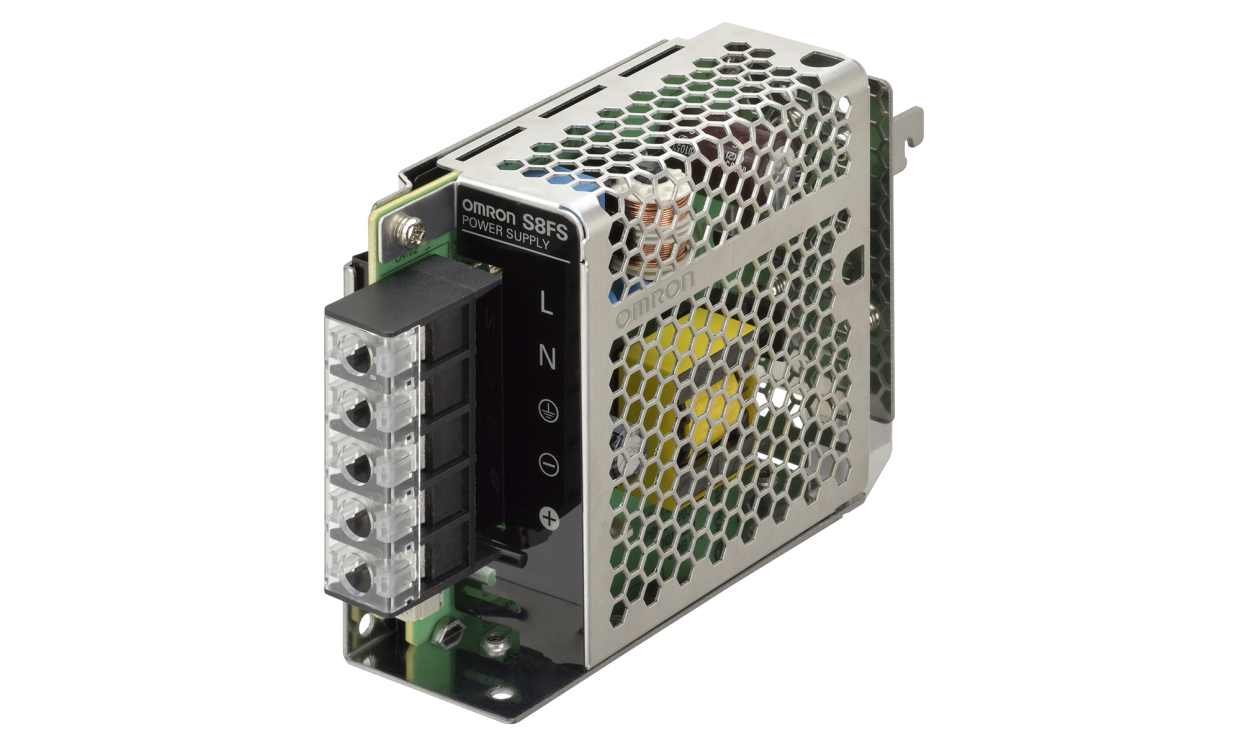

Name: Omron S8FS-G01512CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 12V dc dc Output, 1.3A Output, 15W
Brand: OMRON
SKU: S8FS-G01512CD
Availability: OutOfStock

Omron S8FS-G01512CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 12V dc dc Output, 1.3A Output, 15W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8FS-G01512CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 12V dc dc Output, 1.3A Output, 15W

Part Number : S8FS-G01512CD

Availability: Sold out

Detailed Description
Specifications
Downloads

S8FS-G DIN Rail Switch Mode Power Supply

The S8FS-G series of Switch mode DIN Rail power supplies provide you with excellent standard performance and reliability. They do not require transformers for control circuits plus have in built IEC 61558-2-16 compliant transformers so no need for a transformer with compound windings. The S8FS0G power supplies are excellent with machine tools and semi-conductor equipment plus reduce costs and space. The power supplies include a wealth of features including operating within harsh vibration environments, high temperatures, unstable input voltage and altitudes up to 3000 m.

Part Number S8FS-G01512CD

The S8FS Switch mode, Din Rail mounted power supply is a covered type, screw terminal power supply. S8FS-G01512CD has a power rating of 15 W and an output voltage of 12 V dc plus a rated input voltage of 100 V ac to 240 V ac. This model is natural air cooling.

Features and Benefits.

• Covered type power supply

• Screw terminal

• Built-in transformer

• Design stops screws from falling out of the terminal block

• Front cover

• Resistant to harsh environments

• DIN Rail Mounted

• Green output indicators

• Natural air cooling

• Power rating 15 W

• Output voltage 12 V dc

• Input voltage 100 V ac to 240 V ac

• Rated output current 1.3 A

• Harmonic current emissions

• Efficiency 84% min.

• Overload and over voltage protection

• Space saving

• Weight 250g

• 10 Year life expectancy

Safety and Storage.

Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.

Shock resistance 150 m/s**2 in each 6 directions 3 times.

Standards

EN 61000-3-2
UL 508 (Listing, excluding models with connector option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)

Brand	Omron
Series	S8FS-G
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	100 → 240V ac
AC or DC Output Voltage	dc
Output Voltage	12V dc
Output Current	1.3A
Dimensions	137 x 88.2 x 36.2mm
Width	137mm
Depth	88mm
Height	36mm
Maximum Temperature	+70°C
Load Regulation	1%
Output Voltage Adjustment Range	-10 → +15%
Ripple And Noise	40mV Pk-Pk
MTBF	135000h
Mounting Type	DIN Rail Mount

Omron S8FS-G01512CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 12V dc dc Output, 1.3A Output, 15W

DOWNLOAD CATALOG

S8FS-G01512CD S8FS-G Datasheet 0900766b8168df29
