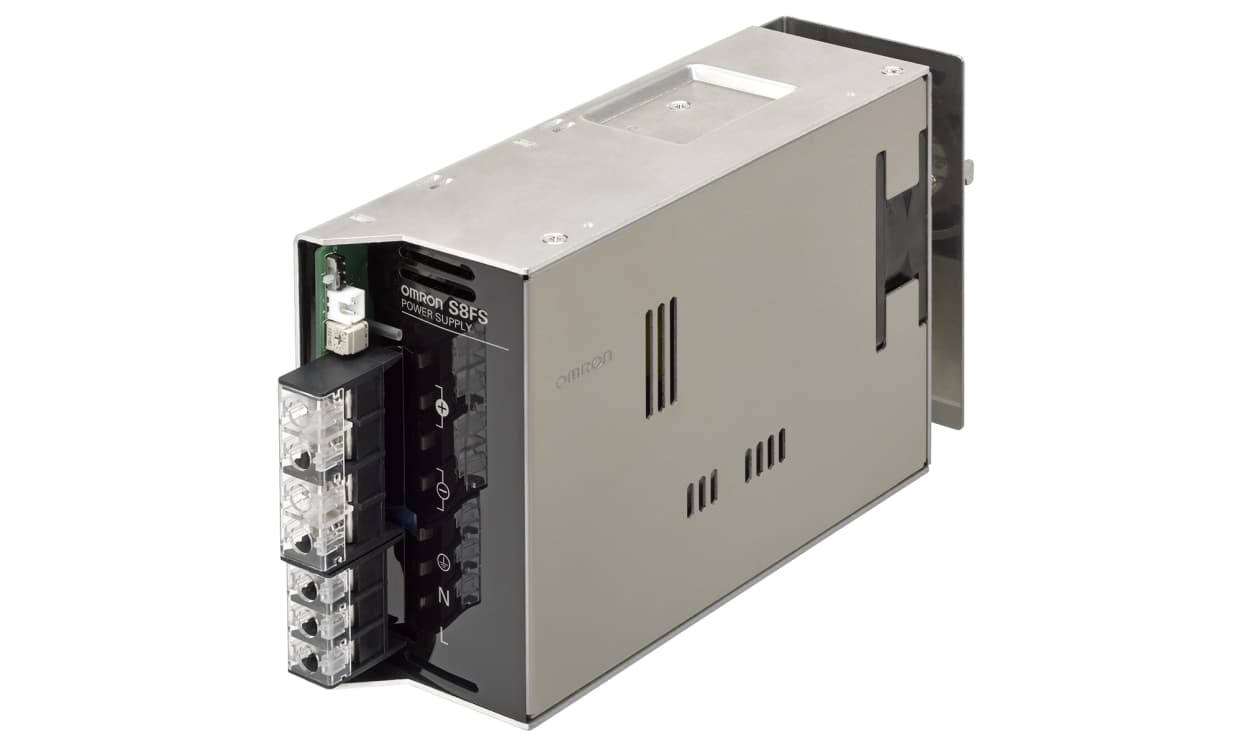

Name: Omron S8FS-G30048CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 48V dc dc Output, 7A Output, 300W
Brand: OMRON
SKU: S8FS-G30048CD
Availability: OutOfStock

Omron S8FS-G30048CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 48V dc dc Output, 7A Output, 300W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8FS-G30048CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 48V dc dc Output, 7A Output, 300W

Part Number : S8FS-G30048CD

Availability: Sold out

Detailed Description
Specifications
Downloads

S8FS-G DIN Rail Switch Mode Power Supply

The S8FS-G series of Switch mode DIN Rail power supplies provide you with excellent standard performance and reliability. They do not require transformers for control circuits plus have in built IEC 61558-2-16 compliant transformers so no need for a transformer with compound windings. The S8FS0G power supplies are excellent with machine tools and semi-conductor equipment plus reduce costs and space. The power supplies include a wealth of features including operating within harsh vibration environments, high temperatures, unstable input voltage and altitudes up to 3000 m.

Part Number S8FS-G30048CD

The S8FS Switch mode mounted Din Rail mounted power supply is a covered type, screw terminal power supply. S8FS-G30048CD has a power rating of 300 W and an output voltage of 48 V dc plus a rated input voltage of 100 V ac to 240 V ac. This model is natural air cooling.

Features and Benefits.

• Covered type power supply

• Screw terminal

• Built-in transformer

• Design stops screws from falling out of the terminal block

• Front cover

• Resistant to harsh environments

• DIN Rail Mounted

• Green output indicators

• Natural air cooling

• Power rating 300 W

• Output voltage 48 V dc

• Input voltage 100 V ac to 240 V ac (Permissible range 85 V ac to 264 V ac, 120 V dc to 370 V dc)

• Rated output current 7 A

• Harmonic current emissions

• Efficiency 82% min.

• Space saving

• Weight 700g

• 10 Year life expectancy

Safety and Storage.

Vibration resistance 10 Hz to 55 Hz. 0.375 0.26 mm single amplitude in each 3 directions for 2 hours.

Shock resistance 150 m/s**2 in each 6 directions 3 times.

Standards

Safety Standards.
EN 61000-3-2
UL 508 (Listing, excluding models with connector option or remote control option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote control option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option remote control option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)

Brand	Omron
Series	S8FS-G
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	100 → 240V ac
AC or DC Output Voltage	dc
Output Voltage	48V dc
Output Current	7A
Dimensions	220.1 x 109.5 x 42.5mm
Height	43mm
Width	220.1mm
Depth	110mm
Minimum Temperature	-20°C
Standards Met	CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, cULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1
Maximum Temperature	+70°C
Output Voltage Adjustment Range	-10 → +15%
Ripple And Noise	330mV Pk-Pk
MTBF	135000h
