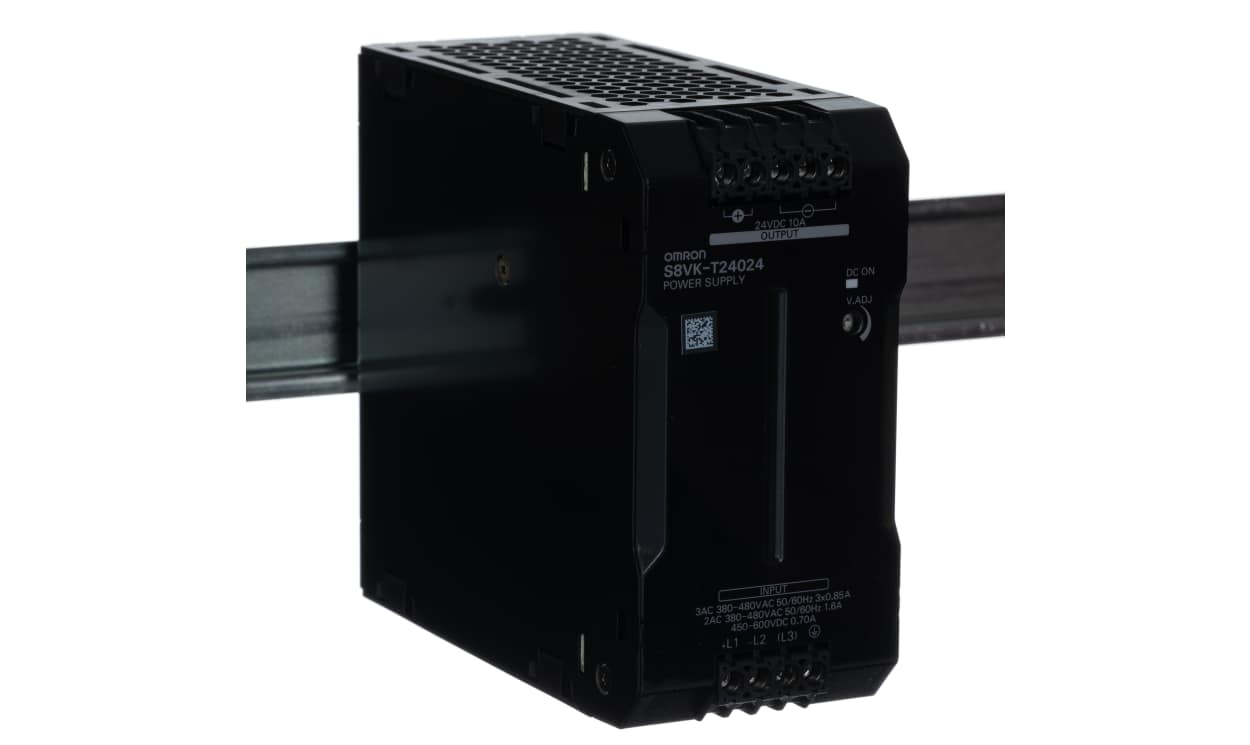

Omron S8VK-T24024, S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480V ac ac Input, 24V dc dc Output, 10A Output, 240W

Name: Omron S8VK-T24024, S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480V ac ac Input, 24V dc dc Output, 10A Output, 240W
Brand: OMRON
SKU: S8VK-T24024
Availability: OutOfStock

Part Number : S8VK-T24024

Book type power supply, Pro, 240 W, 24VDC, 10A, DIN rail mounting

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron S8VK-T Series DIN Rail Power Supply, 380 to 480V AC Input Voltage, 240W Power Rating - S8VKT24024

This DIN rail power supply is designed for efficient power delivery in various industrial settings. It converts an AC input voltage of 380 to 480V into a regulated 24V DC output, ensuring stable operation in environments that require consistent electrical performance. The design focuses on space efficiency and installation ease, making it a useful component in automation and control systems.

Features & Benefits

• High efficiency of 89% reduces energy expenses
• Overvoltage and short circuit protection enhance system safety
• Load regulation capability of 1.5% ensures stable output
• Robust temperature range from -40 to +70°C
• Ripple and noise level of 190mV Pk-Pk minimises electrical interference

Applications

• Powers PLCs and control systems in factories
• Ideal for operating sensors and actuators in automation systems
• Suitable for industrial equipment that requires stable DC voltage
• Used in panel building for compact installations

How should I install this power supply on a DIN rail?

It can be easily mounted on a standard DIN rail by following the provided instructions for a secure fit.

What is the maximum current output this device can provide?

The unit can consistently deliver a maximum output current of 10A.

Can this power supply be used in outdoor applications?

It is intended for indoor use

adequate protection against environmental factors is needed if used outdoors.

Is it possible to adjust the output voltage?

Yes, the output voltage can be adjusted within the range of 24V to 29.5V to meet specific requirements.

What maintenance is required for this unit?

Routine checks for secure connections and general cleanliness will ensure optimal performance

extensive maintenance is not necessary.

Brand	Omron
Series	S8VK-T
Type	Switched Mode
Electrical Phase	2, 3
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	380 → 480V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	10A
Dimensions	150 x 125 x 60mm
Depth	140mm
Width	125mm
Height	125mm
Maximum Temperature	+70°C
Minimum Temperature	-40°C
Efficiency	89%
Mounting Type	DIN Rail Mount
Load Regulation	1.5%
Ripple And Noise	190mV Pk-Pk

Book type power supply, Pro, 240 W, 24VDC, 10A, DIN rail mounting

Omron S8VK-T24024, S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480V ac ac Input, 24V dc dc Output, 10A Output, 240W

DOWNLOAD CATALOG

S8VK-T24024 Brochure - The Choice is Clear A700000011915725
