OMRON SS-01GL13T | Hinge Lever Limit Switch | SPDT, IP40, 125 V AC
Part Number : SS-01GL13T

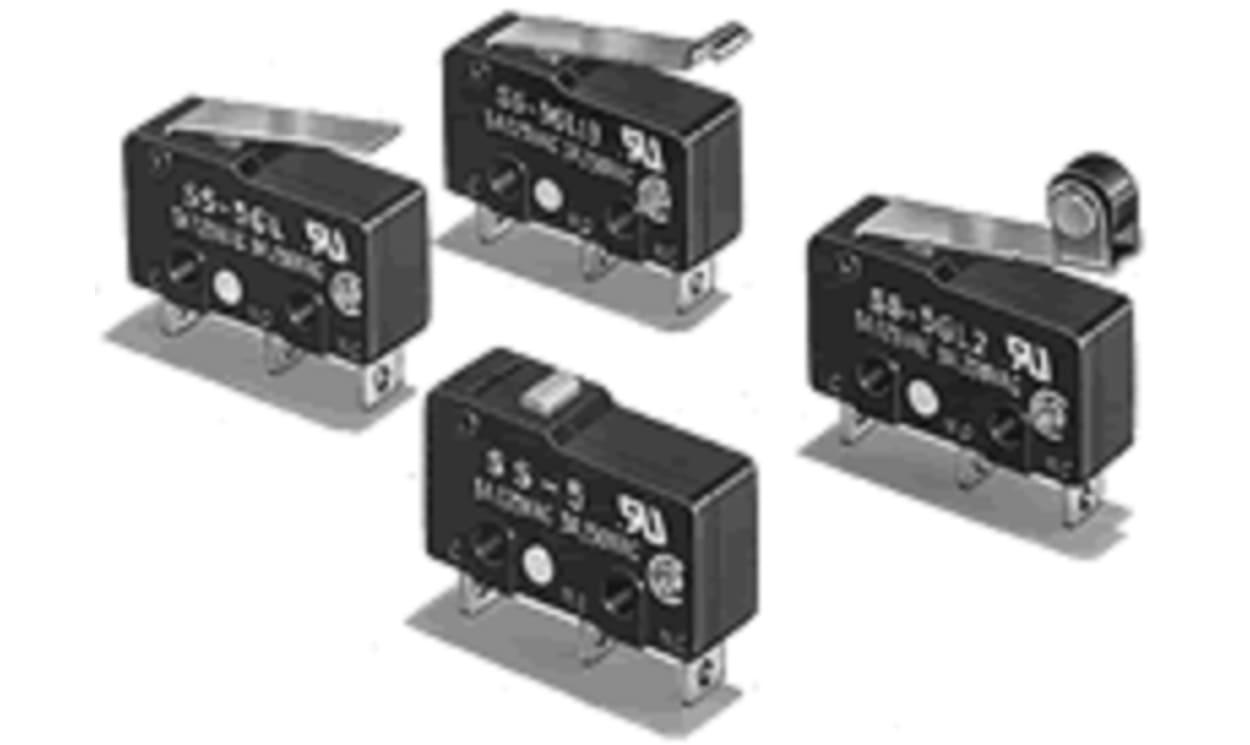

The OMRON SS-01GL13T is a hinge lever limit switch rated 125 V AC max. It is specified with an IP40 rating.
- SPDT pole and throw
- Maximum voltage: 125 V AC
- IP40 enclosure rating
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
The Omron switch is sub miniature basic switch offers high reliabilIty and securIty. a variety of models are available, wIth operating force ranging from low to high. The Omron's best-selling micro switches of a wide variety from 0.1A to 10.1A.
Permissible operating speed 0.1 mm to 1 m/s (for pin plunger models)
Insulation resistance 100 MΩ minimum (at 500 VDC with insulation tester)
Degree of protection IEC IP40
Degree of protection against electric shock class I
Proof tracking index (PTI) 175
Ambient operating temperature -25°C to +85°C (at ambient humidity of 60% maximum)
Insulation resistance 100 MΩ minimum (at 500 VDC with insulation tester)
Degree of protection IEC IP40
Degree of protection against electric shock class I
Proof tracking index (PTI) 175
Ambient operating temperature -25°C to +85°C (at ambient humidity of 60% maximum)
| Brand | Omron |
| Actuator Type | Hinge Lever |
| IP Rating | IP40 |
| Pole and Throw Configuration | SPDT |
| Maximum AC Voltage | 125V |
OMRON SS-01GL13T | Hinge Lever Limit Switch | SPDT, IP40, 125 V AC
