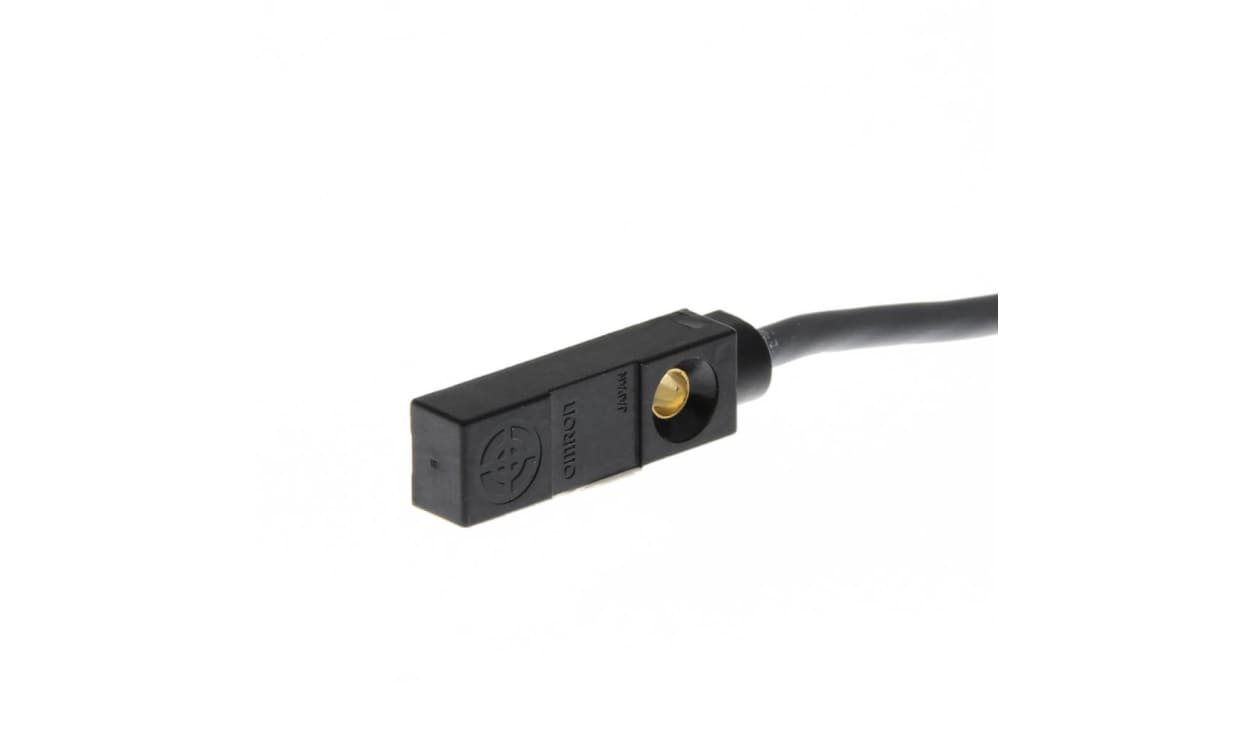

Omron TL-W1R5MC1, Inductive Block Proximity Sensor, 1.5 mm Detection, NPN NO, 12 → 24 V dc

Name: Omron TL-W1R5MC1, Inductive Block Proximity Sensor, 1.5 mm Detection, NPN NO, 12 → 24 V dc
Brand: OMRON
SKU: TL-W1R5MC1
Availability: OutOfStock

Part Number : TL-W1R5MC1

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron TL-W Series Proximity Sensor, 1.5mm Detection Range, 2m Cable Length - TL-W1R5MC1

This inductive proximity sensor is designed for versatility in industrial applications. Known for its compact block body style, it features a detection range of 1.5mm and is non-flush mounted, making it ideal for various configurations in automation systems. The sensor operates within a supply voltage of 12 to 24 V DC, ensuring compatibility across different setups while providing robust performance.

Features & Benefits

• Inductive technology detects metallic objects without contact
• Compact design facilitates easy installation in tight spaces
• Operating temperature range from -25°C to +70°C accommodates diverse environments
• Maximum switching frequency of 1 kHz enhances responsiveness

Applications

• Utilised in automation systems for precise positioning
• Ideal for non-contact detection in assembly lines
• For use in environments requiring IP67-rated sensors
• Suitable for machinery where space is constrained

What type of output does it provide, and how does this impact its integration?

The sensor features an NPN output, allowing it to sink current when activated, making it easy to connect with direct current control systems. This simplifies integration into various setups, enabling effective monitoring and control of machinery.

How does the IP67 rating benefit the sensor in challenging environments?

The IP67 rating ensures that the sensor is dust-tight and can withstand temporary immersion in water. This resilience makes it suitable for use in harsh conditions, such as factories or outdoor settings where moisture and debris are commonplace.

What is the significance of the 1.5 mm detection range?

This detection range enables the sensor to accurately identify metallic objects at close proximity, making it highly effective for applications where precision is critical, such as material handling and automated assembly lines.

Brand	Omron
Sensor Technology	Inductive
Detection Range	1.5 mm
Body Style	Block
Digital Switching Output Type	NPN
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	25mm
Mounting Type	Non-Flush
Width	8mm
Housing Material	ABS
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Depth	5.5mm
Shielding	Unshielded
Maximum Switching Frequency	1kHz

Omron TL-W1R5MC1, Inductive Block Proximity Sensor, 1.5 mm Detection, NPN NO, 12 → 24 V dc

DOWNLOAD CATALOG

TL-W1R5MC1 Brochure - Inductive Proximity Sensors A700000014068258
