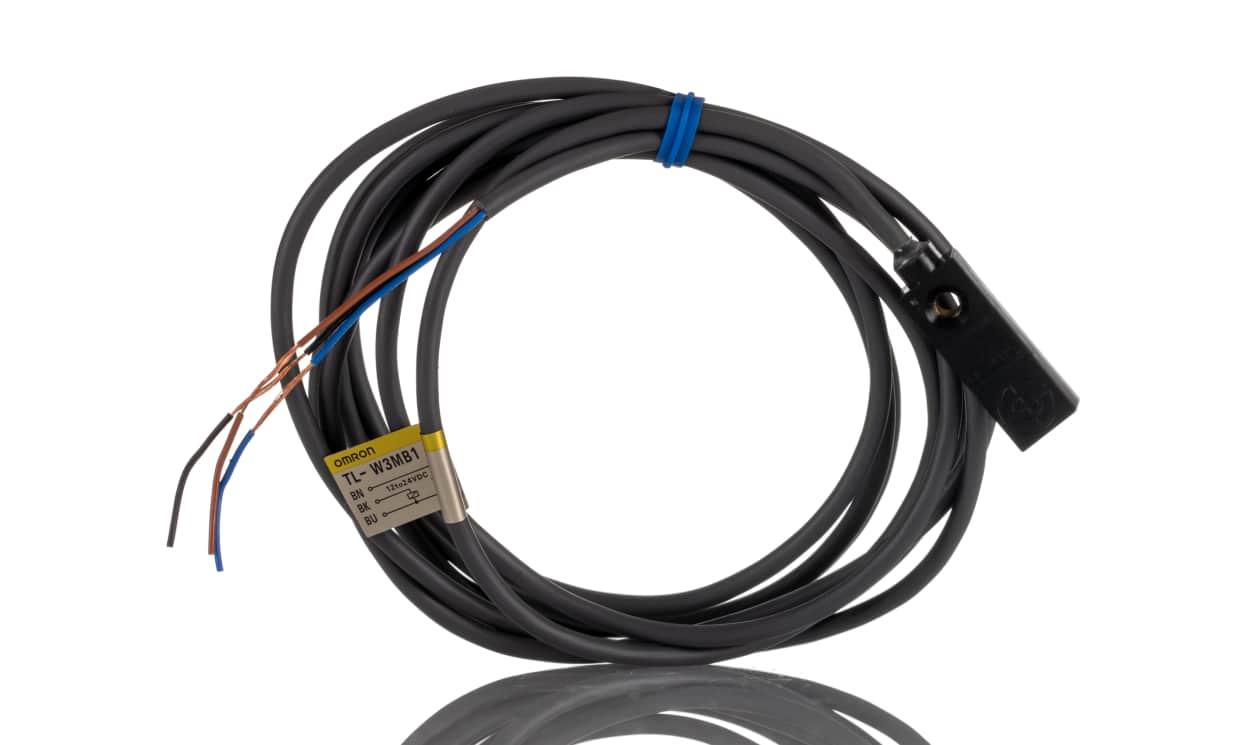

Omron TL-W3MB1 2M, Inductive Block Proximity Sensor, 3 mm Detection, PNP NO, 12 → 24 V dc

Name: Omron TL-W3MB1 2M, Inductive Block Proximity Sensor, 3 mm Detection, PNP NO, 12 → 24 V dc
Brand: OMRON
SKU: TL-W3MB1 2M
Availability: OutOfStock

Part Number : TL-W3MB1 2M

Availability: Sold out

Detailed Description
Specifications
Downloads

TL-W3 Inductive Sensors

Features and benefits

Space saving, low profile rigid aluminium die cast housing

All provided with an operation indicator

Mounting front or rear of the housing

Protected from water or oil splashes

Standards

IEC IP67

OMRON Proximity Sensor, ABS Cable, Non-Shielded - TL-W3 Series - TL-W3MB1 2M

Stay on top of the positioning of workpieces and equipment with help from this OMRON proximity sensor. It quickly detects the presence of ferrous metals, such as iron, aluminium and brass, making it just what you need in heavy engineering settings. Don't stress about wear and tear, as the component's electromagnetic sensing style means no physical contact is made. Thanks to its robust ABS housing, you can put this device to the test in harsh industrial settings, as it resists chemicals, abrasion and impact. Compact dimensions of 30 (L) x 10 (W) x 6mm (H) mean you save on mounting space.

Features & Benefits

• Supplied with a 2m cable for quick and convenient assembly
• PVC cable jacket provides insulation to protect against electric shocks
• Block style for easy mounting on flat surfaces
• Broad operating voltage range between 12 and 24V DC for compatibility with common power supplies

Applications

• Beverage production
• Automotive manufacturing
• Process control
• Earthmoving equipment

Is this proximity sensor heat-resistant?

Yes, its ABS housing resists heat, so you can use it in demanding operating temperatures ranging between -25°C and +70°C.

Standards

IEC IP67

Brand	Omron
Sensor Technology	Inductive
Body Style	Block
Detection Range	3 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	30mm
Mounting Type	Non-Flush
Housing Material	ABS
Width	10mm
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Depth	6mm
Short Circuit Overload Protection	Yes
Series	TL-W

Omron TL-W3MB1 2M, Inductive Block Proximity Sensor, 3 mm Detection, PNP NO, 12 → 24 V dc

DOWNLOAD CATALOG

TL-W3MB1 2M Datasheet - TL-W3MB1 2M A700000010489280

TL-W3MB1 2M Brochure - Inductive Proximity Sensors A700000010489296
