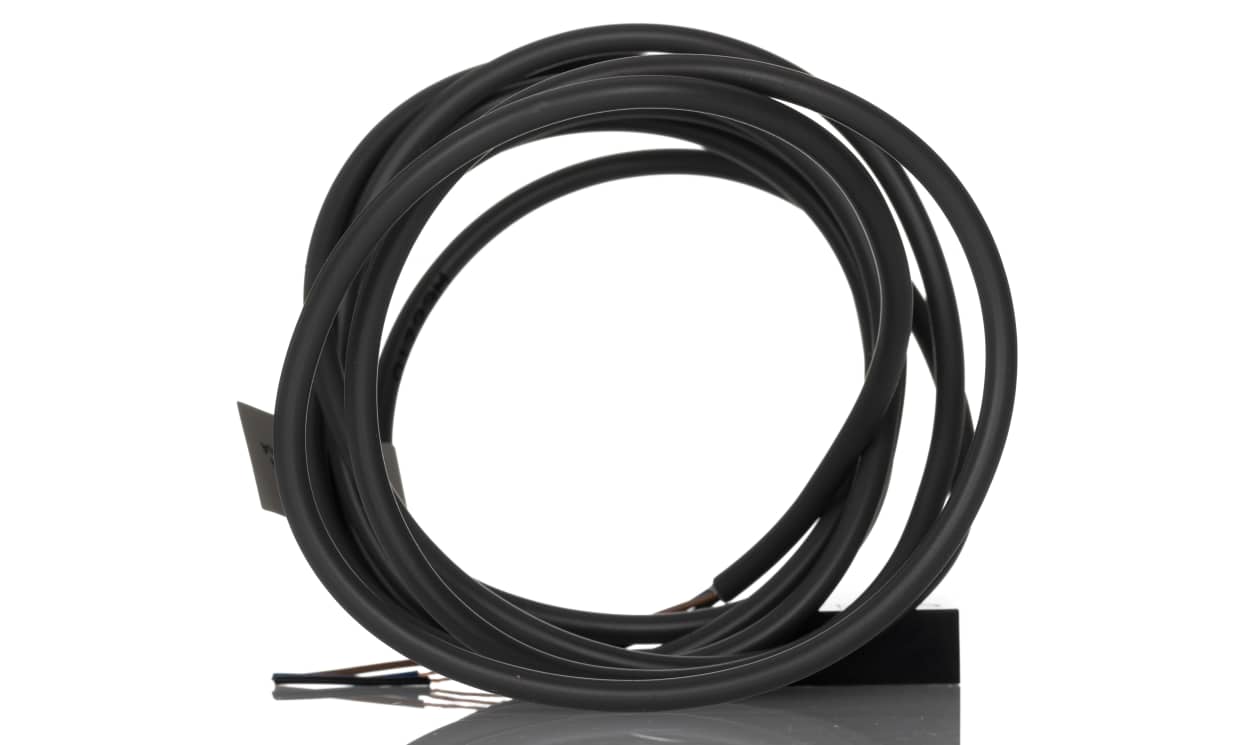

Omron TL-W5MB1 2M, Inductive Block Proximity Sensor, 5 mm Detection, PNP NO, 10 → 30 V dc

Part Number : TL-W5MB1 2M

Availability: Sold out

Detailed Description
Specifications

Omron Proximity Sensor, Inductive Sensor Technology, IP67 - TL-W5MB1 2M

This is a flat-type proximity sensor with an unshielded design. It operates on a DC 3-wire system with a PNP output in Normally Open (NO) mode. The sensor has a sensing distance of 5 mm and comes with a 2-metre cable. Its compact size (18 mm x 10 mm x 30.5 mm) makes it suitable for various industrial applications.

Features & Benefits

• Utilises advanced retro-reflective technology with Modulated Scatter Reflective (M.S.R.), ensuring accurate object detection
• Covers a range of 5 mm ±10%
• Employs a red LED (660 nm) for reliable performance
• Operate or reset time is a swift 0.5 ms maximum
• Functions reliably between -25°C and 70°C (with no freezing or condensation)

Applications

• Ideal for detecting ferrous metal objects with a minimum diametre of 75 mm
• Used in conveyor systems, packaging lines, and assembly processes

What is the sensing range of the TL-W5MB1 2M?

The sensing distance is 5 mm ±10%.

Can I use it in outdoor environments?

The sensor is designed for indoor use and operates reliably within the specified ambient temperature range.

What type of output does it have?

The TL-W5MB1 2M features a PNP open collector output.

What is the response time of the sensor?

The operate or reset time is 0.5 ms maximum.

Is it resistant to oil?

Yes, the sensor has an IP67 rating, making it oil-proof.

Standards

IEC IP67

Brand	Omron
Sensor Technology	Inductive
Detection Range	5 mm
Body Style	Block
Digital Switching Output Type	PNP
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	30.5mm
IP Rating	IP67
Mounting Type	Non-Flush
Housing Material	ABS
Width	18mm
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Standards Met	CE
Maximum Switching Frequency	500Hz
Maximum Operating Temperature	+70°C
Depth	10mm
