Omron V-163-1C5, Long Leaf Lever Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPDT, IP40

Name: Omron V-163-1C5, Long Leaf Lever Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPDT, IP40
Brand: OMRON
SKU: V-163-1C5
Availability: OutOfStock

Part Number : V-163-1C5

Miniature basic switch

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

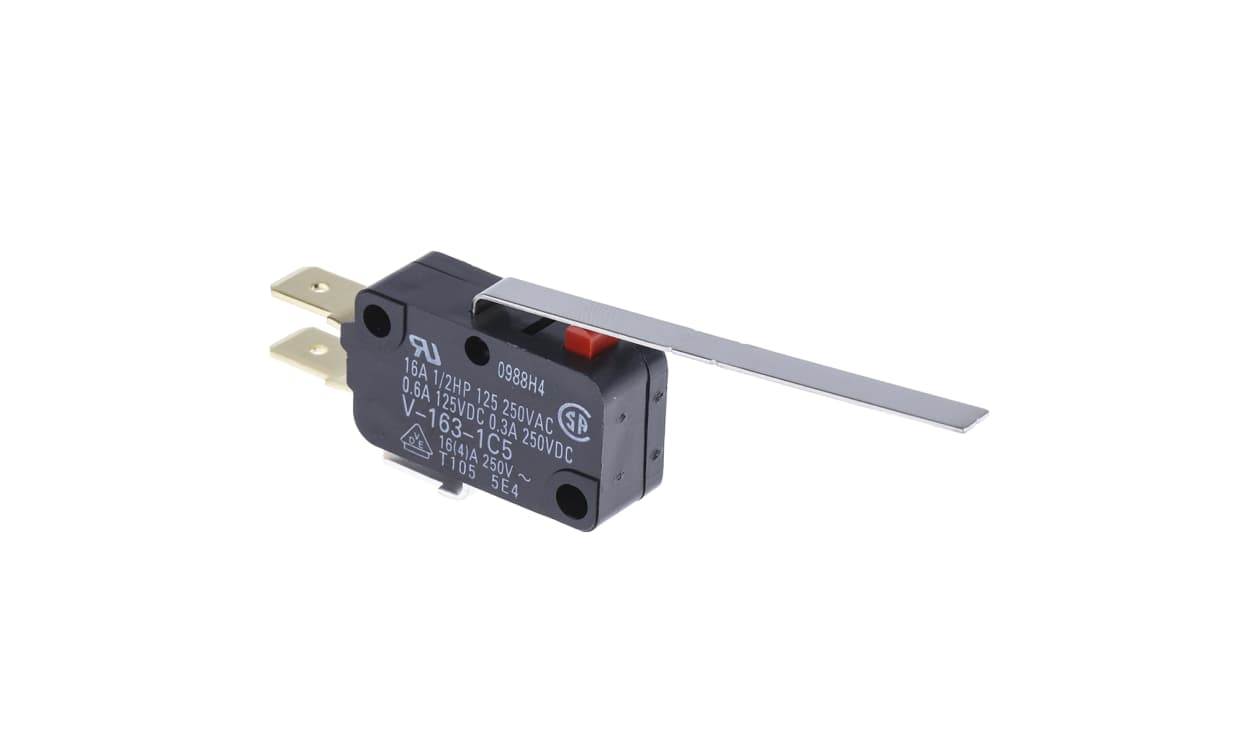

Omron Microswitch

The Omron V16 series miniature microswitch has a long hinge lever actuator and a contact rating of 16A at 250VAC. This is a highly reliable SPDT contact configuration microswitch has silver alloy contact material. It can be used for interrupting current when doors are opened or closed.

Features and Benefits

Operating force is 1.96 N
Mechanical life of 500000000 operations
Operating temperature is between -25°C and 80°C

Certifications

IP40 rated

Brand	Omron
Actuator Type	Long Leaf Lever
Terminal Type	Tab
Contact Current Rating	16 A @ 250 V ac
Contact Configuration	SPDT
IP Rating	IP40
Operating Force	1.96 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Contact Material	Silver Alloy
Mechanical Life	50000000Operations
Release Force	0.06N
Operating Temperature Range	-25 → +80°C

Miniature basic switch

Omron V-163-1C5, Long Leaf Lever Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPDT, IP40

DOWNLOAD CATALOG

V-163-1C5 Miniature Basic Switch s no 0900766b8026cd42
