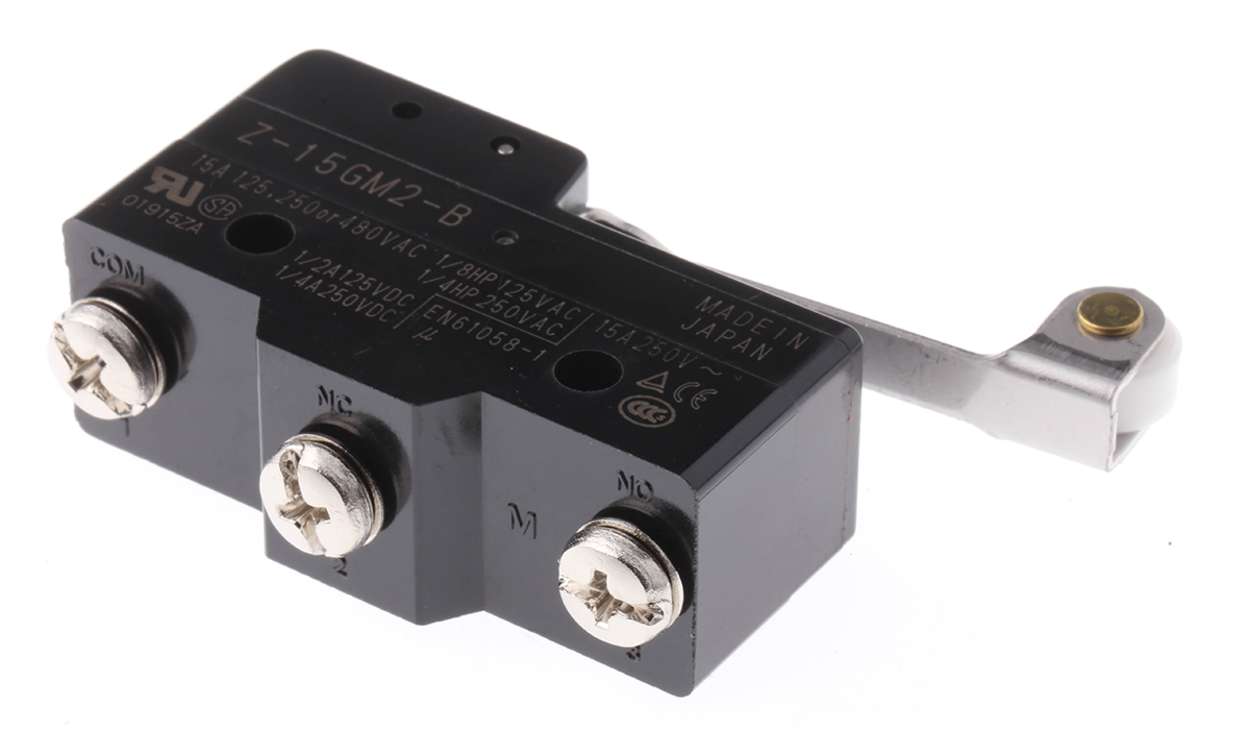

Omron Z-15GM2-B, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

Name: Omron Z-15GM2-B, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GM2-B
Availability: OutOfStock

Part Number : Z-15GM2-B

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series Z Limit Switch, NO/NC Normal State Configuration, 15A Maximum Current - Z-15GM2-B

This limit switch serves as a versatile device for various automation and control applications. Featuring a roller lever actuator, it operates in both normally open (NO) and normally closed (NC) configurations. Made from thermosetting resin, this switch has dimensions of 49.2mm in length and 17.45mm in depth. With a mechanical life of 20 million operations, it supports a maximum current of 15A, making it suitable for industrial environments.

Features & Benefits

• High switching capacity of 15A for various applications
• SPDT configuration for flexible circuit control
• Roller lever actuator for dependable operation
• Snap action mechanism for quick response
• Constructed from thermosetting resin for durability
• Operates effectively in a temperature range of -25 to +80°C

Applications

• Control in industrial machinery
• Position detection in automation systems
• Safety circuits for limit control
• Utilised in mechanical and electrical systems
• requiring high repeat accuracy

Can it operate in high-temperature environments?

Yes, it functions effectively in temperatures up to +80°C.

Is it suitable for micro load applications?

It is designed for loads up to 15A, making it ideal for standard applications.

Will it withstand mechanical shocks?

The durable construction offers resilience against mechanical shocks.

Can it be easily mounted in control panels?

Yes, it includes mounting holes compatible with standard screws.

Is there a specific wiring method required?

Use appropriate wire sizes and adhere to standard electrical installation practices.

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Screw
Series	Z
Action Type	Snap Action
Length	49.2mm
Minimum Operating Temperature	-25°C
Width	39.4mm
Maximum Operating Temperature	+80°C
Depth	17.45mm
Mechanical Life	20000000Operations
Operating Force	2.35 N
