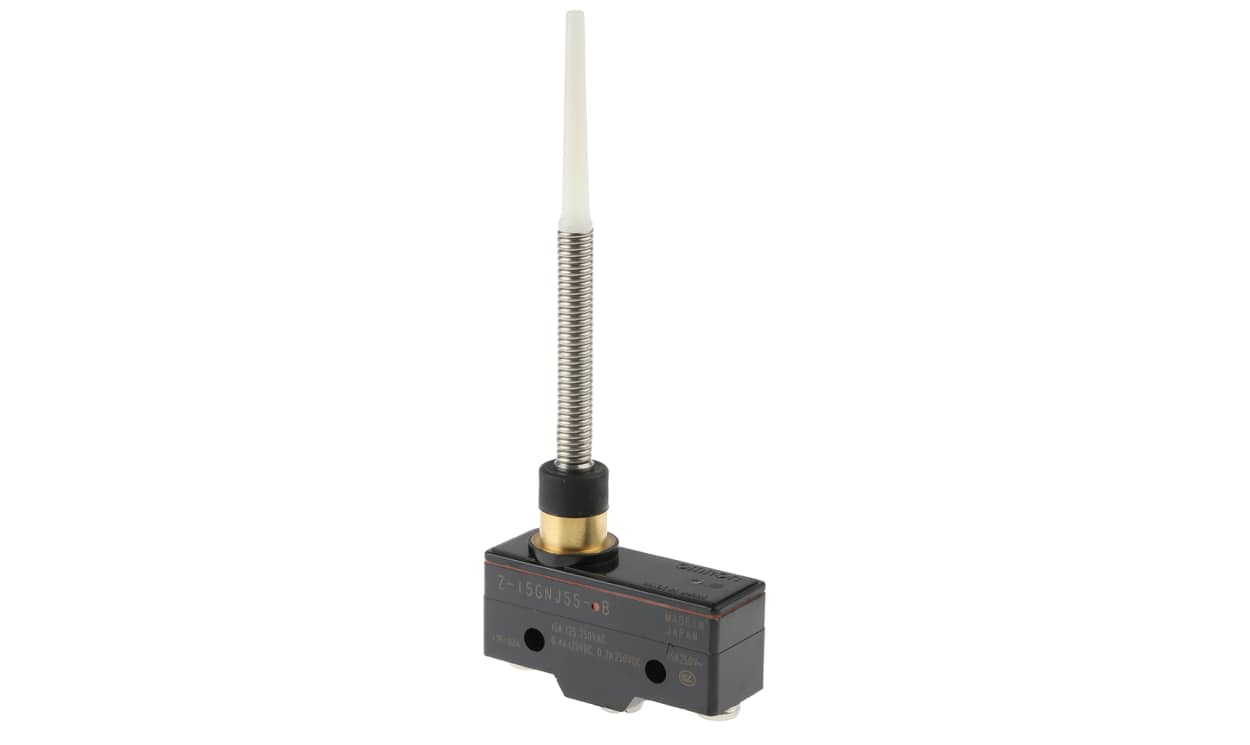

Omron Z-15GNJ55-B, Z Series Coil Spring Limit Switch, NO/NC, IP62, SPDT, Thermosetting Resin Housing, 250V ac Max, 15A Max

Name: Omron Z-15GNJ55-B, Z Series Coil Spring Limit Switch, NO/NC, IP62, SPDT, Thermosetting Resin Housing, 250V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GNJ55-B
Availability: OutOfStock

Part Number : Z-15GNJ55-B

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series Z Limit Switch, SPDT Pole Configuration, 15A Maximum Current - Z-15GNJ55B

This limit switch is designed for precision in automation applications. The SPDT configuration ensures versatile operation in various settings. Constructed from thermosetting resin, it boasts an IP62 rating, providing effective dust and water protection. With dimensions of 49.2mm in length and 111.3mm in width, this coil spring actuator switch is built for durability and efficiency.

Features & Benefits

• Capable of handling up to 15A current for diverse requirements
• Snap-action switch mechanism guarantees quick, reliable responses
• Mechanical life of 1 million operations ensures long-term usability
• Screw connection type allows for straightforward installation

Applications

• Used in automated machinery for precise control
• Ideal for safety in industrial environments
• Suitable for integration into conveyor systems for reliable operation
• Utilised in robotic requiring precise positioning

How does the IP rating enhance the functionality of this switch?

The IP62 rating signifies protection against dust ingress and limited water exposure, making it suitable for both indoor and outdoor applications without compromising performance.

What is the significance of using a thermosetting resin for the housing?

The thermosetting resin contributes to the switch's structural integrity and durability, offering resistance to heat and mechanical stress, which enhances its longevity in demanding environments.

Can this switch be used in environments with varying temperatures?

Yes, operating within temperatures ranging from -15°C to +80°C allows for flexibility in installation, catering to a variety of industrial conditions without performance loss.

Brand	Omron
Actuator Type	Coil Spring
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP62
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	250V
Maximum DC Voltage	250V
Connection Type	Screw
Series	Z
Action Type	Snap Action
Length	49.2mm
Minimum Operating Temperature	-15°C
Maximum Operating Temperature	+80°C
Standards Met	CE
Depth	17.45mm
Width	111.3mm
Mechanical Life	1000000Operations
Operating Force	2.45 → 3.43 N

Omron Z-15GNJ55-B, Z Series Coil Spring Limit Switch, NO/NC, IP62, SPDT, Thermosetting Resin Housing, 250V ac Max, 15A Max
