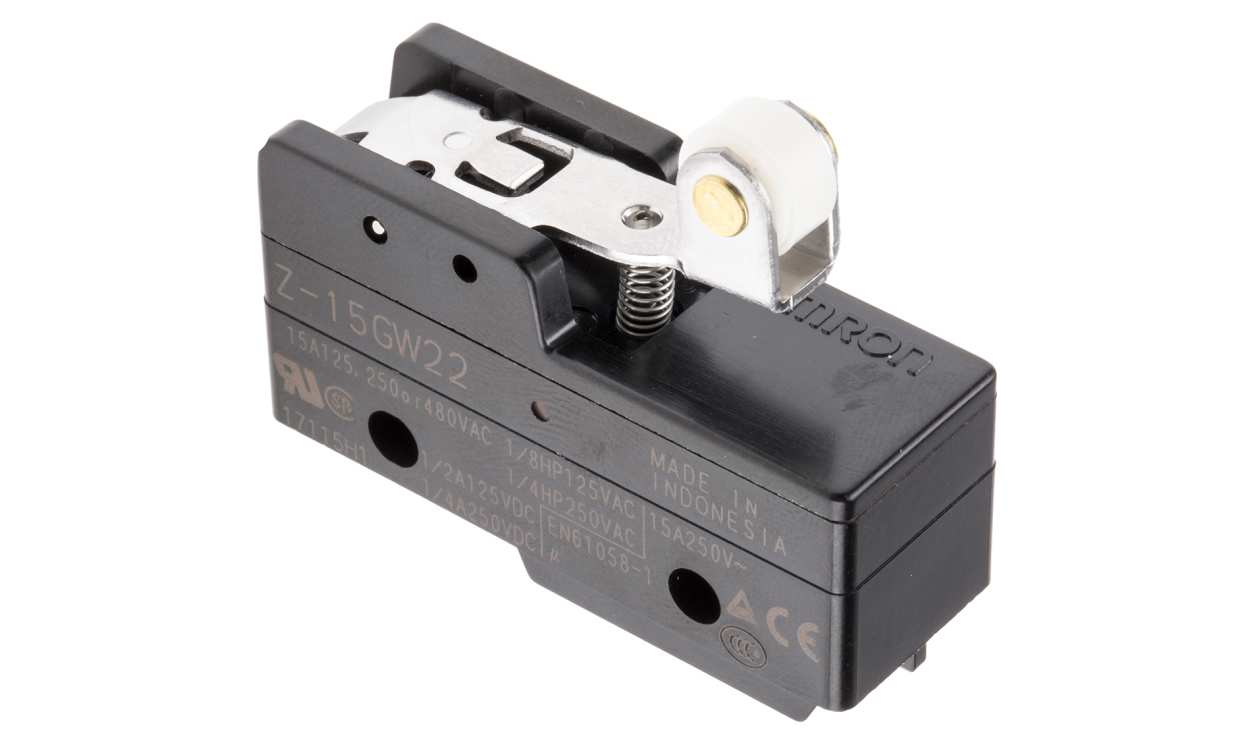

Omron Z-15GW22, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

Name: Omron Z-15GW22, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GW22
Availability: OutOfStock

Part Number : Z-15GW22

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Limit Switch, IP00 IP Rating, 500V Maximum AC Voltage - Z15GW22

This limit switch by Omron is a versatile and reliable component for various automation and mechanical applications. With snap action and roller lever actuator types, this high-precision switch offers a wide range of features to enhance operational efficiency.

Features & Benefits

• Snap action design for quick and precise switching operation
• Roller lever actuator for versatile application possibilities
• Solder connection type for easy installation and secure connection
• Thermosetting resin housing material for durability and protection
• IP00 rating ensures protection against dust and limited ingress of moisture
• Wide operational temperature range from -25°C to +80°C for diverse applications
• Configurable normal state as NO/NC and pole and throw as SPDT for flexibility

Applications

• Suitable for use in industrial automation systems
• Ideal for machinery and equipment control applications

Can it withstand high operating temperatures?

This limit switch is designed to operate effectively in a wide temperature range from -25°C to +80°C.

Will it provide reliable switching action for industrial automation systems?

Yes, the snap action design and roller lever actuator ensure precise switching performance for various applications.

Is it easy to install with its solder connection type?

The solder connection type offers easy installation and secure connectivity for efficient setup.

Can it be used in machinery control applications?

Yes, this limit switch is suitable for controlling machinery and equipment effectively.

Does it offer protection against dust and moisture?

With an IP00 rating, this switch provides protection against dust and limited moisture ingress.

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Solder
Series	Z
Action Type	Snap Action
Length	49.2mm
Depth	17.45mm
Width	39.4mm
Standards Met	CSA Certified
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
Mechanical Life	20000000Operations
