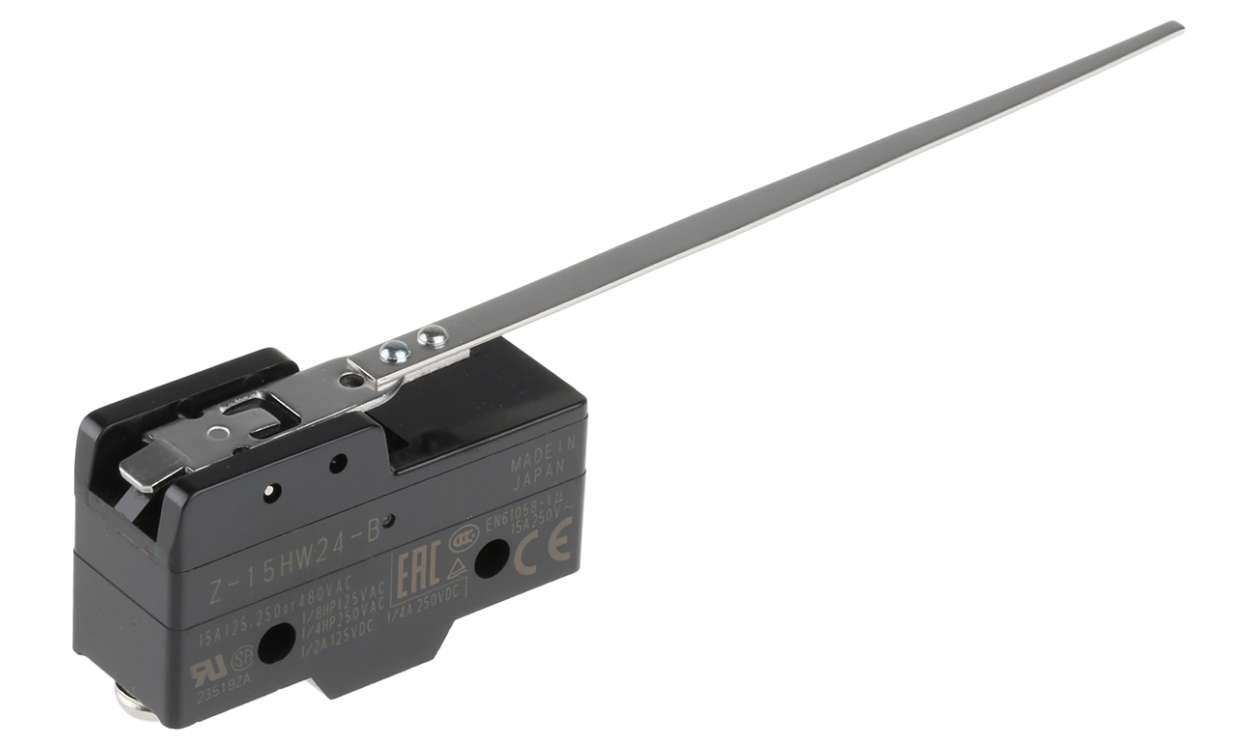

Omron Z-15HW24-B, Z Series Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max

Name: Omron Z-15HW24-B, Z Series Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15HW24-B
Availability: OutOfStock

Part Number : Z-15HW24-B

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series Z Limit Switch, NO/NC Normal State Configuration, 15A Maximum Current - Z-15HW24B

This limit switch is designed for precise control in various automation applications. Featuring a lever type actuator, it allows for easy operation in environments that require dependable performance. The device is suitable for heavy-duty use, ensuring effective actuation within industrial settings where monitoring and interruption of mechanical systems are essential.

Features & Benefits

• SPDT configuration for versatile control options
• Snap action actuator provides rapid response times
• Operates safely with a maximum current of 15A
• Mechanical life of up to 10 million cycles for longevity

Applications

• For assembly line equipment control
• Ideal for conveyor systems that require precise positioning
• Employed in robotics to detect end-of-travel positions
• Suitable for machinery needing reliable on/off switching

How do I install it in my existing equipment?

Installation involves simple mounting using the provided actuator mechanism, typically compatible with standard fittings.

Can it be integrated with PLCs in automated systems?

Yes, it can be easily connected to programmable logic controllers for improved automation integration.

What should I consider regarding its electrical specifications?

Ensure that your system's voltage and current ratings align with the switch's maximum ratings to prevent damage.

Approvals

UL recognised, CSA

Brand	Omron
Actuator Type	Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Series	Z
Action Type	Snap Action
Length	29mm
Depth	17.45mm
Standards Met	CCC, CE, CSA, UL
Minimum Operating Temperature	-25°C
Width	49.2mm
Maximum Operating Temperature	+80°C
Operating Force	1.96 → 2.75 N
Mechanical Life	10000000Cycles
