Omron Series Z Limit Switch, Pole and Throw Configuration SPDT, 15A Maximum Current - Z-15HW78

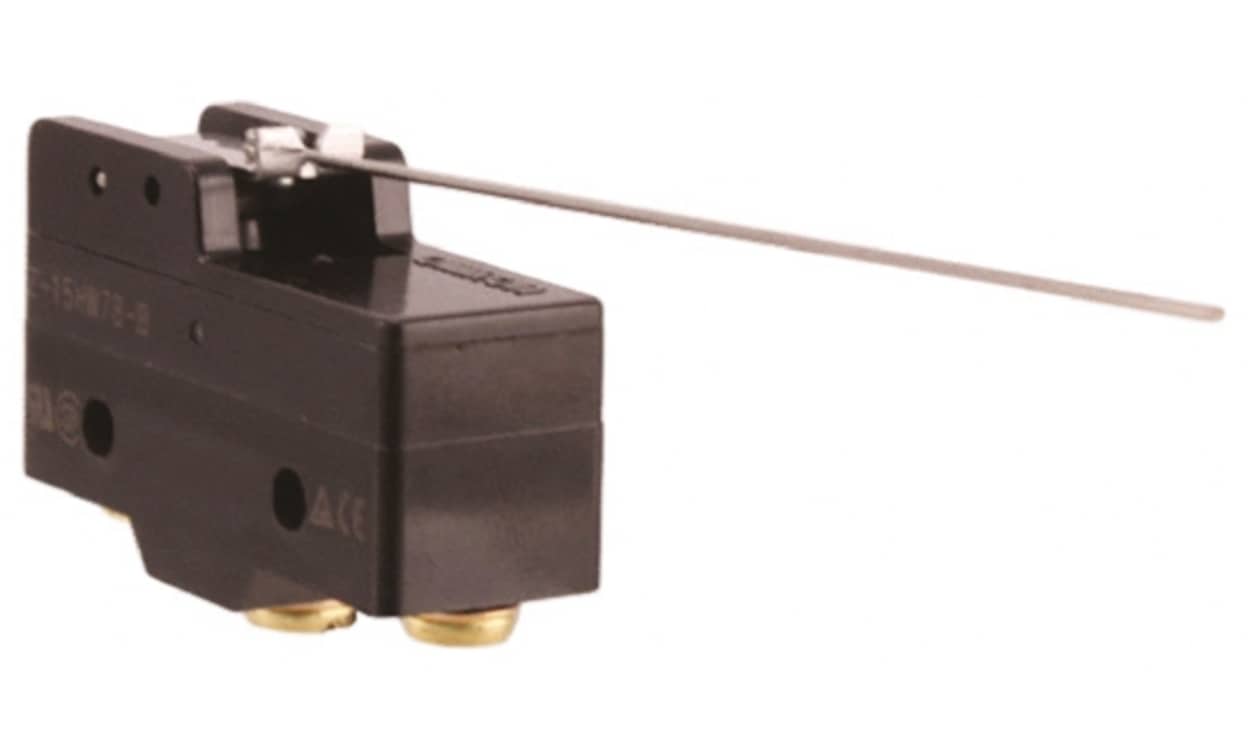

This limit switch is a versatile component designed for a variety of industrial applications. It features a lever actuator constructed from thermosetting resin, ensuring durability in challenging conditions. With dimensions of 49.2mm in length, 32.4mm in width, and 17.45mm in depth, it integrates seamlessly into control systems, providing reliable activation even in demanding environments.

Features & Benefits

• High current capacity of 15 A supports diverse applications
• Snap action mechanism ensures precise and rapid switching
• SPDT configuration allows for flexible wiring options
• Wide temperature operating range from -25°C to +80°C
• Compliant with safety standards: CCC, CE, CSA, UL
• Long mechanical life rated at 20 million operations for reliability

Applications

• Utilised in automated machinery for precise control
• Employed in conveyor systems for positional feedback
• Suitable for limit detection in robotic devices
• Commonly used in safety circuits and interlock systems
• Ideal for requiring high precision switching

What are the environmental considerations for installation?

The switch should be installed in a dry location away from direct exposure to water or oils. It is advisable to avoid locations with sudden temperature fluctuations, which can affect performance.

How does the switch's configuration impact its functionality?

The SPDT configuration allows for both normally open and normally closed circuits, providing flexibility in system design and enabling efficient control in various applications.

What maintenance is required to ensure optimal performance?

Regular inspection is recommended to check for any accumulation of debris around the actuator. Ensure connections are secure and free of corrosion, as this will support long-term functionality and reliability.

Brand	Omron
Actuator Type	Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	250V
Maximum DC Voltage	250V
Connection Type	Solder
Series	Z
Action Type	Snap Action
Length	49.2mm
Standards Met	CCC, CE, CSA, UL
Width	32.4mm
Maximum Operating Temperature	+80°C
Depth	17.45mm
Minimum Operating Temperature	-25°C
Mechanical Life	20000000Operations
