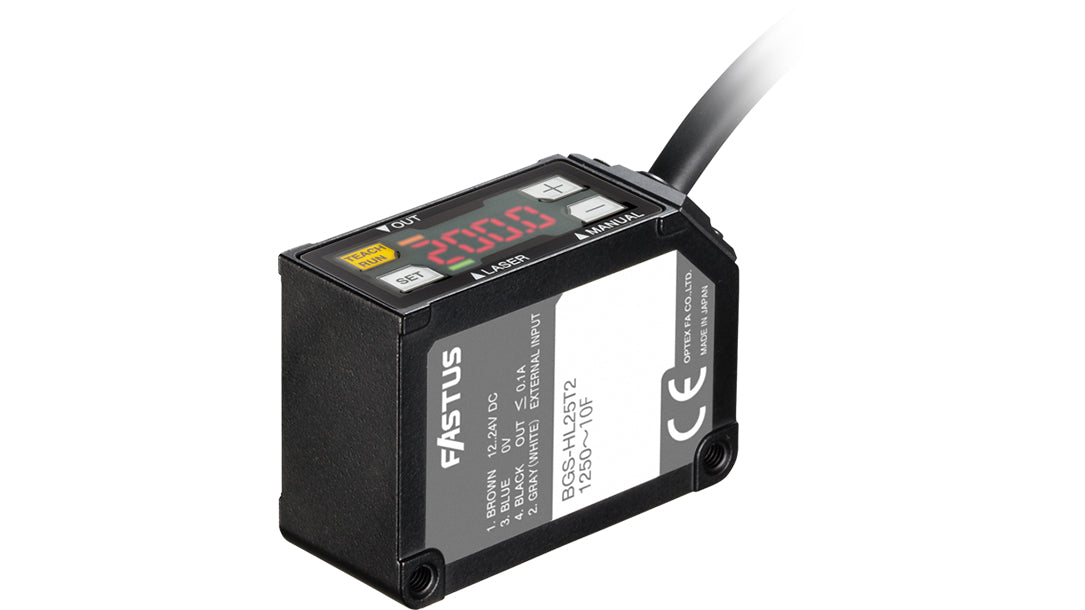

OPTEX FA BGS-HL25TC2 | High-Accuracy Laser Sensor | 50-250 mm, 1 output, M8 connector
The OPTEX FA BGS-HL25TC2 is a high-accuracy laser sensor with a single output, a Class 2 laser and m8 connector connection, working over 50 to 250 mm. The BGS-HL25TC2 is designed to detect small height differences regardless of target colour or material, in line with the rest of the BGS-HL/BGS-HDL Series.
Key features
- Sensing distance: 50 to 250 mm; class 2 red laser, 1 mW max.
- Minimum detectable height difference: 0.8 mm; repeatability: 0.1 mm
- Teaching or manual threshold adjustment; IP67 aluminium housing
- Specifications
| Part Number | BGS-HL25TC2 |
| Brand | OPTEX FA |
| Series | BGS-HL/BGS-HDL Series |
| Type | High-accuracy laser sensor |
| Connection | M8 4-pin connector |
| Sensing Distance | 50 to 250 mm (1.97 to 9.84 in) |
| Light Source | Red laser diode, 655 nm, 1 mW max. |
| Spot Size | ø1 mm |
| Response Time | 1.5 ms min. |
| Control Output | Open collector NPN/PNP selectable, 100 mA max./24 VDC |
| Outputs | 1 output |
| Laser Class | Class 2 |
| Repeatability | 0.1 mm |
| Min. Detectable Height Difference | 0.8 mm (0.031 in) |
Other models in this series
Click a row to open that product.
Related Products
OPTEX FA ZA-BL60D | CMOS Laser Sensor with Background Suppression | 30-60 mm, 2 Outputs, 2 m Cable
OPTEX FA ZA-BL60D | CMOS Laser Sensor with Background Suppression | 30-60 mm, 2 Outputs, 2 m Cable

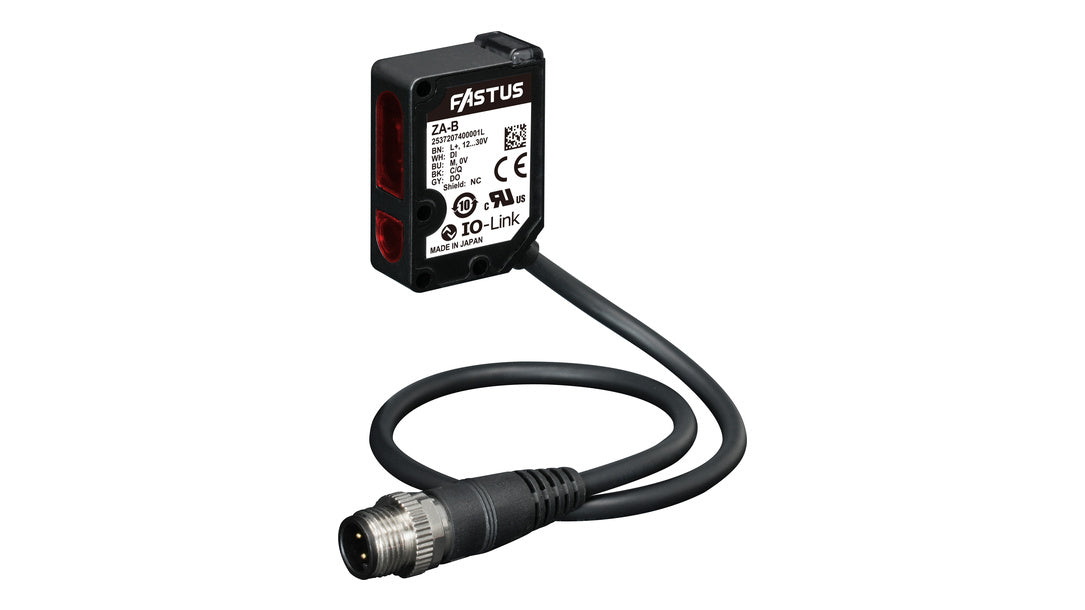

OPTEX FA ZA-BL60M | CMOS Laser Sensor with Background Suppression | 30-60 mm, 1 Output, M12 Pigtail
OPTEX FA ZA-BL60M | CMOS Laser Sensor with Background Suppression | 30-60 mm, 1 Output, M12 Pigtail
OPTEX FA ZA-BL1000D | CMOS Laser Sensor with Background Suppression | 50-1,000 mm, 2 Outputs, 2 m Cable
OPTEX FA ZA-BL1000D | CMOS Laser Sensor with Background Suppression | 50-1,000 mm, 2 Outputs, 2 m Cable

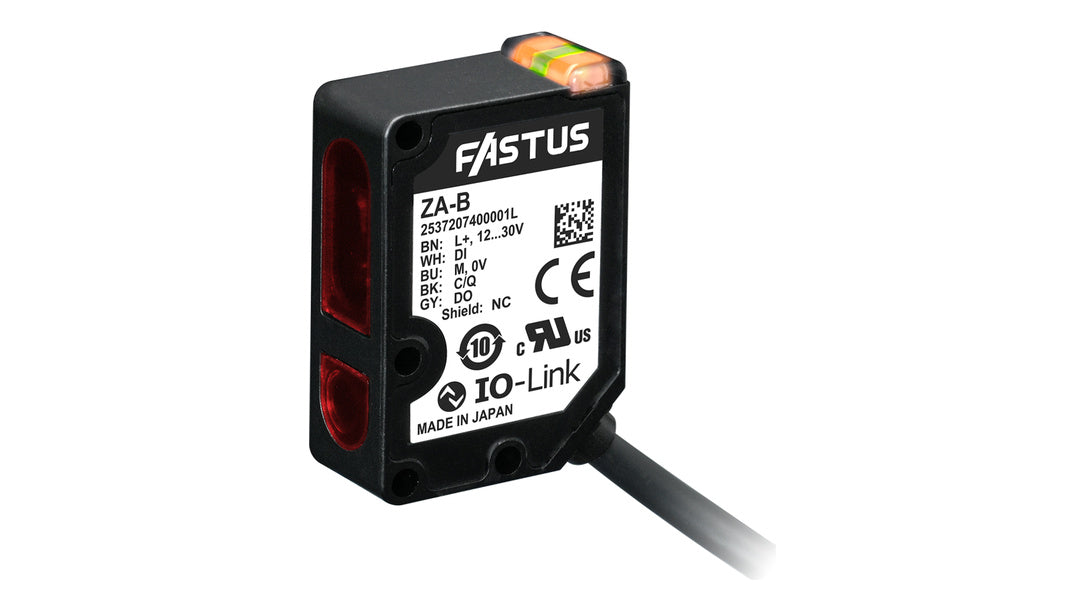

OPTEX FA ZA-BL1000 | CMOS Laser Sensor with Background Suppression | 50-1,000 mm, 1 Output, 2 m Cable
