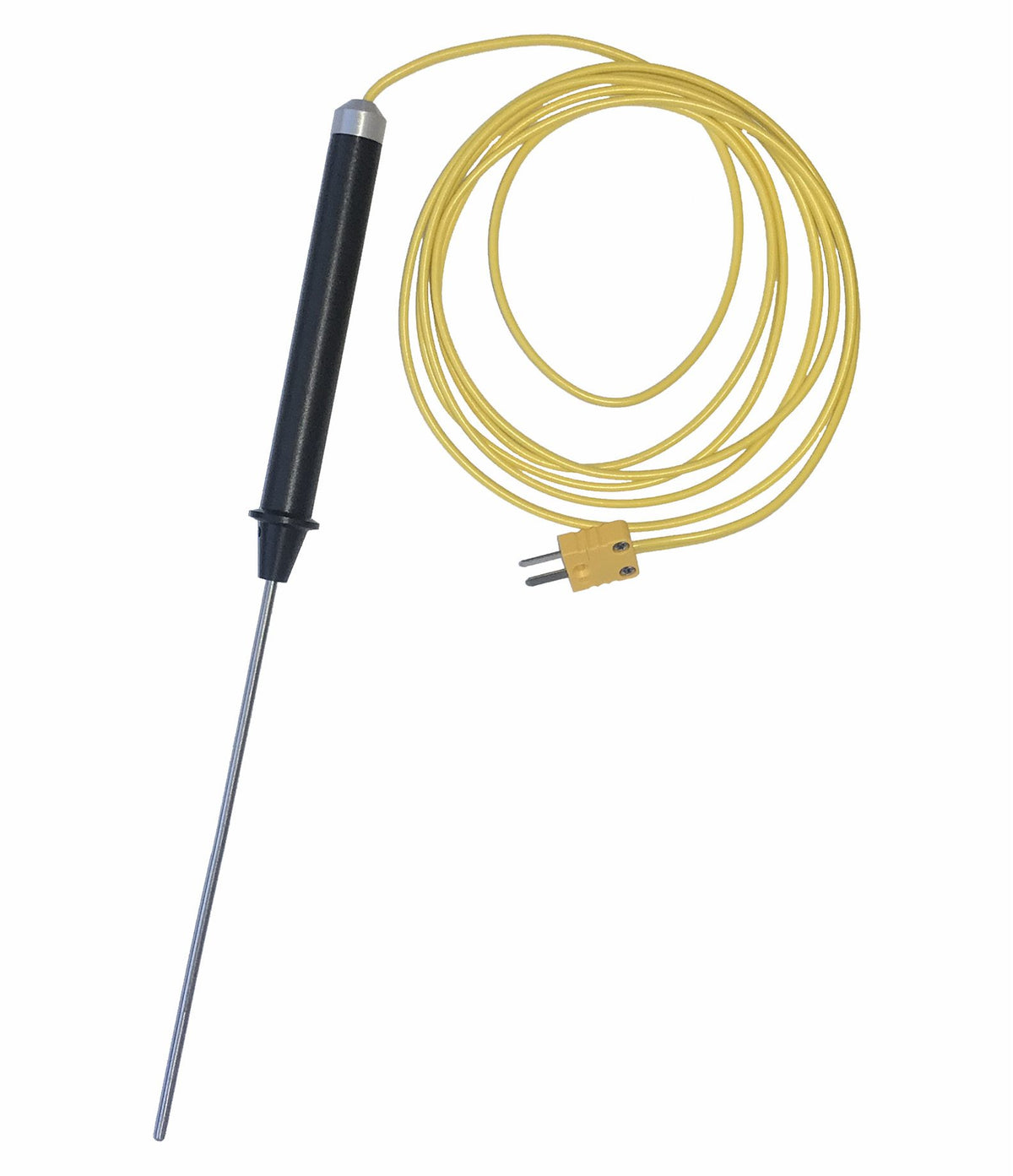

Palmer Wahl TC801P | Type K Solder Pot Probe | 6 in Shank, 1600 °F
The TC801P is a Type K immersion probe made to pair with the Palmer Wahl ST2200 Soldering Iron Tester for solder pot measurements. It has a 6 in stainless steel shank, 1/8 in in diameter, with a handle and a Type K ANSI mini-connector plug. The probe is rated to 1600 °F.
Key features
- Intended for use with the ST2200 Soldering Iron Tester
- 6 in x 1/8 in stainless steel immersion shank
- Fitted with a handle
- 6 second response in boiling water
- Temperature limit 1600 °F
- Specifications
| Part Number | TC801P |
| Brand | Palmer Wahl |
| Sensor | Type K thermocouple |
| Style | Immersion |
| For Use With | ST2200 Soldering Iron Tester |
| Shank Length | 6 in |
| Shank Diameter | 1/8 in |
| Shank Material | Stainless steel |
| Temperature Limit | 1600 °F |
| Response Time | 6 s (boiling water) |
| Handle | Yes |
| Connector | Type K ANSI mini-connector plug |
