Palmer Wahl TC813 | Bolt-On Thermocouple Surface Probe | Type J or K, 1600 °F

Part Number : TC813

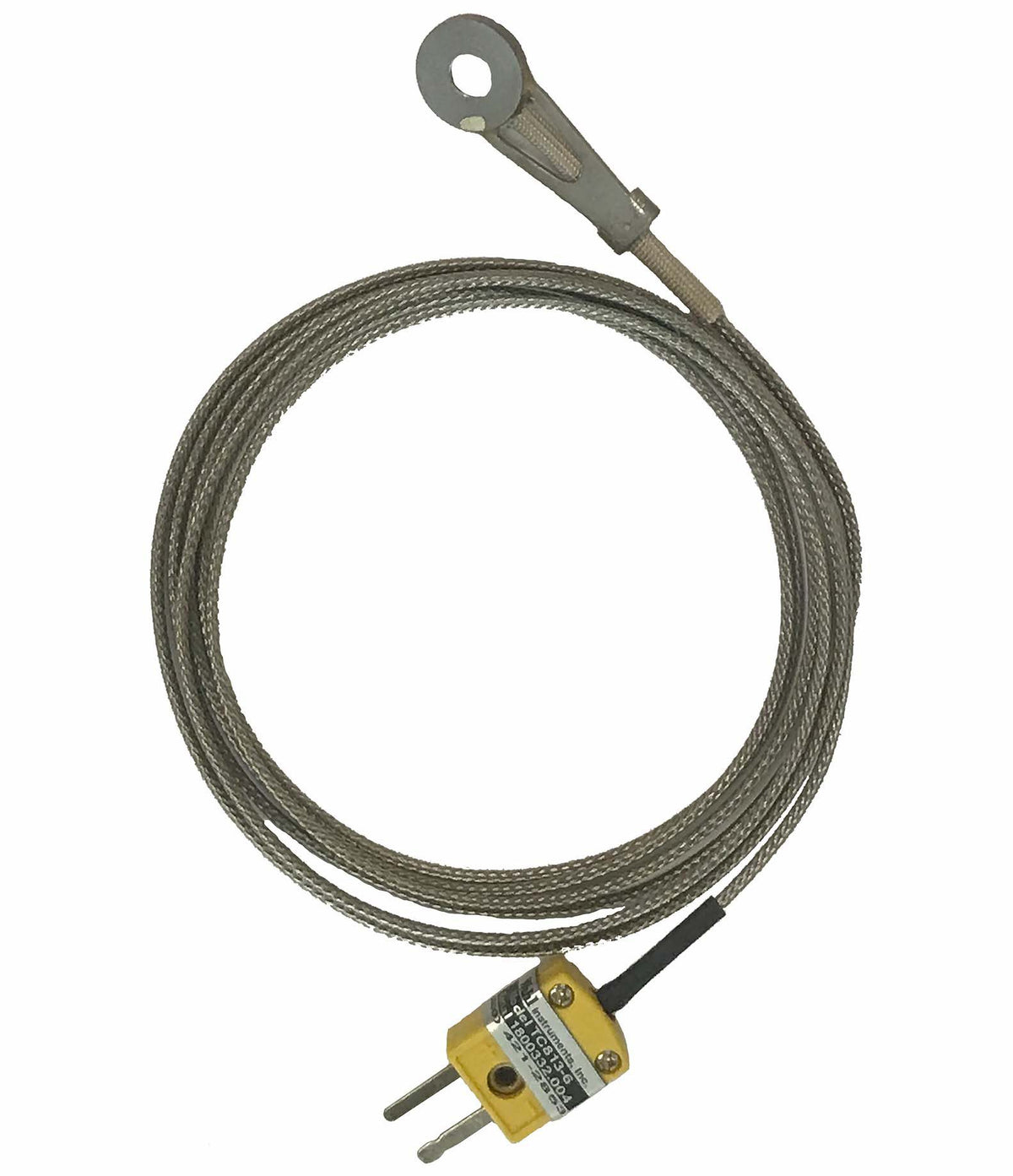

The TC813 from Palmer Wahl is a bolt-on surface probe intended for continuous temperature monitoring. It is offered as a Type J or Type K thermocouple and fixes to the workpiece with a rigid stainless steel washer, 5/8 in in diameter and 1/8 in thick. The probe withstands hazardous environments and temperatures up to 1600 °F.

Key features

Choice of Type J or Type K thermocouple
Bolt-on stainless steel washer attachment, no shank or handle
4 ft overbraided cable as standard; 6 ft cable optional
20 second response on a clean hot plate
Type K ANSI mini-connector plug

Availability: in stock

Specifications

Part Number	TC813
Brand	Palmer Wahl
Sensor	Type J or Type K thermocouple
Style	Surface, bolt-on
Attachment	Stainless steel washer, 5/8 in dia. x 1/8 in thick
Cable	4 ft overbraided (6 ft optional)
Temperature Limit	1600 °F
Response Time	20 s (clean hot plate)
Handle	No
Connector	Type K ANSI mini-connector plug
