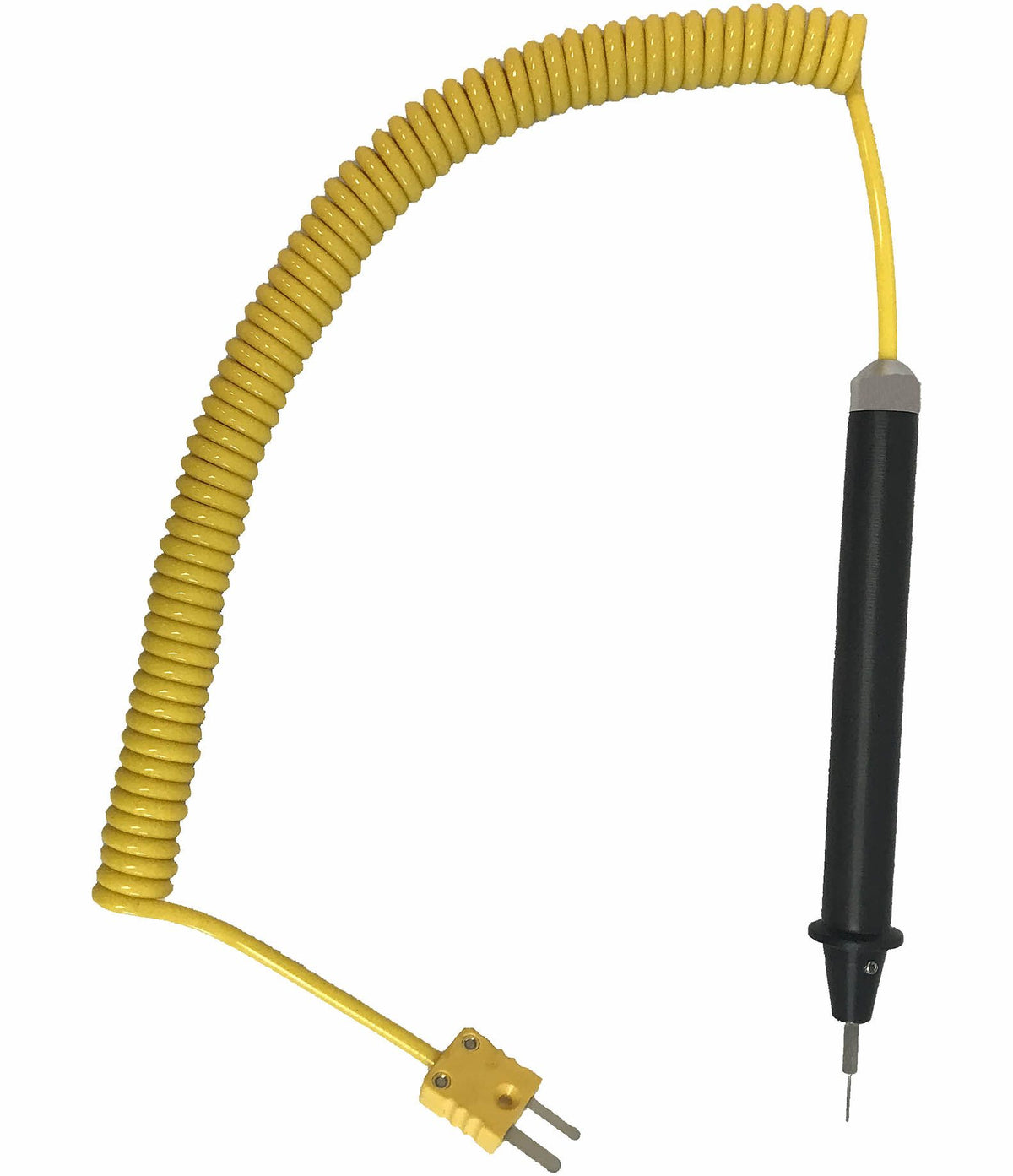

Palmer Wahl TC861 | Type K Pencil-Type Electronic Tip Probe | 0.032 in Shank, 600 °F
The Palmer Wahl TC861 is a Type K probe held like a pencil for measuring the temperature of electronic components. Its very fine stainless steel shank is 0.4375 in long and 0.032 in in diameter. It responds in 2 seconds on a clean hot plate, is rated to 600 °F and uses a Type K ANSI mini-connector plug.
Key features
- Pencil-style handle
- 0.032 in diameter stainless shank, 0.4375 in long
- For electronic components
- 2 second response on a clean hot plate
- Temperature limit 600 °F
- Specifications
| Part Number | TC861 |
| Brand | Palmer Wahl |
| Sensor Type | Type K thermocouple |
| Style | Pencil-type surface |
| Shank Length | 0.4375 in |
| Shank Diameter | 0.032 in |
| Shank Material | Stainless steel |
| Temperature Limit | 600 °F |
| Response Time | 2 s (clean hot plate) |
| Handle | Yes |
| Connector | Type K ANSI mini-connector plug |
