Plastiform CA-F20-8 | F20 Flexible Fluid Replication Compound | 8 x 50 ml Cartridges, 20 Shore A

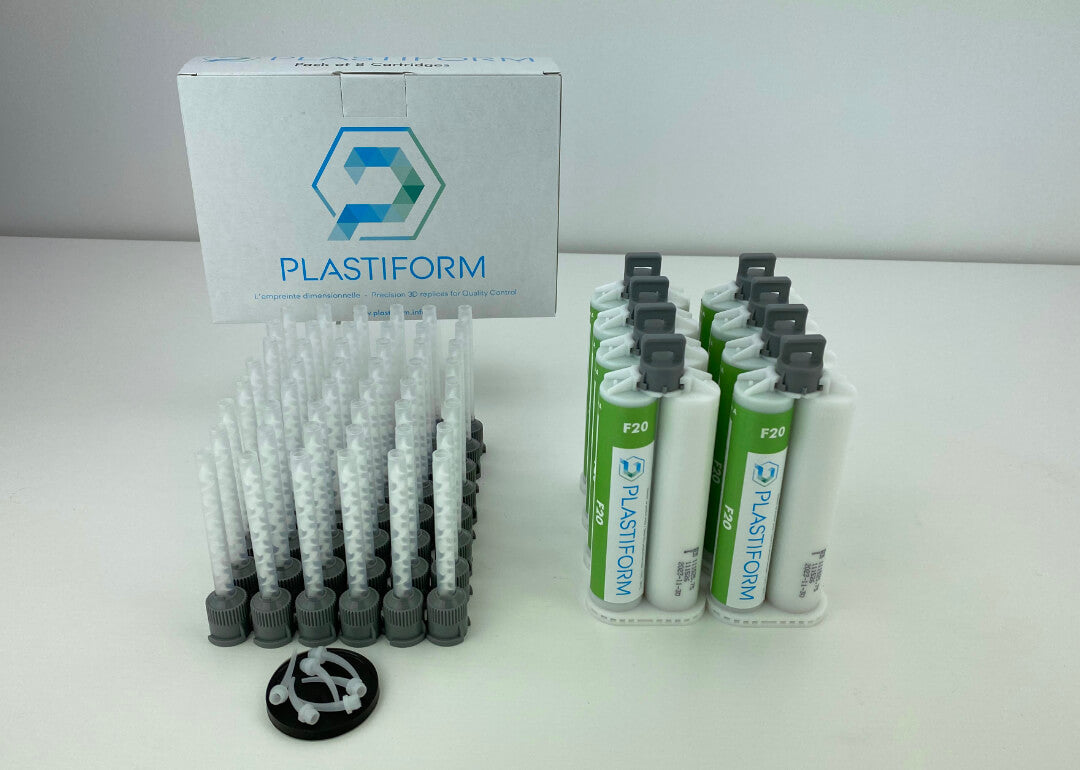

Eight 50 ml F20 cartridges, 48 standard nozzles and 6 nozzle tips make up Plastiform CA-F20-8. The F20 grade is a highly fluid, flexible replication compound; typical uses include internal threads and grooves, and the cured material can also act as a gasket substitute.
Key features
- Reaches features as small as 0.1 mm in diameter
- Sets to a flexible 20 Shore A and stretches on removal
- Shape memory keeps the replica dimensionally accurate
- Reproduces shape, texture and finish to the micron and removes cleanly
- Specifications
- Downloads
| Part Number | CA-F20-8 |
| Brand | Plastiform |
| Compound | F20 |
| Type | Fluid |
| Final State | Flexible |
| Hardness | 20 Shore A |
| Min. Detail Diameter | 0.1 mm |
| Cartridges | 8 x 50 ml |
| Standard Nozzles | 48 |
| Nozzle Tips | 6 |
