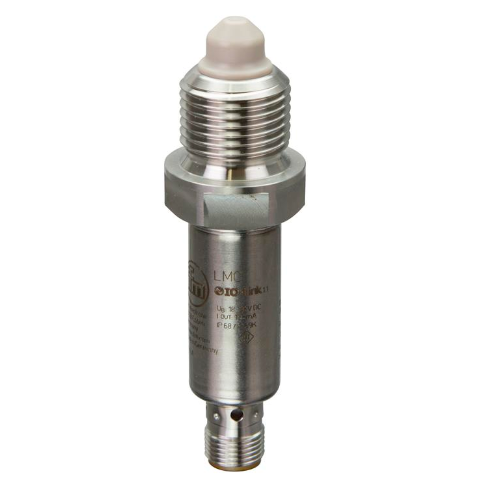

    Point level sensor ifm electronic LMC110
The point level sensor LMC110 from ifm electronic with 2 x NO/NC programmable is suitable for the detection of oil and oil-based media. Thanks to its compact sensor tip, it can be mounted in small diameter pipes. The factory default setting for different types of media makes a comparison unnecessary. Due to the robust stainless steel housing with protection rating IP68/IP69K and laser type label for durable legibility, the sensor meets all the requirements for the machine tool industry. Therefore, the LMC110 point level sensor with M12 connector and process connection G 1/2 A is the perfect solution for tank level monitoring and dry running protection of pumps as well as for level detection on storage tanks.
- Specifications
 - Features
 - Downloads

| Current consumption [mA] | <35 |
| Electrical design | PNP/NPN |
| Operating voltage [V] | 18-30 DC V |
| Output function | normally open / closed; (configurable) |
| Overload protection | yes |
| Protection class | III |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| System | gold-plated contacts |
- For the reliable level control in tanks and containers
 - Two programmable switching outputs, one of them with IO-Link communication interface
 - Preset to oil and oil-based media
 - Simple process connection via screw-in adapter
 - Reliable suppression of deposits or foam
