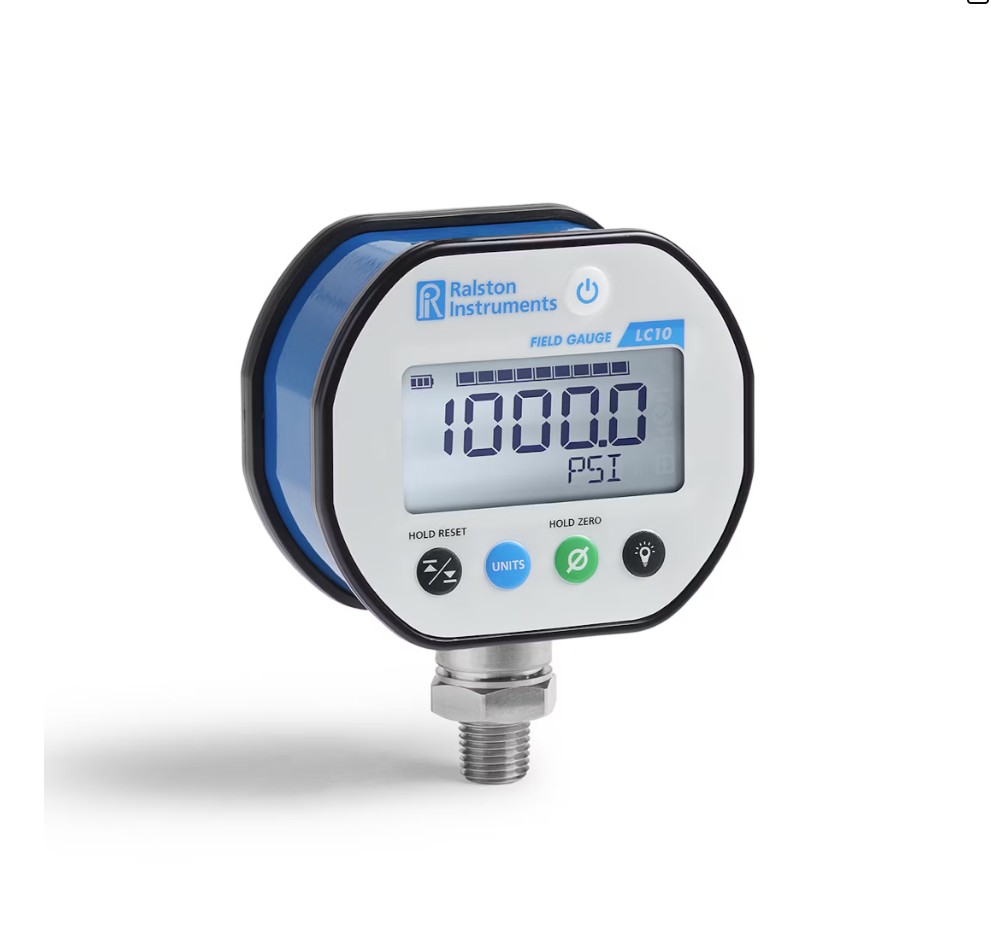

Ralston LC10-VJ2M | Digital vacuum / pressure gauge | -15 to 100 psi (-100kPa to 700 kPa) | 1/4" Male NPT bottom connection
A sturdy instrument, the LC10 measures and shows pressure data on a sizable screen with backlighting. The LC10 can switch between 15 different engineering units, create custom engineering units, and display high and low pressure readings on the screen. Calibration, testing, and real-time pressure viewing are all possible with the integrated PC FieldLab Desktop program.

Free UAE shipping available
- Specifications
- Features
- Downloads
Battery Life | 1500 Hours |
Battery type | AA Alkaline (IEC-LR6) |
Connection | End 1 Connector 1/4" Male NPT (ASME B1.20.1) |
Connection | Process Connection Location Bottom mount |
Display | 2.4 in / 61 mm segmented LCD Display |
Height | 4.1 in / 11 cm |
Length | 1.75 in / 45 mm |
Material | ABS / Polycarbonate Blend, Powder Coated Aluminum |
Maximum operating temperature | 122 °F / 50 °C |
Minimum Operating Temperature | -4 °F / -20 °C |
Protection | IP67 (1 meter water submersion for 30 minutes) |
Relative Humidity | 0% to 90% (-10 to 35°C), 0% to 70% (35 to 50°C) |
Sensor Type | High Precision MEMS |
Technical Data | Sensor A Bottom Sensor Type Pressure Sensor Min Operating Temperature -4 °F / -20 °C Max Storage Temperature 167 °F / 75 °C Process Connection 1/4" Male NPT Wrench Size 23 mm / 7/8 in Measurement Type Gauge Pressure Burst Pressure 400 PSI / 28 bar / 2.80 MPa Max Operating Temperature 122 °F / 50 °C Max Vacuum 30 InHg / 101.6 kPa Min Storage Temperature -40 °F / -40 °C Max Pressure 100 PSI / 7 bar / 700 kPa |
Weight | 12.6 oz / 355 grams |
Width | 3.4 in / 87 mm |
Included Items
USB-A to Micro USB-B cable, 2m long
D-000040
