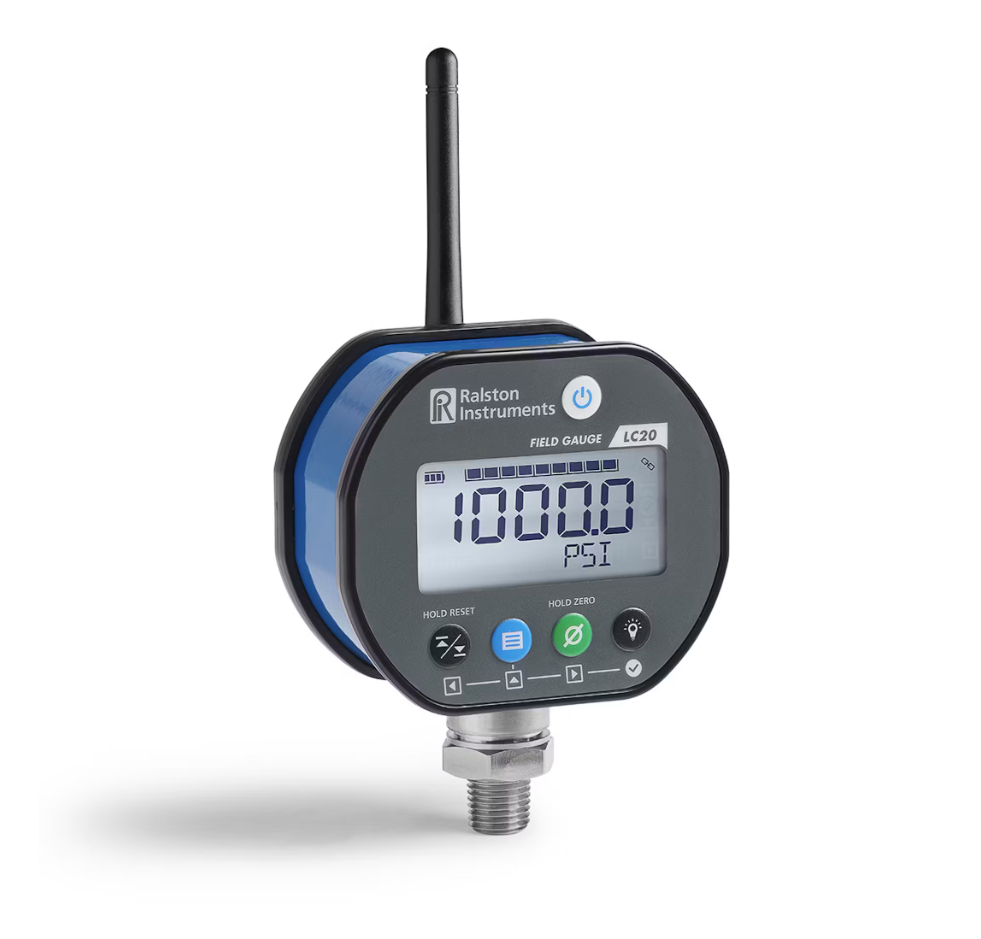

Ralston LC20-GZ2H-00-B1 | Digital Pressure Gauge | 30,000 psi / 200 MPa | 1/4" Female High Pressure bottom connection | Bluetooth radio

Name: Ralston LC20-GZ2H-00-B1 | Digital Pressure Gauge | 30,000 psi / 200 MPa | 1/4" Female High Pressure bottom connection | Bluetooth radio
Brand: Ralston
SKU: LC20-GZ2H-00-B1
Availability: OutOfStock

Part Number : LC20-GZ2H-00-B1

The LC20 is a sturdy instrument that measures pressure and shows the results on a sizable screen with backlighting. The LC20 can switch between 15 different engineering units, create custom engineering units, and display high and low pressure readings on the LCD. Calibration, testing, and real-time pressure viewing are all possible with the integrated PC FieldLab Desktop program.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Battery Life	1000 Hours
Battery type	AA Alkaline (IEC-LR6)
Connection	End 1 Connector 1/4" Male NPT (ASME B1.20.1) End 2 Connector 9/16-18 (1/4" HF4) Female High Pressure
Connection	Process Connection Location Bottom mount
Display	2.4 in / 61 mm segmented LCD Display
Height	4.1 in / 11 cm
Length	1.75 in / 45 mm
Material	ABS / Polycarbonate Blend, Powder Coated Aluminum
Maximum operating temperature	122 °F / 50 °C
Minimum Operating Temperature	-4 °F / -20 °C
Protection	IP67 (1 meter water submersion for 30 minutes)
Technical Data	Sensor A Bottom Max Storage Temperature 167 °F / 75 °C Min Storage Temperature -40 °F / -40 °C Burst Pressure 120000 PSI / 8275 bar / 830 MPa Max Operating Temperature 122 °F / 50 °C Min Operating Temperature -4 °F / -20 °C Wrench Size 7/8 In / 23 mm Measurement Type Gauge Pressure Max Pressure 30000 PSI / 2070 bar / 205 MPa Wetted Materials 17-4 Stainless Steel Materials Stainless Steel Sensor Type Pressure Sensor Process Connection 9/16-20 Female High Pressure (1/"4 HP) Max Vacuum 0 InHg / 0.0 kPa
Weight	12.6 oz / 355 grams
Width	3.4 in / 87 mm

Included Items

USB-A to Micro USB-B cable, 2m long

D-000040

Tilt Antenna for LC20 and LC30 devices with Bluetooth Radios

D-000041
