Ralston LC30-GB2M-00-00 | Digital panel mount pressure gauge | 5 psi / 35 kPa | 1/4" Male NPT back connection

Name: Ralston LC30-GB2M-00-00 | Digital panel mount pressure gauge | 5 psi / 35 kPa | 1/4" Male NPT back connection
Brand: Ralston
SKU: LC30-GB2M-00-00
Availability: OutOfStock

Part Number : LC30-GB2M-00-00

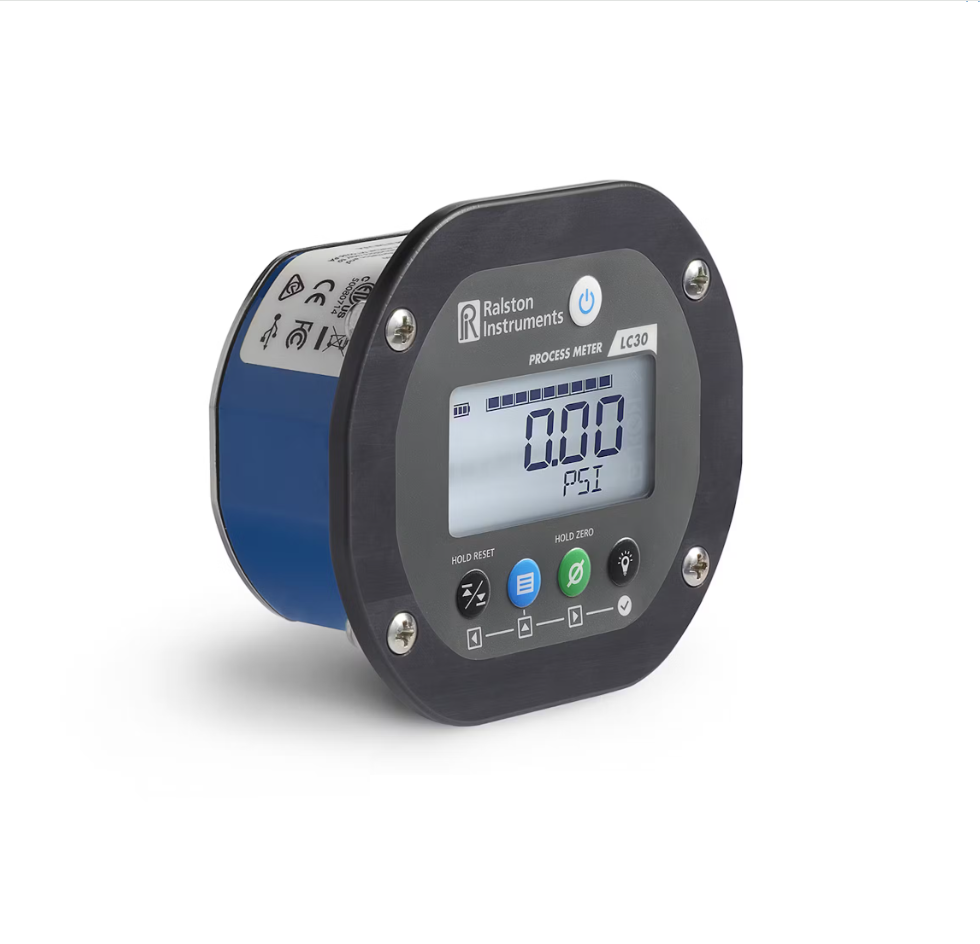

A sturdy instrument, the LC30 measures and shows pressure data on a sizable screen with backlighting. It has a battery backup and is AC powered. The LC30 can switch between 15 different engineering units, create custom engineering units, and display high and low pressure readings on the LCD. Calibration, testing, and pressure logging can be done with the supplied PC FieldLab Desktop software.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Battery Life	1000 Hours
Battery type	AAA Alkaline (IEC-LR03)
Connection	End 1 Connector 1/4" Male NPT (ASME B1.20.1)
Connection	Process Connection 1/4" Male NPT (ASME B1.20.1)
Display	2.4 in / 61 mm segmented LCD Display
Height	4.1 in / 11 cm
Length	1.75 in / 45 mm
Material	ABS / Polycarbonate Blend, Powder Coated Aluminum
Maximum operating temperature	122 °F / 50 °C
Minimum Operating Temperature	-4 °F / -20 °C
Power	90-264 VAC, 50-60 Hz
Protection	IP67 (1 meter water submersion for 30 minutes)
Relative Humidity	0% to 90% (-10 to 35°C), 0% to 70% (35 to 50°C)
Technical Data	Sensor A Back Wrench Size 7/8 In / 23 mm Burst Pressure 20 PSI / 1.4 bar / 140 kPa Measurement Type Gauge Pressure Sensor Type Pressure Sensor Max Operating Temperature 122 °F / 50 °C Min Operating Temperature -4 °F / -20 °C Process Connection 1/4" Male NPT Max Pressure 5 PSI / 34 mbar / 30 kPa Wetted Materials 316 Stainless Steel Max Vacuum 0 InHg / 0.0 kPa
Weight	12.6 oz / 355 grams
Width	3.4 in / 87 mm

Included Items

USB-A to Micro USB-B cable, 2m long

D-000040

AC-DC Adapter for LC Gauges, USB type A, 5 country plugs

D-000410
