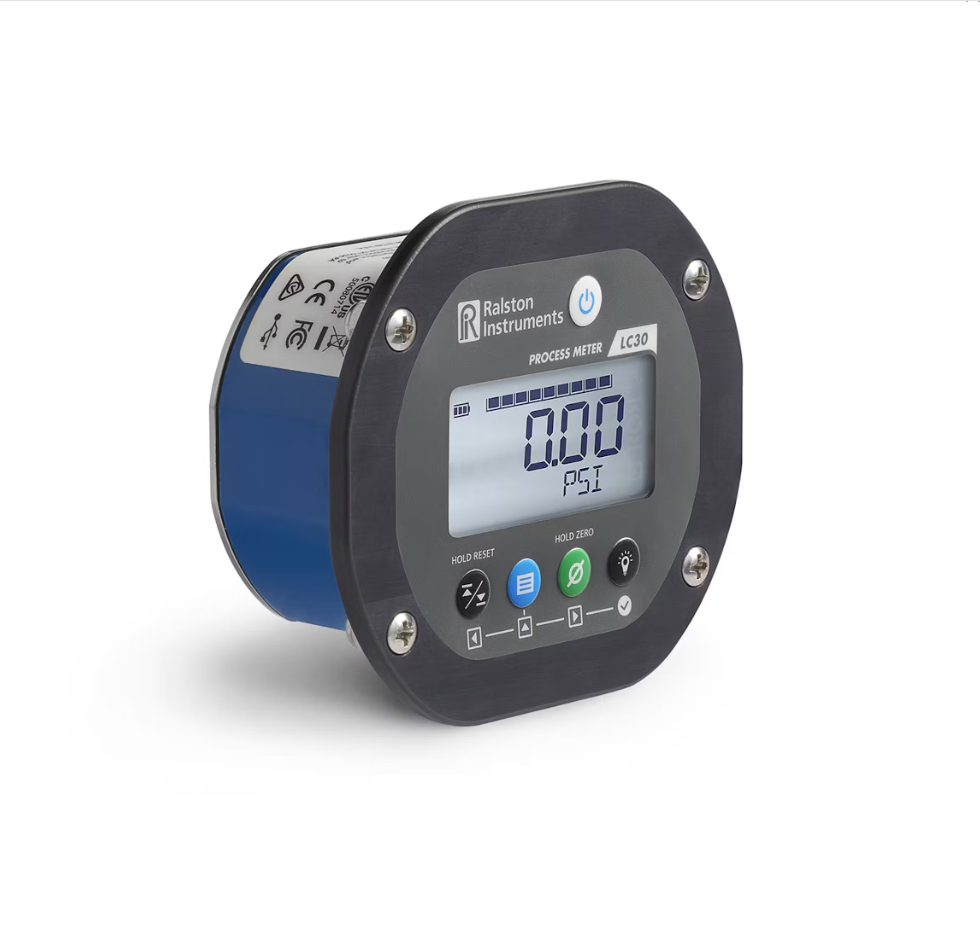

Ralston LC30-GP2M-00-B1 | Digital panel mount pressure gauge | 1000 psi / 7 MPa | 1/4" Male NPT back connection | Bluetooth radio
A sturdy instrument, the LC30 measures and shows pressure data on a sizable screen with backlighting. It has a battery backup and is AC powered. The LC30 can switch between 15 different engineering units, create custom engineering units, and display high and low pressure readings on the LCD. Calibration, testing, and pressure logging can be done with the supplied PC FieldLab Desktop software.

Free UAE shipping available
- Specifications
- Features
- Downloads
Battery Life | 1000 Hours |
Battery type | AAA Alkaline (IEC-LR03) |
Connection | End 1 Connector 1/4" Male NPT (ASME B1.20.1) |
Connection | Process Connection Location Back mount |
Display | 2.4 in / 61 mm segmented LCD Display |
Height | 4.1 in / 11 cm |
Length | 1.75 in / 45 mm |
Material | ABS / Polycarbonate Blend, Powder Coated Aluminum |
Maximum operating temperature | 122 °F / 50 °C |
Minimum Operating Temperature | -4 °F / -20 °C |
Power | 90-264 VAC, 50-60 Hz |
Protection | IP67 (1 meter water submersion for 30 minutes) |
Relative Humidity | 0% to 90% (-10 to 35°C), 0% to 70% (35 to 50°C) |
Technical Data | Sensor A Back Sensor Type Pressure Sensor Wrench Size 23 mm / 7/8 in Max Storage Temperature 167 °F / 75 °C Min Storage Temperature -40 °F / -40 °C Measurement Type Gauge Pressure Max Pressure 1000 PSI / 70 bar / 7.00 MPa Wetted Materials 316 Stainless Steel Burst Pressure 4000 PSI / 275 bar / 28 MPa Max Operating Temperature 122 °F / 50 °C Min Operating Temperature -4 °F / -20 °C Process Connection 1/4" Male NPT Max Vacuum 0 InHg / 0.0 kPa |
Weight | 12.6 oz / 355 grams |
Width | 3.4 in / 87 mm |
Included Items
USB-A to Micro USB-B cable, 2m long
D-000040
AC-DC Adapter for LC Gauges, USB type A, 5 country plugs
D-000410
Tilt Antenna for LC20 and LC30 devices with Bluetooth Radios
D-000041
