Ralston LC30-VL2M-00-00 | Digital panel mount pressure gauge | -15 to 300 psi / -100 kPa to 2 MPa | 1/4" Male NPT back connection

Name: Ralston LC30-VL2M-00-00 | Digital panel mount pressure gauge | -15 to 300 psi / -100 kPa to 2 MPa | 1/4" Male NPT back connection
Brand: Ralston
SKU: LC30-VL2M-00-00
Availability: OutOfStock

Part Number : LC30-VL2M-00-00

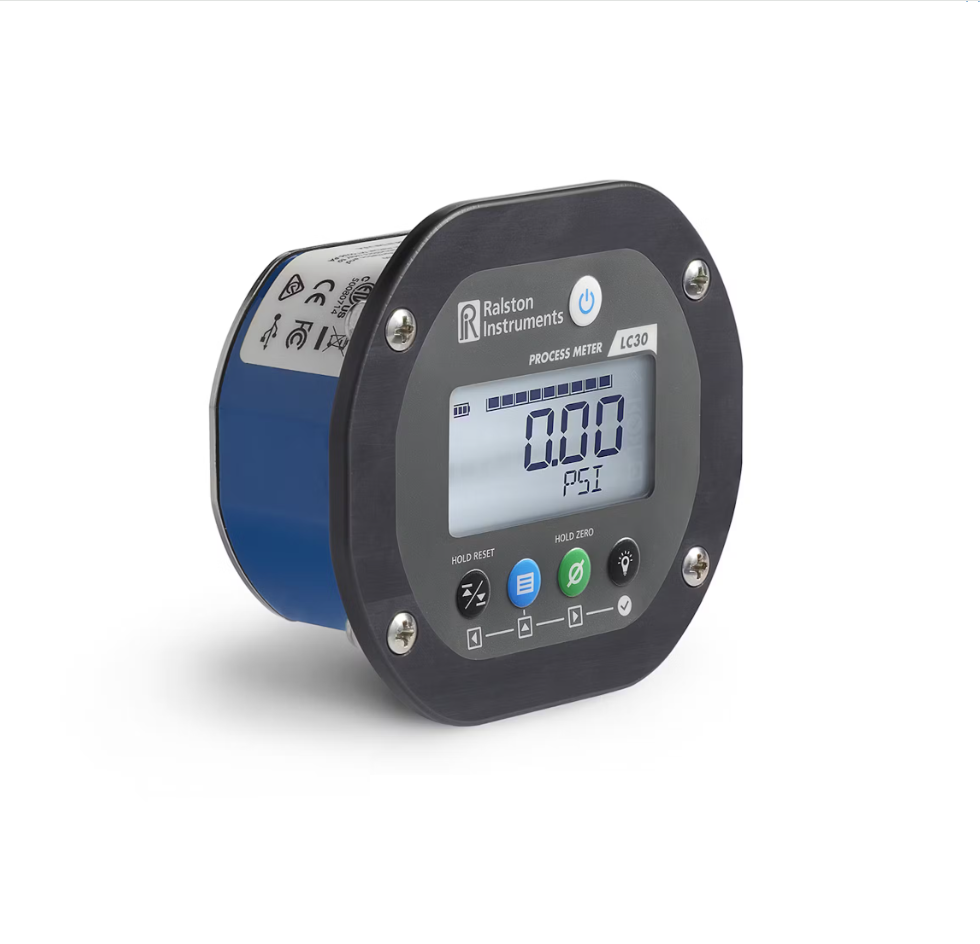

A sturdy instrument, the LC30 measures and shows pressure data on a sizable screen with backlighting. It has a battery backup and is AC powered. The LC30 can switch between 15 different engineering units, create custom engineering units, and display high and low pressure readings on the LCD. Calibration, testing, and pressure logging can be done with the supplied PC FieldLab Desktop software.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Battery Life	1000 Hours
Battery type	AAA Alkaline (IEC-LR03)
Connection	End 1 Connector 1/4" Male NPT (ASME B1.20.1)
Connection	Process Connection Location Back mount
Display	2.4 in / 61 mm segmented LCD Display
Height	4.1 in / 11 cm
Length	1.75 in / 45 mm
Material	ABS / Polycarbonate Blend, Powder Coated Aluminum
Maximum operating temperature	122 °F / 50 °C
Minimum Operating Temperature	-4 °F / -20 °C
Protection	IP67 (1 meter water submersion for 30 minutes)
Relative Humidity	0% to 90% (-10 to 35°C), 0% to 70% (35 to 50°C)
Technical Data	Sensor A Back Wrench Size 23 mm / 7/8 in Process Connection 1/4" Male NPT Min Operating Temperature -4 °F / -20 °C Sensor Type Pressure Sensor Max Storage Temperature 167 °F / 75 °C Max Pressure 300 PSI / 20 bar / 2.00 MPa Max Vacuum 30 InHg / 101.6 kPa Measurement Type Gauge Pressure Burst Pressure 1200 PSI / 83 bar / 8.30 MPa Max Operating Temperature 122 °F / 50 °C Min Storage Temperature -40 °F / -40 °C
Weight	12.6 oz / 355 grams
Width	3.4 in / 87 mm

Included Items

USB-A to Micro USB-B cable, 2m long

D-000040

AC-DC Adapter for LC Gauges, USB type A, 5 country plugs

D-000410
