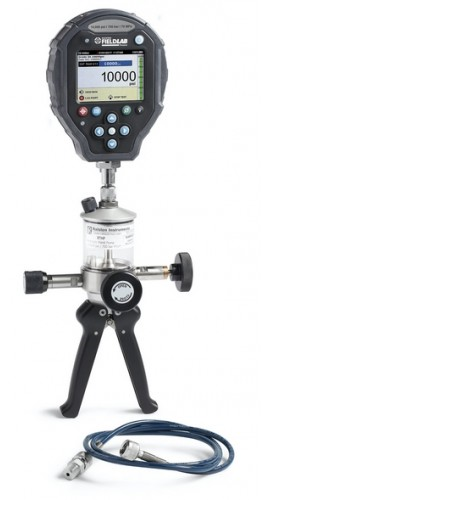

Ralston XTHP-10KPSIG-FL | Hydraulic Hand Pump | Range 10,000 psi | Field Lab

Name: Ralston XTHP-10KPSIG-FL | Hydraulic Hand Pump | Range 10,000 psi | Field Lab
Brand: Ralston
SKU: XTHP-10KPSIG-FL
Availability: OutOfStock

Part Number : XTHP-10KPSIG-FL

A 3' (0.9 m) hose is included with the pressure pump for a dependable connection. Polysulfone, stainless steel, Delrin, and anodized aluminum are the materials used to make the pump.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Battery Life	1,000 hours
Battery type	Other
Height	Pump: 10.6" (27 cm); Pressure reference: 2.5" (64 mm)
Length	Pump: 5.7" (15 cm); Pressure reference: 7.5" (20 cm); Process connection: 1.29" (33 mm); Hose: 3' (0.9 m)
Operating Temperature	Pump: -15 to 140°F (-26 to 60°C); Pressure reference: 14 to 122°F (-10 to 50°C); Process connection: 0 to 225°F (-18 to 105°C); Hose: -40 to 140°F (-40 to 60°C)
Outputs	Male quick-test XT (pump)
Power Source	Hydraulic
Power	Power Requirements 90 to 264 VAC, 50 to 60 Hz (Pressure reference)
Pressure Range	10,000 psi; Burst pressure: 40,000 psi (pump, hose and pressure reference)
Resolution	Adjustment Resolution 0.01 psi
Seals	Teflon, Viton (pump, pressure reference and process connection)
Weight	Pump: 3.12 lbs (1.41 kg); Pressure reference: 2.56 lbs (1.16 kg)
Width	Pump: 7.5" (20 cm); Pressure reference: 5" (13 cm); Process connection: 0.63" (17 mm)

A robust hand pump is made of stainless steel, polysulfone, Delrin, and anodized aluminum.
Alcohol, antifreeze, ethylene glycol, hydraulic oil, mineral oil, petroleum-based oil, windshield washer fluid, transmission fluid, light motor oil, and Ralston calibration oil are just a few of the media that the pump may work with.
For durability, the hose is composed of stainless steel and reinforced polyamide.
Air, inert gas, natural gas, petroleum-based oil, and water can all be used with hoses.
Pressure Reference offers two million onboard data monitoring points.
Atm, bar, cmH₂O at 39.2°F (4°C), inH₂O at 102.2°F (39°C), kPa, MPa, mbar, psi, inHg at 39°F (3.9°C), kgf/cm⊃2, mmHg at 32°F (0°C), Torr, ftH₂O at 39°F (3.9°C), cmHg at 32°F (0°C), and oz/in⊃2 are among the several engineering units that are provided by pressure reference.
Made of reinforced polyamide and stainless steel, the pressure reference provides IP67 ingress protection for up to 30 minutes of submersion in 3.3' (1 m) of water.
Air, inert gas, natural gas, petroleum-based oil, and water can all be used with the pressure reference.
For convenient viewing, Pressure Reference provides a 3.5" (8.9 cm) color TFT LCD screen.
