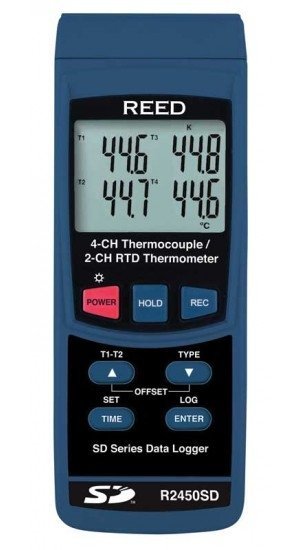

REED R2450SD | Data Logging Thermometer | 4 TC / 2 RTD Channels, SD Card
The REED R2450SD data logging thermometer handles four thermocouple channels or two RTD channels and logs to an SD card (max 16 GB). Readings can be recorded manually (up to 99) or automatically at 1 to 3600 second intervals, creating an Excel file without software.
- Backlit quad LCD with data hold and max/min
- Resolution 0.1 or 1°F/°C
- Power from 6 AA batteries or an optional AC adapter
- Tripod and AC adapter available for continuous multi-channel monitoring
- Weight 0.6 lb (268 g)
- Specifications
- Features
- Downloads
| Part Number | R2450SD |
| Brand | REED |
| Type | 4-Channel Thermocouple, 2-Channel RTD |
| Resolution | 0.1 or 1 °F/°C |
| Dimensions | 7.0 x 2.7 x 1.8" (177 x 68 x 45 mm) |
| Weight | 0.6lbs (268g) |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Display | Quad Display, LCD |
| Backlit Display | Yes |
| Data Output | Yes |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Operating Humidity Range | Less than 85% RH |
| Storage Temperature | 14 to 140 °F (-10 to 60 °C) |
| Response Time | 1x/second |
- Displays up to 4 separate measurements simultaneously
- Accepts Type K, J , R, S, E, T thermocouples and RTD probes
- Temperature differential (T1-T2), Max/Min and Data hold functions
- User selectable °C, °F
- Real-time data logger with integrated SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
