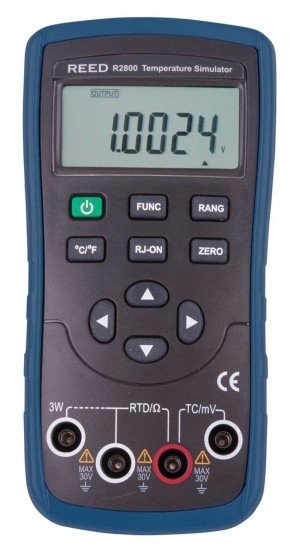

REED R2800 | Temperature Simulator | 8 TC and 7 RTD Types

Name: REED R2800 | Temperature Simulator | 8 TC and 7 RTD Types
Brand: REED Instruments
Price: 250.00 AED
Availability: InStock

The REED R2800 simulates temperatures for 8 thermocouple types (R, S, B, E, K, J, T, N) and 7 RTD types by generating and converting an electrical signal. It can also source volts and ohms.

RTD types Pt10, Pt100, Pt200, Pt500, Pt1000 (385), Cu10 and Cu50
Basic accuracy 0.05%
Internal cold junction compensation
6-digit LCD, zero button and °F/°C selection
Auto shut-off and low battery indicator
2 AA batteries; CE marked

Availability: low stock

Free UAE shipping available

Calibration service

Calibration service ensures the accuracy and reliability of measuring instruments and systems by comparing their measurements against known standards.

Specifications
Features
Downloads

Brand	REED
Model	R2800
Display	6-Digit LCD
Operating Humidity Range	0 to 85%
Operating Temperature	32 to 122°F (0 to 50°C)
Power Supply	2 "AA" Batteries
Thermocouple Types	R, S, B, E, K, J, T, N
RTD Types	Pt10, Pt100, Pt200, Pt500, Pt1000 (385), Cu10, Cu50
Basic Accuracy	0.05%
Dimensions	7.1 x 3.5 x 1.9" (180 x 90 x 47mm)
Product Certifications	CE
Storage Temperature	14 to 122°F (-10 to 50°C)
Weight	8.2oz (500g)

Source R, S, B, E, K, J, T, N thermocouple kinds; and Pt 10 (385), Pt100 (385), Pt200 (385), Pt500 (385), Pt1000 (385), Cu10, Cu50 RTD types; plus volts and ohms
A basic precision of 0.05 percent is required.
Internal compensation for cold junctions
6-digit LCD panel with easy-to-read characters
a button to adjust to zero
Unit of measurement (°F/°C) is selected by the user.
Auto-shutoff and low-battery indicator
