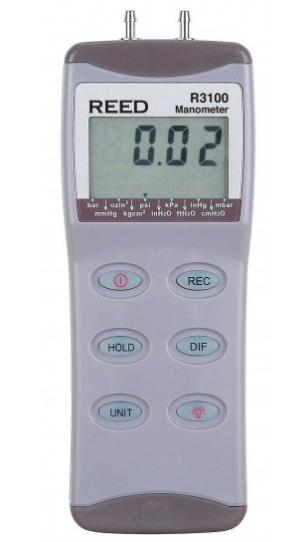

REED R3100 | Digital Differential Pressure Manometer | 100 psi, 11 Units

Name: REED R3100 | Digital Differential Pressure Manometer | 100 psi, 11 Units
Brand: REED Instruments
SKU: R3100
Availability: InStock

Part Number : R3100

For pressures up to 100 psi, the REED R3100 digital manometer gives gauge or differential readings and can display them in 11 different units.

Dual 4-digit LCD with backlight
Max/min values held in internal memory
Powered by a 9V battery
Auto power-off after 20 minutes
CE marked; 7.8 oz (220 g)

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	R3100
Brand	REED
Display	4-digit, Dual LCD Display
Operating Temperature	32 to 122°F (0 to 50°C)
Power Supply	9V battery
Pressure Range	100 psi
Units	11
Auto shut-off	Yes (after 20 mins)
Dimensions	7.2 x 2.8 x 1.2
Product Certifications	CE
Storage Temperature	14 to 140°F (-10 to 60°C)
Weight	7.8 oz (220g)

Measures gauge and differential pressure up to 100psi
11 selectable units of measure: psi, inH₂O, bar, mbar, kPa, inHg, mmHg, ozin², ftH₂O, cmH₂O, kgcm²
Displays pressure and real-time clock simultaneously
Easy-to-read backlit LCD display
Internal memory saves Max and Min measurements
Data hold function
Low battery indicator and auto shut off
