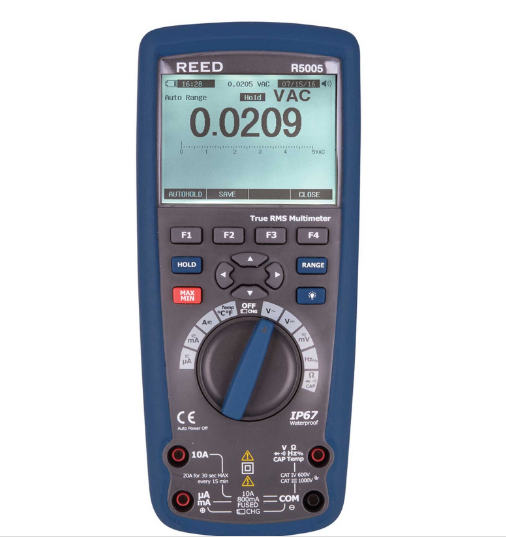

REED R5005 | True RMS Industrial Multimeter with Bluetooth | 50,000 Count, IP67
The REED R5005 is a waterproof, IP67-rated True RMS industrial multimeter with Bluetooth and a 50,000-count LCD with analogue bargraph. It measures AC/DC voltage and current, resistance, capacitance, frequency and temperature, logs data and can read multiple AC/DC signals at once.
- Temperature range -58 to 1832°F (-50 to 1000°C)
- Backlit display, display hold and max/min
- Rechargeable Li-ion battery
- Automatic shut-off after 15 minutes
- Weight 22 oz (631 g)
- Storage range -4 to 140°F (-20 to 60°C); operating 32 to 122°F (0 to 50°C)
- Specifications
- Features
- Downloads
| Part Number | R5005 |
| Brand | REED |
| Backlit Display | Yes |
| Display Hold | Yes |
| Display | 50,000 count LCD display |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Power Supply | Li-ion Rechargeable Battery |
| Temperature Range | -58 to 1832°F (-50 to 1000°C) |
| Connectivity | Bluetooth |
| Auto shut-off | Yes (after 15 minutes) |
| Max/Min | Yes |
| Dimensions | 8.7 x 3.8 x 2.4 |
| Product Certifications | CE, IP67 |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
- Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
- Measure voltage and current simultaneously on a backlit LCD
- Record data and and review trends with included software
- Relative, Peak, Min/Max and data hold functions
- Wireless Bluetooth Connectivity
- Waterproof (IP67) double molded plastic housing
- Cat. IV 600V, Cat. III 1000V safety rating
